6. Programmer's Reference

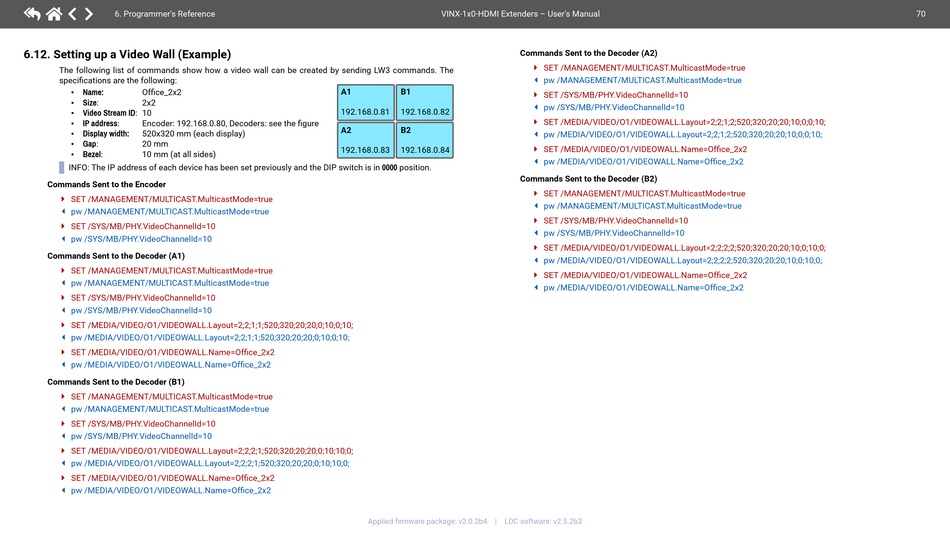

6.12. Setting up a Video Wall (Example)

ThefollowinglistofcommandsshowhowavideowallcanbecreatedbysendingLW3commands.The
specificationsarethefollowing:
▪ Office_2x2
Name:
2x2
▪ Size:
▪ Video Stream ID: 10
▪ Encoder:192.168.0.80,Decoders:seethefigure
IP address:
520x320mm(eachdisplay)
▪ Display width:
▪ Gap: 20 mm
▪ 10 mm (at all sides)
Bezel:

INFO: The IP address of each device has been set previously and the DIP switch is in 0000 position.
Commands Sent to the Encoder
ç SET/MANAGEMENT/MULTICAST.MulticastMode=true
æ pw/MANAGEMENT/MULTICAST.MulticastMode=true
ç SET/SYS/MB/PHY.VideoChannelId=10
æ pw/SYS/MB/PHY.VideoChannelId=10
Commands Sent to the Decoder (A1)
ç SET/MANAGEMENT/MULTICAST.MulticastMode=true
æ pw/MANAGEMENT/MULTICAST.MulticastMode=true
ç SET/SYS/MB/PHY.VideoChannelId=10
æ pw/SYS/MB/PHY.VideoChannelId=10
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;1;520;320;20;20;0;10;0;10;
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;1;520;320;20;20;0;10;0;10;
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
Commands Sent to the Decoder (B1)
ç SET/MANAGEMENT/MULTICAST.MulticastMode=true
æ pw/MANAGEMENT/MULTICAST.MulticastMode=true
ç SET/SYS/MB/PHY.VideoChannelId=10
æ pw/SYS/MB/PHY.VideoChannelId=10
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;2;1;520;320;20;20;0;10;10;0;
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;2;1;520;320;20;20;0;10;10;0;
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
VINX-1x0-HDMI Extenders – User's Manual
A1 B1
192.168.0.81 192.168.0.82
A2 B2
192.168.0.83 192.168.0.84
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
Commands Sent to the Decoder (A2)
ç SET/MANAGEMENT/MULTICAST.MulticastMode=true
æ pw/MANAGEMENT/MULTICAST.MulticastMode=true
ç SET/SYS/MB/PHY.VideoChannelId=10
æ pw/SYS/MB/PHY.VideoChannelId=10
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;2;520;320;20;20;10;0;0;10;
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;2;520;320;20;20;10;0;0;10;
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
Commands Sent to the Decoder (B2)
ç SET/MANAGEMENT/MULTICAST.MulticastMode=true
æ pw/MANAGEMENT/MULTICAST.MulticastMode=true
ç SET/SYS/MB/PHY.VideoChannelId=10
æ pw/SYS/MB/PHY.VideoChannelId=10
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;2;2;520;320;20;20;10;0;10;0;
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;2;2;520;320;20;20;10;0;10;0;
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
