5.9.2. Decoder-related Settings

OSD Settings (the On-Screen Display Feature)
Certainsystemmessagescanbedisplayedontheconnectedscreen;thefollowingaredefined:
▪ Enable OSD: set it to 'ON' state to enable the OSD feature.
▪ HDCP messages: 'HDCP failed'
USB messages: 'Requesting USB', 'Starting USB', 'Stopping USB'
▪
▪ Video quality messages: 'Graphics mode', 'Movie mode'
▪ Dither messages: reserved
Other messages: reserved
▪
Press the Apply changes button and restart to save the new settings.
Keyboard Shortcuts
A keyboard connected to the USB 1.1 port of a Decoder can be used to change the assigned Encoder to
another one. Thus, the input source of a Decoder can be changed quickly and easily.
INFO:
The Video Stream ID of the Decoder is changed when a command is executed.
The shortcut can be set:
▪ to select a certain stream directly, or
▪ toselectthenext/previousstreaminthelist.
Setting (Changing) a Shortcut
Step 1. Open the web page of the desired Decoder and navigate to the Advanced Settings page.
Step 2. Connect an USB keyboard to that computer directly, or through the desired Decoder and the Encoder
(make sure the Encoder is connected to the computer via USB).
Step 3. Place the cursor in the desired Shortcut box.
Step 4. Press the desired key combination; the new setting will be displayed and stored.
Executing a Command (Calling a Shortcut)
Connect the keyboard to an USB 1.1 port (not the USB 2.0!) of the desired Decoder. Press the key(s) three times
quickly(within750ms).
Stream ID List #videostreamid #streamid
Youcansetacustomlistofstreams,thus,thePrevious/Nextstreamshortcutswillselectthestreamsinthe
desired order.
Scaler Settings #scaler
The same options as in the Scaler settings
#osd
section.
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMIExtenders–User'sManual

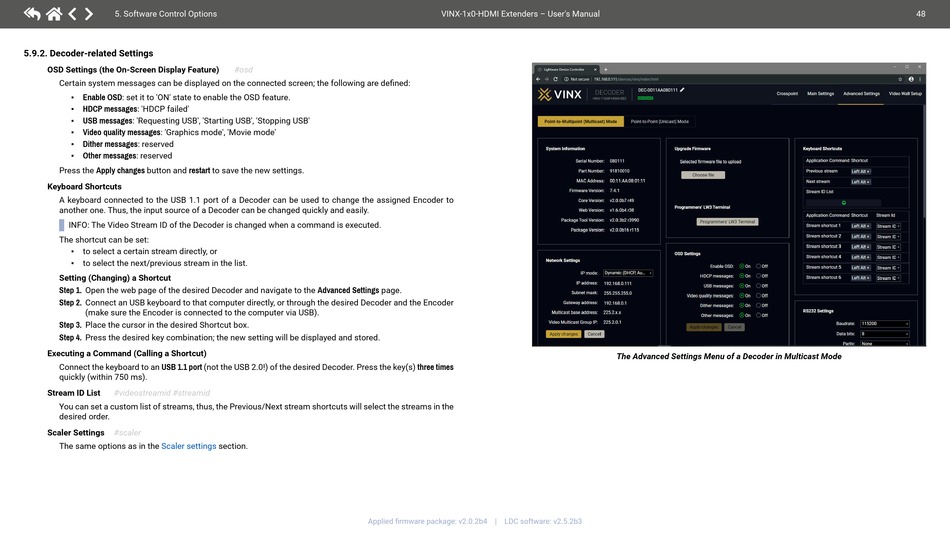

The Advanced Settings Menu of a Decoder in Multicast Mode
