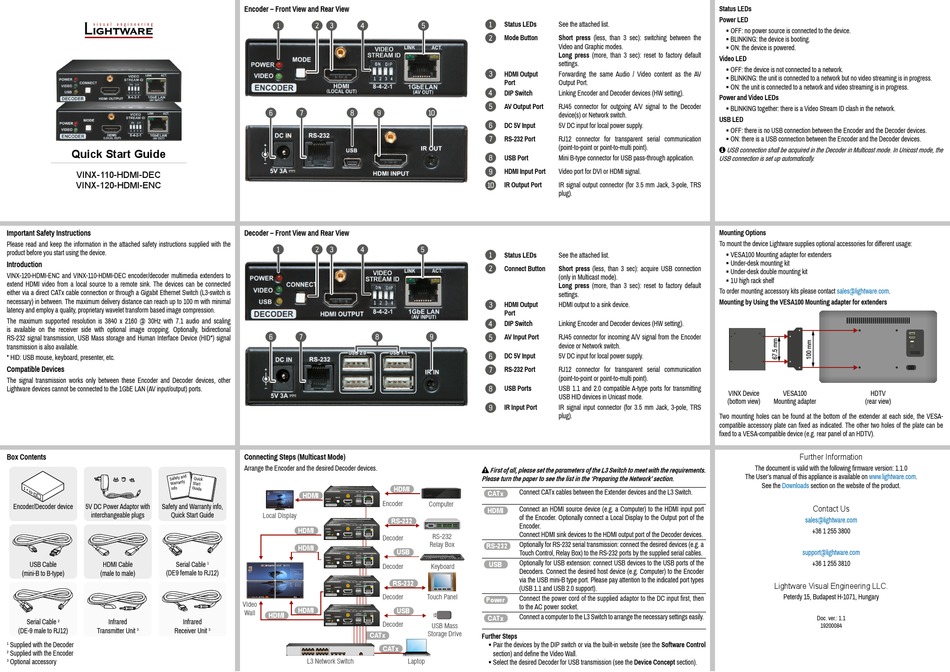

Quick Start Guide

VINX-110-HDMI-DEC
VINX-120-HDMI-ENC
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
VINX-120-HDMI-ENC and VINX-110-HDMI-DEC encoder/decoder multimedia extenders to
extend HDMI video from a local source to a remote sink. The devices can be connected
either via a direct CATx cable connection or through a Gigabit Ethernet Switch (L3-switch is
necessary) in between. The maximum delivery distance can reach up to 100 m with minimal
latency and employ a quality, proprietary wavelet transform based image compression.
The maximum supported resolution is 3840 x 2160 @ 30Hz with 7.1 audio and scaling
is available on the receiver side with optional image cropping. Optionally, bidirectional
RS-232 signal transmission, USB Mass storage and Human Interface Device (HID*) signal
transmission is also available.
* HID: USB mouse, keyboard, presenter, etc.
Compatible Devices
The signal transmission works only between these Encoder and Decoder devices, other
Lightware devices cannot be connected to the 1GbE LAN (AV input/output) ports.
Box Contents
Encoder/Decoder device 5V DC Power Adaptor with Safety and Warranty info,
interchangeable plugs Quick Start Guide
USB Cable HDMI Cable Serial Cable
(mini-B to B-type) (male to male) (DE9 female to RJ12)
Serial Cable 2 Infrared Infrared
(DE-9 male to RJ12) Transmitter Unit Receiver Unit
3
Supplied with the Decoder
1
2 Supplied with the Encoder
3 Optional accessory

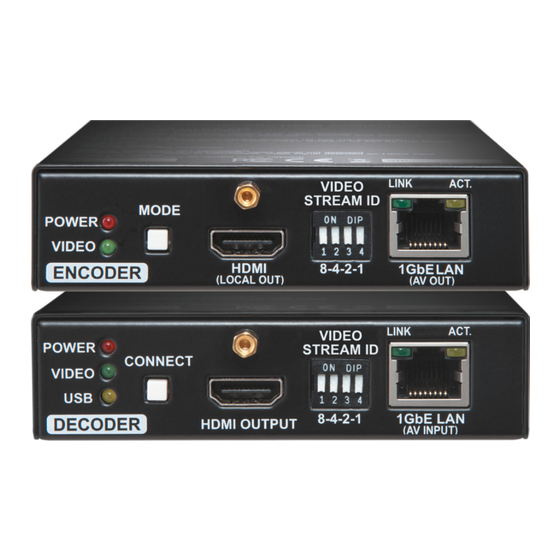

Encoder – Front View and Rear View
1 2 3 4
6 7 8 9
Decoder – Front View and Rear View
1 2 3 4
6 7 8
Connecting Steps (Multicast Mode)
Arrange the Encoder and the desired Decoder devices.
HDMI
VIDEO LINK ACT.
STREAM ID
MODE
POWER ON DIP
Encoder
VIDEO
1 2 3 4
HDMI 8-4-2-1 1GbE LAN
(LOCAL OUT) (AV OUT)
Local Display
HDMI
VIDEO LINK ACT.
POWER STREAM ID
CONNECT
VIDEO ON DIP
USB 1 2 3 4 Decoder
8-4-2-1 1GbE LAN
HDMI OUTPUT
(AV INPUT)
HDMI
VIDEO LINK ACT.
POWER STREAM ID
CONNECT
VIDEO ON DIP
1
USB Decoder
1 2 3 4
HDMI OUTPUT 8-4-2-1 1GbE LAN
(AV INPUT)
VIDEO LINK ACT.
POWER STREAM ID
CONNECT
VIDEO ON DIP
USB 1 2 3 4
Decoder
8-4-2-1 1GbE LAN
HDMI OUTPUT
(AV INPUT)
Video
HDMI
Wall
HDMI
VIDEO LINK ACT.
POWER
STREAM ID
CONNECT
VIDEO ON DIP
USB Decoder
1 2 3 4
8-4-2-1 1GbE LAN
HDMI OUTPUT
(AV INPUT)
3
CATx
CATx
L3 Network Switch
1
5 Status LEDs See the attached list.
2
Mode Button Short press (less, than 3 sec): switching between the
Video and Graphic modes.
Long press (more, than 3 sec): reset to factory default
settings.
3
HDMI Output Forwarding the same Audio / Video content as the AV
Port Output Port.
4
DIP Switch Linking Encoder and Decoder devices (HW setting).
5
AV Output Port RJ45 connector for outgoing A/V signal to the Decoder
q
device(s) or Network switch.
6
DC 5V Input 5V DC input for local power supply.
7
RS-232 Port RJ12 connector for transparent serial communication
(point-to-point or point-to-multi point).
8
USB Port Mini B-type connector for USB pass-through application.
9
HDMI Input Port Video port for DVI or HDMI signal.
q
IR Output Port IR signal output connector (for 3.5 mm Jack, 3-pole, TRS
plug).
5
1
Status LEDs See the attached list.
2
Connect Button Short press (less, than 3 sec): acquire USB connection
(only in Multicast mode).
Long press (more, than 3 sec): reset to factory default
settings.
3
HDMI Output HDMI output to a sink device.
Port
4
DIP Switch Linking Encoder and Decoder devices (HW setting).
9
5
AV Input Port RJ45 connector for incoming A/V signal from the Encoder
device or Network switch.
6
DC 5V Input 5V DC input for local power supply.
7
RS-232 Port RJ12 connector for transparent serial communication
(point-to-point or point-to-multi point).
8
USB Ports USB 1.1 and 2.0 compatible A-type ports for transmitting
USB HID devices in Unicast mode.
9
IR Input Port IR signal input connector (for 3.5 mm Jack, 3-pole, TRS
plug).
 First of all, please set the parameters of the L3 Switch to meet with the requirements.
Please turn the paper to see the list in the 'Preparing the Network' section.
HDMI
CATx Connect CATx cables between the Extender devices and the L3 Switch.
Computer
HDMI Connect an HDMI source device (e.g. a Computer) to the HDMI input port
of the Encoder. Optionally connect a Local Display to the Output port of the
RS-232
Encoder.
Connect HDMI sink devices to the HDMI output port of the Decoder devices.
RS-232
Relay Box Optionally for RS-232 serial transmission: connect the desired devices (e.g. a
RS-232
USB
Touch Control, Relay Box) to the RS-232 ports by the supplied serial cables.
USB Optionally for USB extension: connect USB devices to the USB ports of the
Keyboard
Decoders. Connect the desired host device (e.g. Computer) to the Encoder
via the USB mini-B type port. Please pay attention to the indicated port types
RS-232
(USB 1.1 and USB 2.0 support).
Touch Panel
Connect the power cord of the supplied adaptor to the DC input first, then
Power
to the AC power socket.
USB
Connect a computer to the L3 Switch to arrange the necessary settings easily.
CATx
USB Mass
Storage Drive
Further Steps
ƒ Pair the devices by the DIP switch or via the built-in website (see the Software Control
section) and define the Video Wall.
Laptop
ƒ Select the desired Decoder for USB transmission (see the Device Concept section).
Status LEDs
Power LED
ƒ OFF: no power source is connected to the device.
ƒ BLINKING: the device is booting.
ƒ ON: the device is powered.
Video LED
ƒ OFF: the device is not connected to a network.
ƒ BLINKING: the unit is connected to a network but no video streaming is in progress.
ƒ ON: the unit is connected to a network and video streaming is in progress.
Power and Video LEDs
ƒ BLINKING together: there is a Video Stream ID clash in the network.
USB LED
ƒ OFF: there is no USB connection between the Encoder and the Decoder devices.
ƒ ON: there is a USB connection between the Encoder and the Decoder devices.
 USB connection shall be acquired in the Decoder in Multicast mode. In Unicast mode, the
USB connection is set up automatically.
Mounting Options
To mount the device Lightware supplies optional accessories for different usage:
ƒ VESA100 Mounting adapter for extenders
ƒ Under-desk mounting kit
ƒ Under-desk double mounting kit
ƒ 1U high rack shelf
To order mounting accessory kits please contact sales@lightware.com.
Mounting by Using the VESA100 Mounting adapter for extenders
VINX Device VESA100 HDTV
(bottom view) Mounting adapter (rear view)
Two mounting holes can be found at the bottom of the extender at each side, the VESA-
compatible accessory plate can fixed as indicated. The other two holes of the plate can be
fixed to a VESA-compatible device (e.g. rear panel of an HDTV).
Further Information
The document is valid with the following firmware version: 1.1.0
The User's manual of this appliance is available on www.lightware.com.
See the Downloads section on the website of the product.
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 1.1
19200084
