2. Product Overview

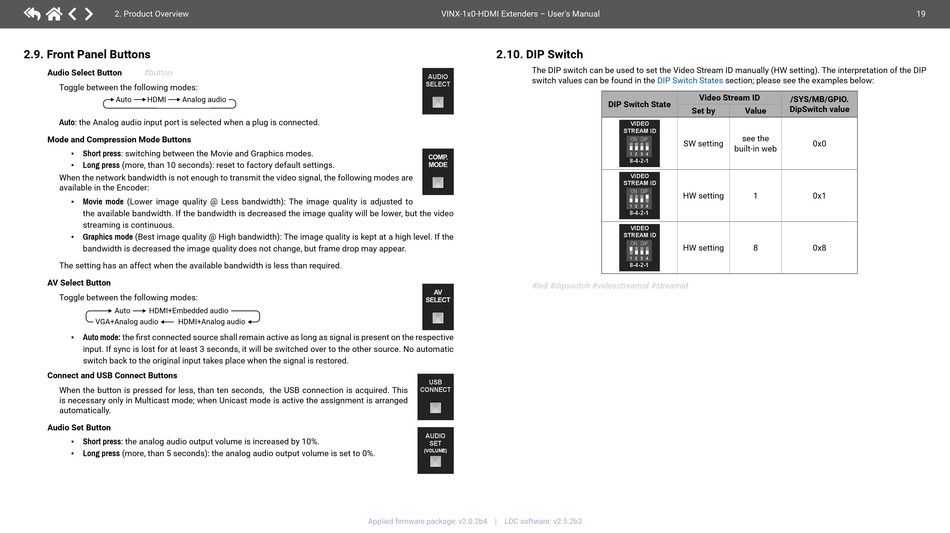

2.9. Front Panel Buttons

Audio Select Button #button
Toggle between the following modes:
Auto HDMI Analog audio
Auto: the Analog audio input port is selected when a plug is connected.
Mode and Compression Mode Buttons
Short press: switching between the Movie and Graphics modes.
▪
▪ Long press (more, than 10 seconds): reset to factory default settings.
Whenthenetworkbandwidthisnotenoughtotransmitthevideosignal,thefollowingmodesare
available in the Encoder:
Movie mode (Lower image quality @ Less bandwidth): The image quality is adjusted to
▪
the available bandwidth. If the bandwidth is decreased the image quality will be lower, but the video
streaming is continuous.
Graphics mode (Bestimagequality@Highbandwidth):Theimagequalityiskeptatahighlevel.Ifthe
▪
bandwidth is decreased the image quality does not change, but frame drop may appear.
The setting has an affect when the available bandwidth is less than required.
AV Select Button
Toggle between the following modes:
Auto HDMI+Embedded audio
VGA+Analog audio HDMI+Analog audio
▪
Auto mode:thefirstconnectedsourceshallremainactiveaslongassignalispresentontherespective
input. If sync is lost for at least 3 seconds, it will be switched over to the other source. No automatic
switch back to the original input takes place when the signal is restored.
Connect and USB Connect Buttons
Whenthebuttonispressedforless,thantenseconds,theUSBconnectionisacquired.This
is necessary only in Multicast mode; when Unicast mode is active the assignment is arranged
automatically.
Audio Set Button
Short press: the analog audio output volume is increased by 10%.
▪
▪ Long press(more,than5seconds):the analog audio output volume is set to 0%.
VINX-1x0-HDMIExtenders–User'sManual

2.10. DIP Switch

TheDIPswitchcanbeusedtosettheVideoStreamIDmanually(HWsetting).TheinterpretationoftheDIP
AUDIO
switch values can be found in the
SELECT
#led #dipswitch #videostreamid #streamid
USB
CONNECT
AUDIO
SET
(VOLUME)
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
DIP Switch States section; please see the examples below:
Video Stream ID
DIP Switch State
Set by Value
VIDEO
STREAM ID
see the
ON DIP
SWsetting
built-in web
1 2 3 4
8-4-2-1
VIDEO
STREAM ID
ON DIP
HWsetting 1
1 2 3 4
8-4-2-1
VIDEO
STREAM ID
ON DIP
HWsetting 8
1 2 3 4
8-4-2-1
19
/SYS/MB/GPIO.
DipSwitch value
0x0
0x1
0x8
