4.DeviceConcept

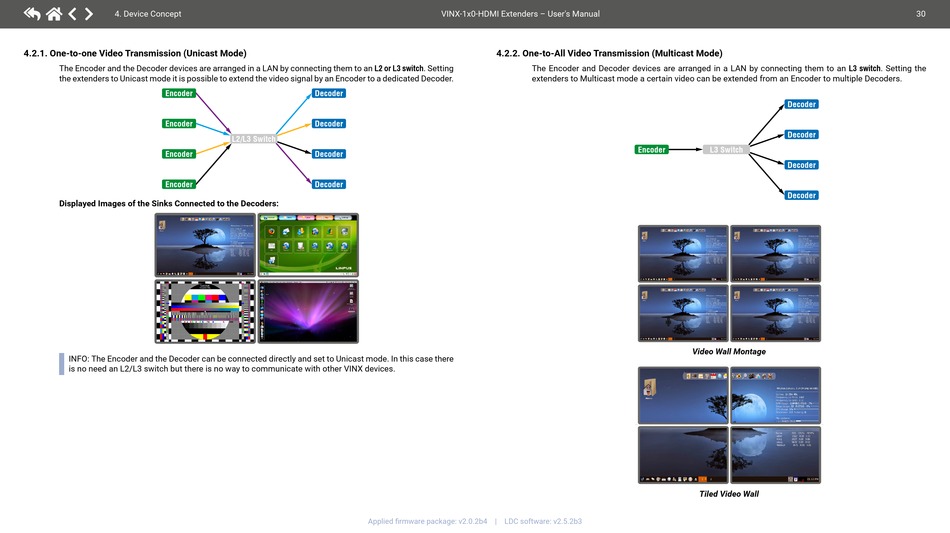

4.2.1. One-to-one Video Transmission (Unicast Mode)
TheEncoderandtheDecoderdevicesarearrangedinaLANbyconnectingthemtoanL2 or L3 switch. Setting
the extenders to Unicast mode it is possible to extend the video signal by an Encoder to a dedicated Decoder.
Encoder
Encoder
Encoder
Encoder
Displayed Images of the Sinks Connected to the Decoders:
INFO:
The Encoder and the Decoder can be connected directly and set to Unicast mode. In this case there
isnoneedanL2/L3switchbutthereisnowaytocommunicatewithotherVINXdevices.
Decoder
Decoder
L2/L3 Switch
Decoder
Decoder
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMI Extenders – User's Manual
4.2.2. One-to-All Video Transmission (Multicast Mode)
TheEncoderandDecoderdevicesarearrangedinaLANbyconnectingthemtoanL3 switch. Setting the
extenders to Multicast mode a certain video can be extended from an Encoder to multiple Decoders.
Decoder
Decoder
Encoder
L3 Switch
Decoder
Decoder
Video Wall Montage
Tiled Video Wall
30
