5.8. EDID Menu

DEFINITION: The Extended Display Identification Data (EDID) is the passport of the display devices. It contains
information about the capabilities of the display, such as supported resolutions and audio formats, refresh
rates, the type and the manufacturer of the display device, etc.
Advanced EDID Management is available in the Encoder. Navigate to the EDID menu. There are two panels:
the left contains the Source EDIDs, the right panel contains the Destination places where the EDIDs can be
emulated or copied. See more information in the

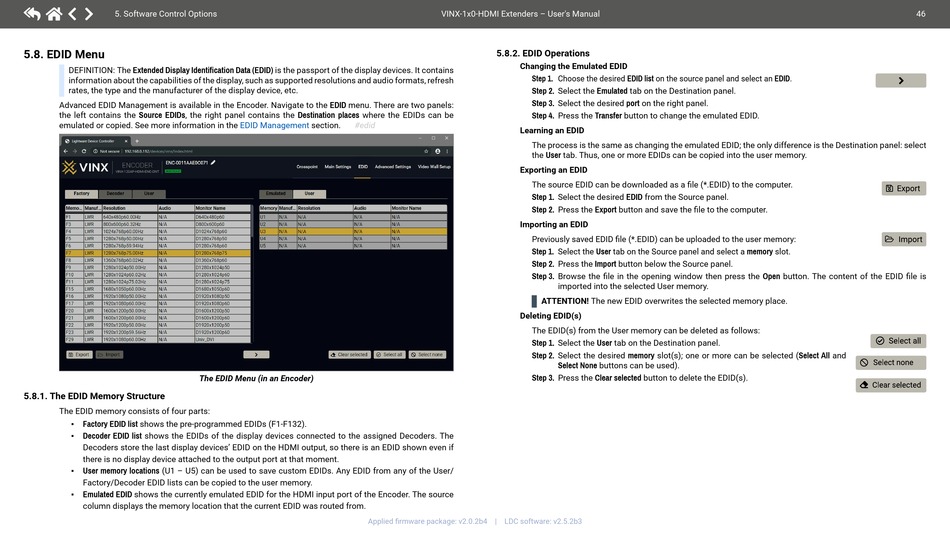

The EDID Menu (in an Encoder)

5.8.1. The EDID Memory Structure

The EDID memory consists of four parts:
▪ Factory EDID list shows the pre-programmed EDIDs (F1-F132).
Decoder EDID list shows the EDIDs of the display devices connected to the assigned Decoders. The
▪
Decoders store the last display devices' EDID on the HDMI output, so there is an EDID shown even if
there is no display device attached to the output port at that moment.
▪ User memory locations(U1–U5)canbeusedtosavecustomEDIDs.AnyEDIDfromanyoftheUser/
Factory/DecoderEDIDlistscanbecopiedtotheusermemory.
▪ Emulated EDID shows the currently emulated EDID for the HDMI input port of the Encoder. The source
column displays the memory location that the current EDID was routed from.
EDID Management section. #edid
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMIExtenders–User'sManual

5.8.2. EDID Operations

Changing the Emulated EDID
Step 1. Choose the desired EDID list on the source panel and select an EDID.
Step 2. Select the Emulated tab on the Destination panel.
Step 3. Select the desired port on the right panel.
Step 4. Press the Transfer button to change the emulated EDID.
Learning an EDID
The process is the same as changing the emulated EDID; the only difference is the Destination panel: select
the User tab. Thus, one or more EDIDs can be copied into the user memory.
Exporting an EDID
ThesourceEDIDcanbedownloadedasafile(*.EDID)tothecomputer.
Step 1. Select the desired EDID from the Source panel.
Step 2. Press the Exportbuttonandsavethefiletothecomputer.
Importing an EDID
PreviouslysavedEDIDfile(*.EDID)canbeuploadedtotheusermemory:
Step 1. Select the User tab on the Source panel and select a memory slot.
Step 2. Press the Import button below the Source panel.
Step 3. BrowsethefileintheopeningwindowthenpresstheOpenbutton.ThecontentoftheEDIDfileis
imported into the selected User memory.

ATTENTION! The new EDID overwrites the selected memory place.
Deleting EDID(s)
The EDID(s) from the User memory can be deleted as follows:
Step 1. Select the User tab on the Destination panel.
Step 2. Select the desired memory slot(s); one or more can be selected (Select All and
Select None buttons can be used).
Step 3. Press the Clear selected button to delete the EDID(s).
