9.Technologies

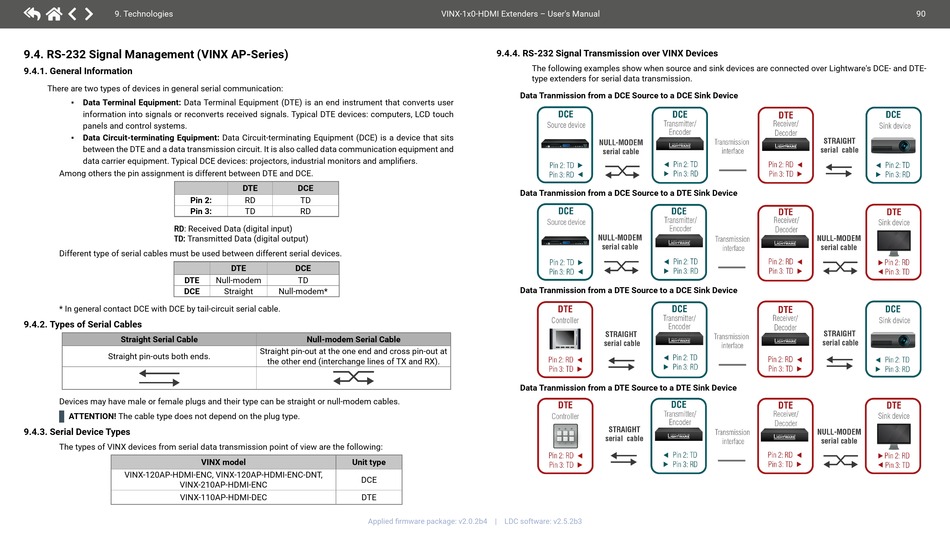

9.4. RS-232 Signal Management (VINX AP-Series)

9.4.1. General Information

There are two types of devices in general serial communication:
Data Terminal Equipment: Data Terminal Equipment (DTE) is an end instrument that converts user
▪
informationintosignalsorreconvertsreceivedsignals.TypicalDTEdevices:computers,LCDtouch
panels and control systems.
Data Circuit-terminating Equipment: Data Circuit-terminating Equipment (DCE) is a device that sits
▪
between the DTE and a data transmission circuit. It is also called data communication equipment and
datacarrierequipment.TypicalDCEdevices:projectors,industrialmonitorsandamplifiers.
Among others the pin assignment is different between DTE and DCE.
Pin 2:
Pin 3:
RD: Received Data (digital input)
TD: Transmitted Data (digital output)
Different type of serial cables must be used between different serial devices.
DTE
DCE
* In general contact DCE with DCE by tail-circuit serial cable.

9.4.2. Types of Serial Cables

Straight Serial Cable
Straight pin-outs both ends.
Devices may have male or female plugs and their type can be straight or null-modem cables.
ATTENTION!
The cable type does not depend on the plug type.

9.4.3. Serial Device Types

The types of VINX devices from serial data transmission point of view are the following:
VINX model
VINX-120AP-HDMI-ENC, VINX-120AP-HDMI-ENC-DNT,
VINX-210AP-HDMI-ENC
VINX-110AP-HDMI-DEC
DTE DCE
RD TD
TD RD
DTE DCE
Null-modem TD
Straight Null-modem*
Null-modem Serial Cable
Straight pin-out at the one end and cross pin-out at
the other end (interchange lines of TX and RX).
Unit type
DCE
DTE
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMIExtenders–User'sManual
9.4.4. RS-232 Signal Transmission over VINX Devices
ThefollowingexamplesshowwhensourceandsinkdevicesareconnectedoverLightware'sDCE-andDTE-
type extenders for serial data transmission.
Data Tranmission from a DCE Source to a DCE Sink Device
Data Tranmission from a DCE Source to a DTE Sink Device
Data Tranmission from a DTE Source to a DCE Sink Device
Data Tranmission from a DTE Source to a DTE Sink Device
