4.DeviceConcept
Small View and Large View Combined in Multicast Mode
The Layout
D D D D D
Features
▪ 3x4-sizedvideowallisdefinedandfurtherfoursingledisplaysareinstalled(bottomrow).
Any of the video signals can be displayed on the wall and on a single display device.
▪
The other video signals can be seen on the single display devices (bottom row).
▪
▪ Thevideosignalonthewallcanbechangedbyusingsoftwaretools(built-inweborLW3protocol
commands).
E E E E E
L3 Switch
D D D D D D D D D D D
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMI Extenders – User's Manual

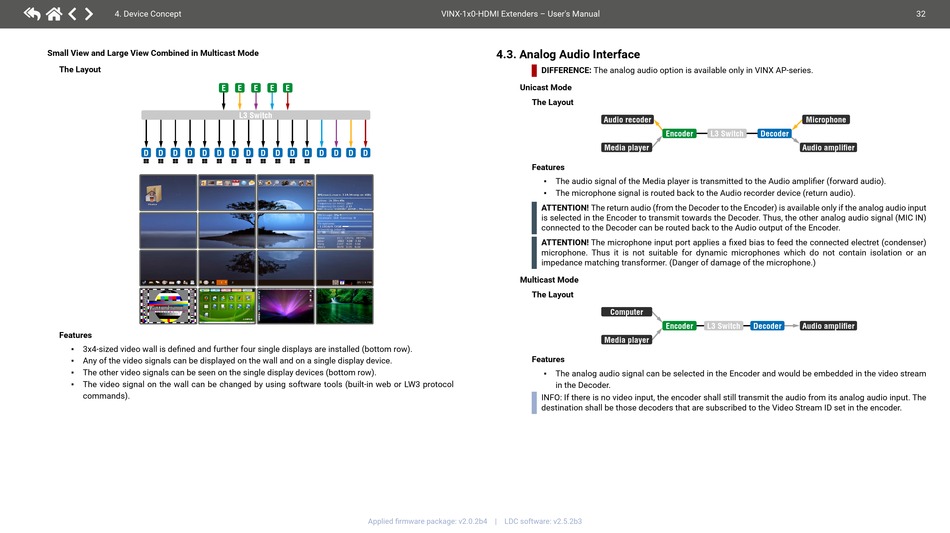

4.3. Analog Audio Interface

DIFFERENCE: The analog audio option is available only in VINX AP-series.
Unicast Mode
The Layout
Audio recoder
Media player
Features
▪ TheaudiosignaloftheMediaplayeristransmittedtotheAudioamplifier(forwardaudio).
▪ The microphone signal is routed back to the Audio recorder device (return audio).
ATTENTION!
The return audio (from the Decoder to the Encoder) is available only if the analog audio input
is selected in the Encoder to transmit towards the Decoder. Thus, the other analog audio signal (MIC IN)
connected to the Decoder can be routed back to the Audio output of the Encoder.

ATTENTION! Themicrophoneinputportappliesafixedbiastofeedtheconnectedelectret(condenser)
microphone. Thus it is not suitable for dynamic microphones which do not contain isolation or an
impedance matching transformer. (Danger of damage of the microphone.)
Multicast Mode
The Layout
Computer
Media player
Features
▪ The analog audio signal can be selected in the Encoder and would be embedded in the video stream
in the Decoder.
INFO:
If there is no video input, the encoder shall still transmit the audio from its analog audio input. The
destination shall be those decoders that are subscribed to the Video Stream ID set in the encoder.
Microphone
Encoder L3 Switch Decoder
Audio ampli er
Encoder L3 Switch Decoder Audio ampli er
32
