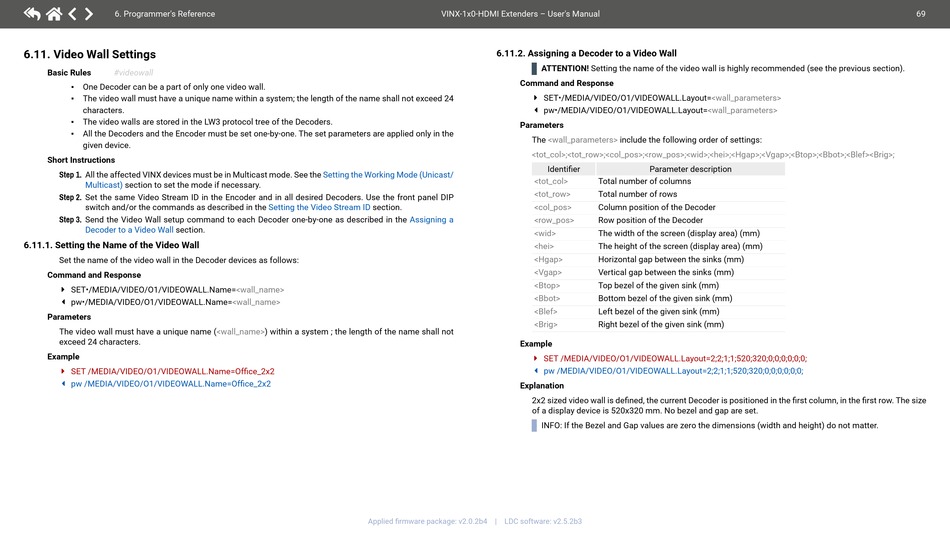

6.11. Video Wall Settings

Basic Rules #videowall
One Decoder can be a part of only one video wall.
▪
Thevideowallmusthaveauniquenamewithinasystem;thelengthofthenameshallnotexceed24
▪
characters.
▪ ThevideowallsarestoredintheLW3protocoltreeoftheDecoders.
All the Decoders and the Encoder must be set one-by-one. The set parameters are applied only in the
▪
given device.
Short Instructions
Step 1. All the affected VINX devices must be in Multicast mode. See the
Multicast) section to set the mode if necessary.
Step 2. Set the same Video Stream ID in the Encoder and in all desired Decoders. Use the front panel DIP
switchand/orthecommandsasdescribedinthe
SendtheVideoWallsetupcommandtoeachDecoderone-by-oneasdescribedintheAssigning a
Step 3.
DecodertoaVideoWall section.

6.11.1. Setting the Name of the Video Wall

Set the name of the video wall in the Decoder devices as follows:
Command and Response
SET•/MEDIA/VIDEO/O1/VIDEOWALL.Name=<wall_name>
ç
pw•/MEDIA/VIDEO/O1/VIDEOWALL.Name=<wall_name>
æ
Parameters
The video wall must have a unique name (<wall_name>) within a system ; the length of the name shall not
exceed24characters.
Example
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Name=Office_2x2
VINX-1x0-HDMIExtenders–User'sManual
SettingtheWorkingMode(Unicast/
Setting the Video Stream ID section.
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3

6.11.2. Assigning a Decoder to a Video Wall

ATTENTION!
Setting the name of the video wall is highly recommended (see the previous section).
Command and Response
SET•/MEDIA/VIDEO/O1/VIDEOWALL.Layout=<wall_parameters>
ç
pw•/MEDIA/VIDEO/O1/VIDEOWALL.Layout=<wall_parameters>
æ
Parameters
The <wall_parameters> include the following order of settings:
<tot_col>;<tot_row>;<col_pos>;<row_pos>;<wid>;<hei>;<Hgap>;<Vgap>;<Btop>;<Bbot>;<Blef><Brig>;
Identifier Parameter description
<tot_col> Total number of columns
<tot_row> Total number of rows
<col_pos> Column position of the Decoder
<row_pos> Row position of the Decoder
<wid> The width of the screen (display area) (mm)
<hei> The height of the screen (display area) (mm)
<Hgap> Horizontalgapbetweenthesinks(mm)
<Vgap> Vertical gap between the sinks (mm)
<Btop> Topbezelofthegivensink(mm)
<Bbot> Bottombezelofthegivensink(mm)
<Blef> Leftbezelofthegivensink(mm)
<Brig> Rightbezelofthegivensink(mm)
Example
ç SET/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;1;520;320;0;0;0;0;0;0;
æ pw/MEDIA/VIDEO/O1/VIDEOWALL.Layout=2;2;1;1;520;320;0;0;0;0;0;0;
Explanation
2x2sizedvideowallisdefined,thecurrentDecoderispositionedinthefirstcolumn,inthefirstrow.Thesize
ofadisplaydeviceis520x320mm.Nobezelandgapareset.
INFO:
IftheBezelandGapvaluesarezerothedimensions(widthandheight)donotmatter.
