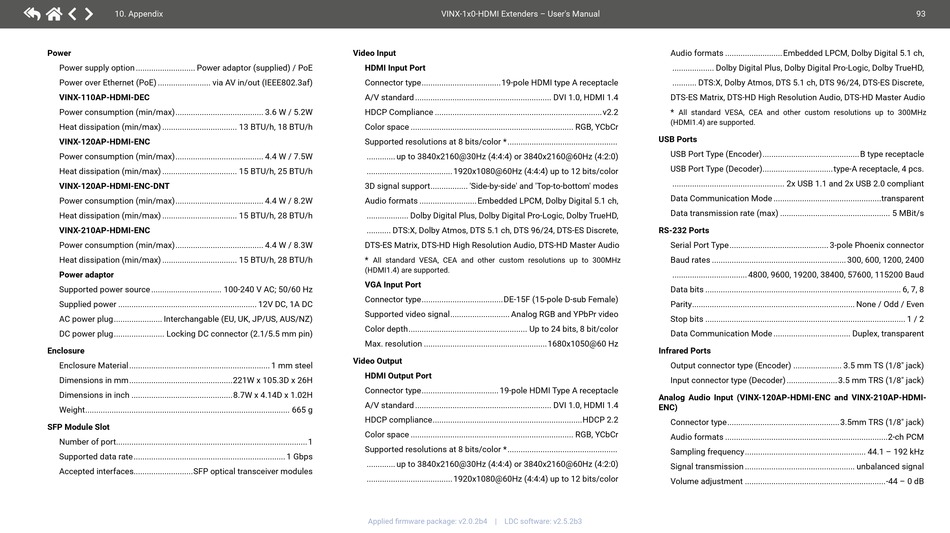

Lightware VINX-120-HDMI-ENC User Manual page 93

   
10. Appendix
Power
Power supply option ........................... Poweradaptor(supplied)/PoE
Power over Ethernet (PoE) ........................ viaAVin/out(IEEE802.3af)
VINX-110AP-HDMI-DEC
Powerconsumption(min/max) ........................................ 3.6W/5.2W
Heatdissipation(min/max) .................................. 13BTU/h,18BTU/h
VINX-120AP-HDMI-ENC
Powerconsumption(min/max) ........................................ 4.4W/7.5W
Heatdissipation(min/max) .................................. 15BTU/h,25BTU/h
VINX-120AP-HDMI-ENC-DNT
Powerconsumption(min/max) ........................................ 4.4W/8.2W
Heatdissipation(min/max) .................................. 15BTU/h,28BTU/h
VINX-210AP-HDMI-ENC
Powerconsumption(min/max) ........................................ 4.4W/8.3W
Heatdissipation(min/max) .................................. 15BTU/h,28BTU/h
Power adaptor
Supported power source ................................ 100-240VAC;50/60Hz
Supplied power ............................................................... 12V DC, 1A DC
AC power plug ...................... Interchangable(EU,UK,JP/US,AUS/NZ)
DC power plug ....................... LockingDCconnector(2.1/5.5mmpin)
Enclosure
Enclosure Material ................................................................ 1 mm steel
Dimensions in mm ...............................................221Wx105.3Dx26H
Dimensions in inch ..............................................8.7Wx4.14Dx1.02H
Weight ............................................................................................. 665g
SFP Module Slot
Number of port.......................................................................................1
Supported data rate ..................................................................... 1 Gbps
Accepted interfaces...........................SFP optical transceiver modules
VINX-1x0-HDMIExtenders–User'sManual
Video Input
HDMI Input Port
Connector type ....................................19-poleHDMItypeAreceptacle
A/Vstandard .............................................................. DVI1.0,HDMI1.4
HDCP Compliance ............................................................................v2.2
Color space .......................................................................... RGB, YCbCr
Supportedresolutionsat8bits/color* ..................................................
............. upto3840x2160@30Hz(4:4:4)or3840x2160@60Hz(4:2:0)
....................................... 1920x1080@60Hz(4:4:4)upto12bits/color
3D signal support ................. 'Side-by-side' and 'Top-to-bottom' modes
Audio formats ..........................EmbeddedLPCM,DolbyDigital5.1ch,
................... DolbyDigitalPlus,DolbyDigitalPro-Logic,DolbyTrueHD,
........... DTS:X,DolbyAtmos,DTS5.1ch,DTS96/24,DTS-ESDiscrete,
DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio
*
All standard VESA, CEA and other custom resolutions up to 300MHz
(HDMI1.4)aresupported.
VGA Input Port
Connector type .....................................DE-15F(15-poleD-subFemale)
Supported video signal ........................... Analog RGB and YPbPr video
Color depth ...................................................... Upto24bits,8bit/color
Max. resolution ........................................................1680x1050@60Hz
Video Output
HDMI Output Port
Connector type ................................... 19-poleHDMITypeAreceptacle
A/Vstandard .............................................................. DVI1.0,HDMI1.4
HDCP compliance ....................................................................HDCP 2.2
Color space .......................................................................... RGB, YCbCr
Supportedresolutionsat8bits/color* ..................................................
............. upto3840x2160@30Hz(4:4:4)or3840x2160@60Hz(4:2:0)
....................................... 1920x1080@60Hz(4:4:4)upto12bits/color
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
Audio formats ..........................EmbeddedLPCM,DolbyDigital5.1ch,
................... DolbyDigitalPlus,DolbyDigitalPro-Logic,DolbyTrueHD,
........... DTS:X,DolbyAtmos,DTS5.1ch,DTS96/24,DTS-ESDiscrete,
DTS-ES Matrix, DTS-HD High Resolution Audio, DTS-HD Master Audio
*
All standard VESA, CEA and other custom resolutions up to 300MHz
(HDMI1.4)aresupported.
USB Ports
USB Port Type (Encoder) ............................................B type receptacle
USB Port Type (Decoder) ................................type-Areceptacle,4pcs.
................................................... 2x USB 1.1 and 2x USB 2.0 compliant
Data Communication Mode .................................................transparent
Data transmission rate (max) .................................................. 5MBit/s
RS-232 Ports
Serial Port Type ............................................. 3-pole Phoenix connector
Baud rates ............................................................. 300,600,1200,2400
.................................. 4800,9600,19200,38400,57600,115200Baud
Data bits ......................................................................................... 6, 7, 8
Parity .......................................................................... None/Odd/Even
Stop bits ........................................................................................... 1/2
Data Communication Mode ................................... Duplex, transparent
Infrared Ports
Output connector type (Encoder) ...................... 3.5mmTS(1/8"jack)
Input connector type (Decoder) ....................... 3.5mmTRS(1/8"jack)
Analog Audio Input (VINX-120AP-HDMI-ENC and VINX-210AP-HDMI-
ENC)
Connector type ...................................................3.5mmTRS(1/8"jack)
Audio formats ..........................................................................2-ch PCM
Sampling frequency ....................................................... 44.1–192kHz
Signal transmission .................................................. unbalanced signal
Volume adjustment ................................................................-44–0dB
