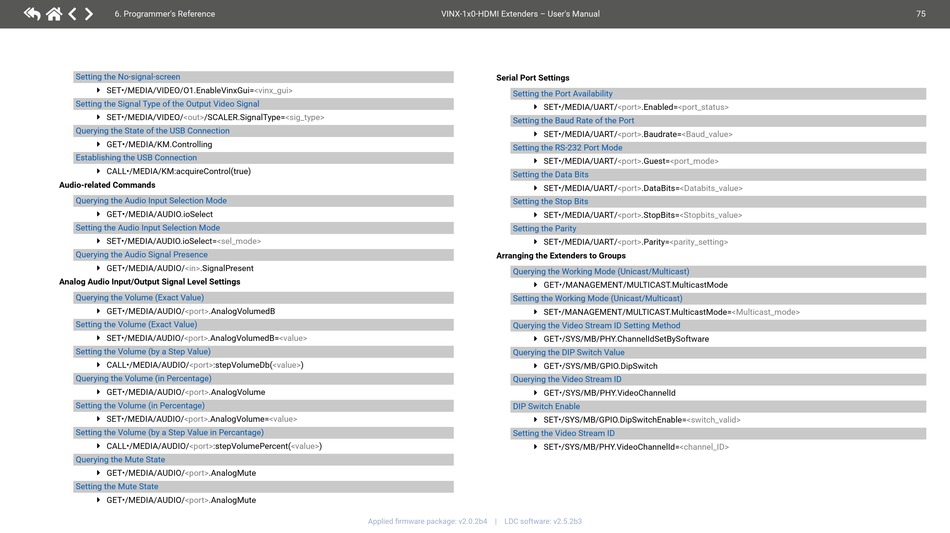

Lightware VINX-120-HDMI-ENC User Manual page 75

   
6. Programmer's Reference
Setting the No-signal-screen
SET•/MEDIA/VIDEO/O1.EnableVinxGui=<vinx_gui>
ç
Setting the Signal Type of the Output Video Signal
SET•/MEDIA/VIDEO/<out>/SCALER.SignalType=<sig_type>
ç
QueryingtheStateoftheUSBConnection
ç GET•/MEDIA/KM.Controlling
Establishing the USB Connection
ç CALL•/MEDIA/KM:acquireControl(true)
Audio-related Commands
QueryingtheAudioInputSelectionMode
ç GET•/MEDIA/AUDIO.ioSelect
Setting the Audio Input Selection Mode
SET•/MEDIA/AUDIO.ioSelect=<sel_mode>
ç
QueryingtheAudioSignalPresence
ç GET•/MEDIA/AUDIO/<in>.SignalPresent
Analog Audio Input/Output Signal Level Settings
QueryingtheVolume(ExactValue)
ç GET•/MEDIA/AUDIO/<port>.AnalogVolumedB
Setting the Volume (Exact Value)
SET•/MEDIA/AUDIO/<port>.AnalogVolumedB=<value>
ç
Setting the Volume (by a Step Value)
ç CALL•/MEDIA/AUDIO/<port>:stepVolumeDb(<value>)
QueryingtheVolume(inPercentage)
ç GET•/MEDIA/AUDIO/<port>.AnalogVolume
Setting the Volume (in Percentage)
SET•/MEDIA/AUDIO/<port>.AnalogVolume=<value>
ç
Setting the Volume (by a Step Value in Percantage)
ç CALL•/MEDIA/AUDIO/<port>:stepVolumePercent(<value>)
QueryingtheMuteState
ç GET•/MEDIA/AUDIO/<port>.AnalogMute
Setting the Mute State
ç GET•/MEDIA/AUDIO/<port>.AnalogMute
VINX-1x0-HDMIExtenders–User'sManual
Serial Port Settings
Setting the Port Availability
SET•/MEDIA/UART/<port>.Enabled=<port_status>
ç
Setting the Baud Rate of the Port
SET•/MEDIA/UART/<port>.Baudrate=<Baud_value>
ç
Setting the RS-232 Port Mode
SET•/MEDIA/UART/<port>.Guest=<port_mode>
ç
Setting the Data Bits
SET•/MEDIA/UART/<port>.DataBits=<Databits_value>
ç
Setting the Stop Bits
SET•/MEDIA/UART/<port>.StopBits=<Stopbits_value>
ç
Setting the Parity
SET•/MEDIA/UART/<port>.Parity=<parity_setting>
ç
Arranging the Extenders to Groups
QueryingtheWorkingMode(Unicast/Multicast)
ç GET•/MANAGEMENT/MULTICAST.MulticastMode
SettingtheWorkingMode(Unicast/Multicast)
SET•/MANAGEMENT/MULTICAST.MulticastMode=<Multicast_mode>
ç
QueryingtheVideoStreamIDSettingMethod
ç GET•/SYS/MB/PHY.ChannelIdSetBySoftware
QueryingtheDIPSwitchValue
ç GET•/SYS/MB/GPIO.DipSwitch
QueryingtheVideoStreamID
ç GET•/SYS/MB/PHY.VideoChannelId
DIP Switch Enable
SET•/SYS/MB/GPIO.DipSwitchEnable=<switch_valid>
ç
Setting the Video Stream ID
SET•/SYS/MB/PHY.VideoChannelId=<channel_ID>
ç
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
