5.SoftwareControlOptions

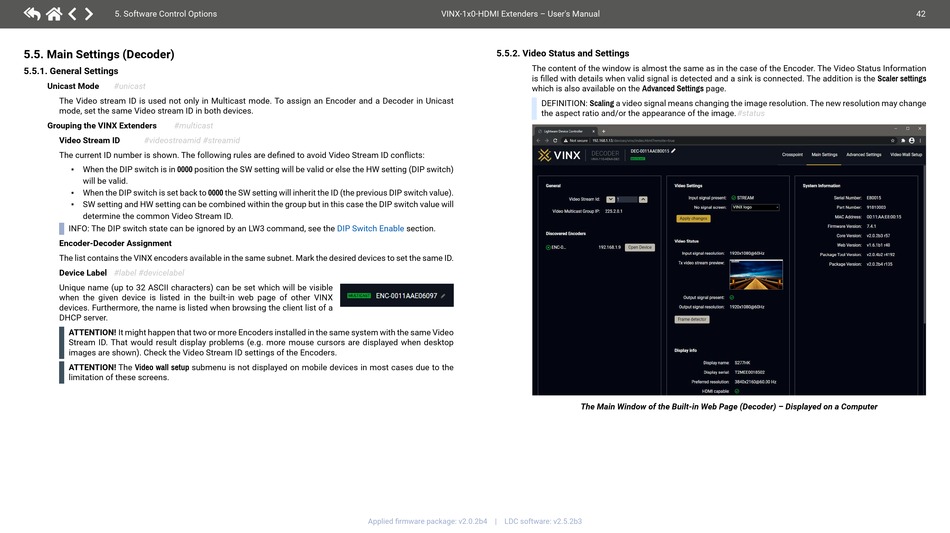

5.5. Main Settings (Decoder)

5.5.1. General Settings

Unicast Mode #unicast
The Video stream ID is used not only in Multicast mode. To assign an Encoder and a Decoder in Unicast
mode, set the same Video stream ID in both devices.
Grouping the VINX Extenders #multicast
Video Stream ID #videostreamid #streamid
ThecurrentIDnumberisshown.ThefollowingrulesaredefinedtoavoidVideoStreamIDconflicts:
▪ WhentheDIPswitchisin0000positiontheSWsettingwillbevalidorelsetheHWsetting(DIPswitch)
will be valid.
WhentheDIPswitchissetbackto0000theSWsettingwillinherittheID(thepreviousDIPswitchvalue).
▪
▪ SWsettingandHWsettingcanbecombinedwithinthegroupbutinthiscasetheDIPswitchvaluewill
determine the common Video Stream ID.

INFO: TheDIPswitchstatecanbeignoredbyanLW3command,seetheDIP Switch Enable
Encoder-Decoder Assignment
The list contains the VINX encoders available in the same subnet. Mark the desired devices to set the same ID.
Device Label #label #devicelabel
Unique name (up to 32 ASCII characters) can be set which will be visible
when the given device is listed in the built-in web page of other VINX
devices. Furthermore, the name is listed when browsing the client list of a
DHCP server.

ATTENTION! It might happen that two or more Encoders installed in the same system with the same Video
Stream ID. That would result display problems (e.g. more mouse cursors are displayed when desktop
images are shown). Check the Video Stream ID settings of the Encoders.
ATTENTION!
The Video wall setup submenu is not displayed on mobile devices in most cases due to the
limitation of these screens.
VINX-1x0-HDMIExtenders–User'sManual

5.5.2. Video Status and Settings

The content of the window is almost the same as in the case of the Encoder. The Video Status Information
isfilledwithdetailswhenvalidsignalisdetectedandasinkisconnected.TheadditionistheScaler settings
which is also available on the Advanced Settings page.

DEFINITION:
theaspectratioand/ortheappearanceoftheimage.
section.
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
Scaling a video signal means changing the image resolution. The new resolution may change
#status
The Main Window of the Built-in Web Page (Decoder) – Displayed on a Computer
