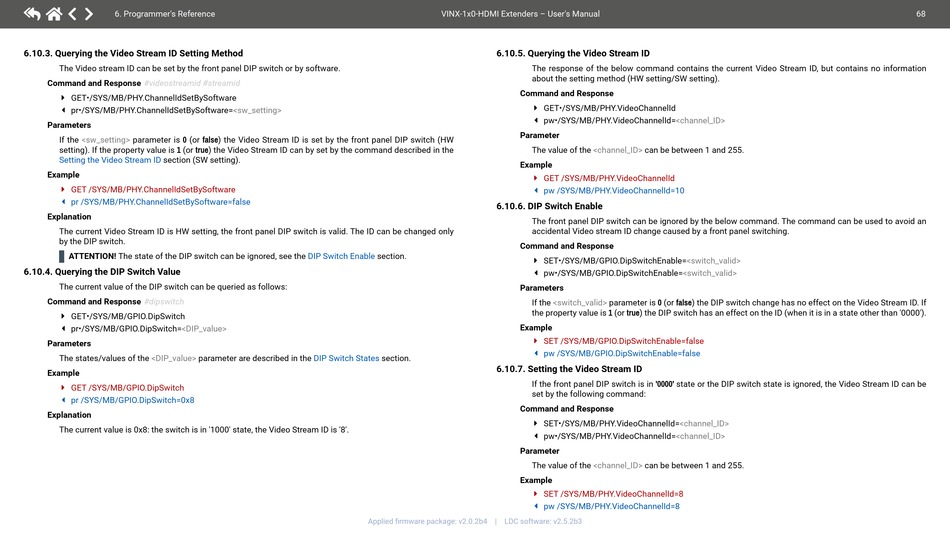

6. Programmer's Reference

6.10.3. Querying the Video Stream ID Setting Method

The Video stream ID can be set by the front panel DIP switch or by software.
Command and Response #videostreamid #streamid
ç GET•/SYS/MB/PHY.ChannelIdSetBySoftware
pr•/SYS/MB/PHY.ChannelIdSetBySoftware=<sw_setting>
æ
Parameters
If the <sw_setting> parameter is 0 (or false)theVideoStreamIDissetbythefrontpanelDIPswitch(HW
setting). If the property value is 1 (or true) the Video Stream ID can by set by the command described in the
Setting the Video Stream IDsection(SWsetting).
Example
ç GET/SYS/MB/PHY.ChannelIdSetBySoftware
æ pr/SYS/MB/PHY.ChannelIdSetBySoftware=false
Explanation
ThecurrentVideoStreamIDisHWsetting,thefrontpanelDIPswitchisvalid.TheIDcanbechangedonly
by the DIP switch.
ATTENTION!
The state of the DIP switch can be ignored, see the

6.10.4. Querying the DIP Switch Value

The current value of the DIP switch can be queried as follows:
Command and Response #dipswitch
ç GET•/SYS/MB/GPIO.DipSwitch
pr•/SYS/MB/GPIO.DipSwitch=<DIP_value>
æ
Parameters
Thestates/valuesofthe<DIP_value>parameter are described in the
Example
ç GET/SYS/MB/GPIO.DipSwitch
æ pr/SYS/MB/GPIO.DipSwitch=0x8
Explanation
The current value is 0x8: the switch is in '1000' state, the Video Stream ID is '8'.
VINX-1x0-HDMI Extenders – User's Manual

DIP Switch Enable

section.
DIP Switch States section.
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3

6.10.5. Querying the Video Stream ID

The response of the below command contains the current Video Stream ID, but contains no information
aboutthesettingmethod(HWsetting/SWsetting).
Command and Response
ç GET•/SYS/MB/PHY.VideoChannelId
pw•/SYS/MB/PHY.VideoChannelId=<channel_ID>
æ
Parameter
The value of the <channel_ID>canbebetween1and255.
Example
ç GET/SYS/MB/PHY.VideoChannelId
æ pw/SYS/MB/PHY.VideoChannelId=10
6.10.6. DIP Switch Enable
The front panel DIP switch can be ignored by the below command. The command can be used to avoid an
accidental Video stream ID change caused by a front panel switching.
Command and Response
SET•/SYS/MB/GPIO.DipSwitchEnable=<switch_valid>
ç
pw•/SYS/MB/GPIO.DipSwitchEnable=<switch_valid>
æ
Parameters
If the <switch_valid> parameter is 0 (or false) the DIP switch change has no effect on the Video Stream ID. If
the property value is 1 (or true) the DIP switch has an effect on the ID (when it is in a state other than '0000').
Example
ç SET/SYS/MB/GPIO.DipSwitchEnable=false
æ pw/SYS/MB/GPIO.DipSwitchEnable=false

6.10.7. Setting the Video Stream ID

If the front panel DIP switch is in '0000' state or the DIP switch state is ignored, the Video Stream ID can be
set by the following command:
Command and Response
SET•/SYS/MB/PHY.VideoChannelId=<channel_ID>
ç
pw•/SYS/MB/PHY.VideoChannelId=<channel_ID>
æ
Parameter
The value of the <channel_ID>canbebetween1and255.
Example
ç SET/SYS/MB/PHY.VideoChannelId=8
æ pw/SYS/MB/PHY.VideoChannelId=8
68
