4 – Operation

Operator interface: Operation screens

The operation screen on the operator interface lets the user:
 turn the pump on or off.
 set or change the water pressure.
 select the operating mode (cut or pierce).

monitor the status of the intensifier.

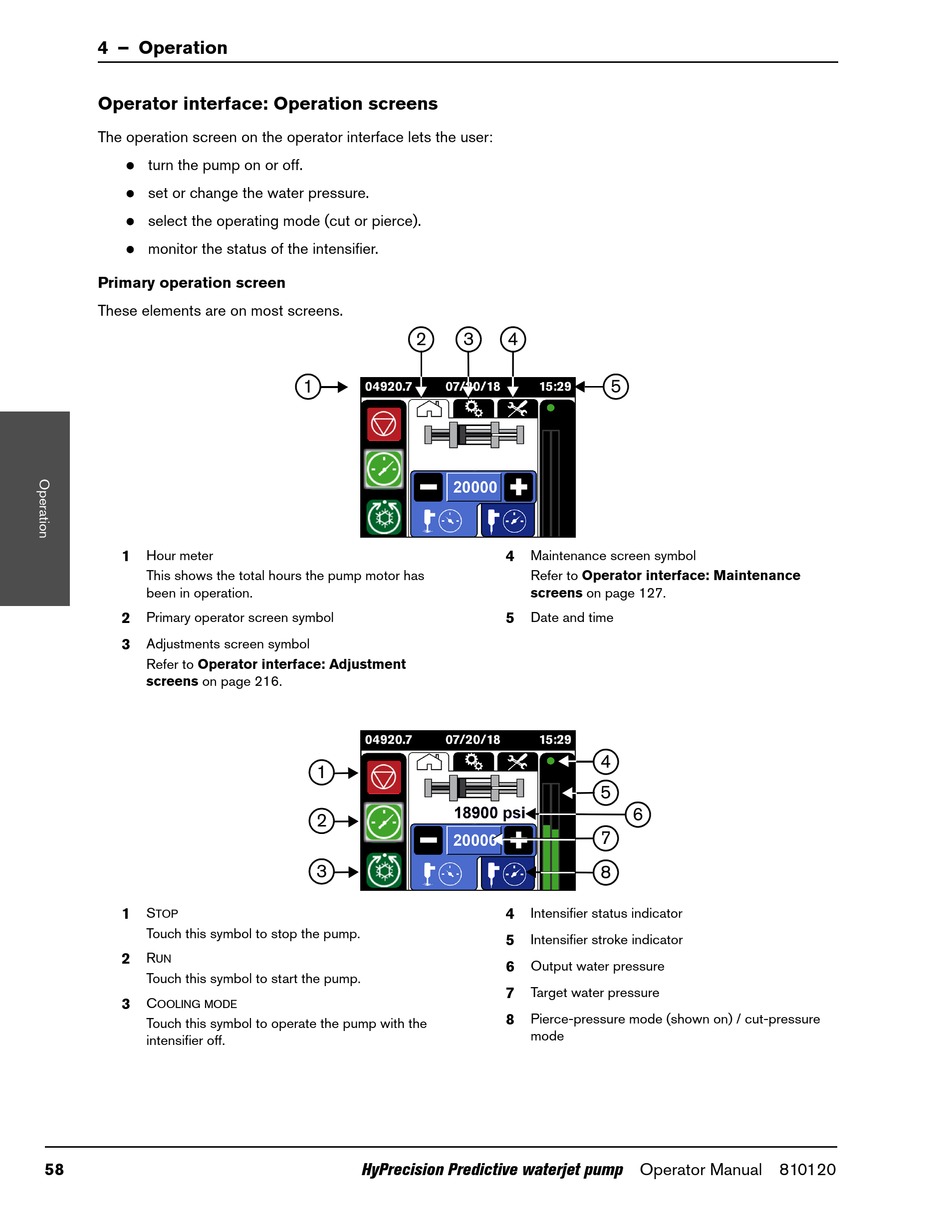

Primary operation screen
These elements are on most screens.
1 Hour meter
This shows the total hours the pump motor has
been in operation.
2 Primary operator screen symbol
3 Adjustments screen symbol
Refer to Operator interface: Adjustment
screens on page 216.
1 S
TOP
Touch this symbol to stop the pump.
2 R
UN
Touch this symbol to start the pump.
3 C
OOLING MODE
Touch this symbol to operate the pump with the
intensifier off.
58
2 3
1
1
2
3
HyPrecision Predictive waterjet pump Operator Manual 810120
4
5
4 Maintenance screen symbol
Refer to Operator interface: Maintenance
screens on page 127.
5 Date and time
4
5
6
7
8
4 Intensifier status indicator
5 Intensifier stroke indicator
6 Output water pressure
7 Target water pressure
8
Pierce-pressure mode (shown on) / cut-pressure
mode
