9 – Installation

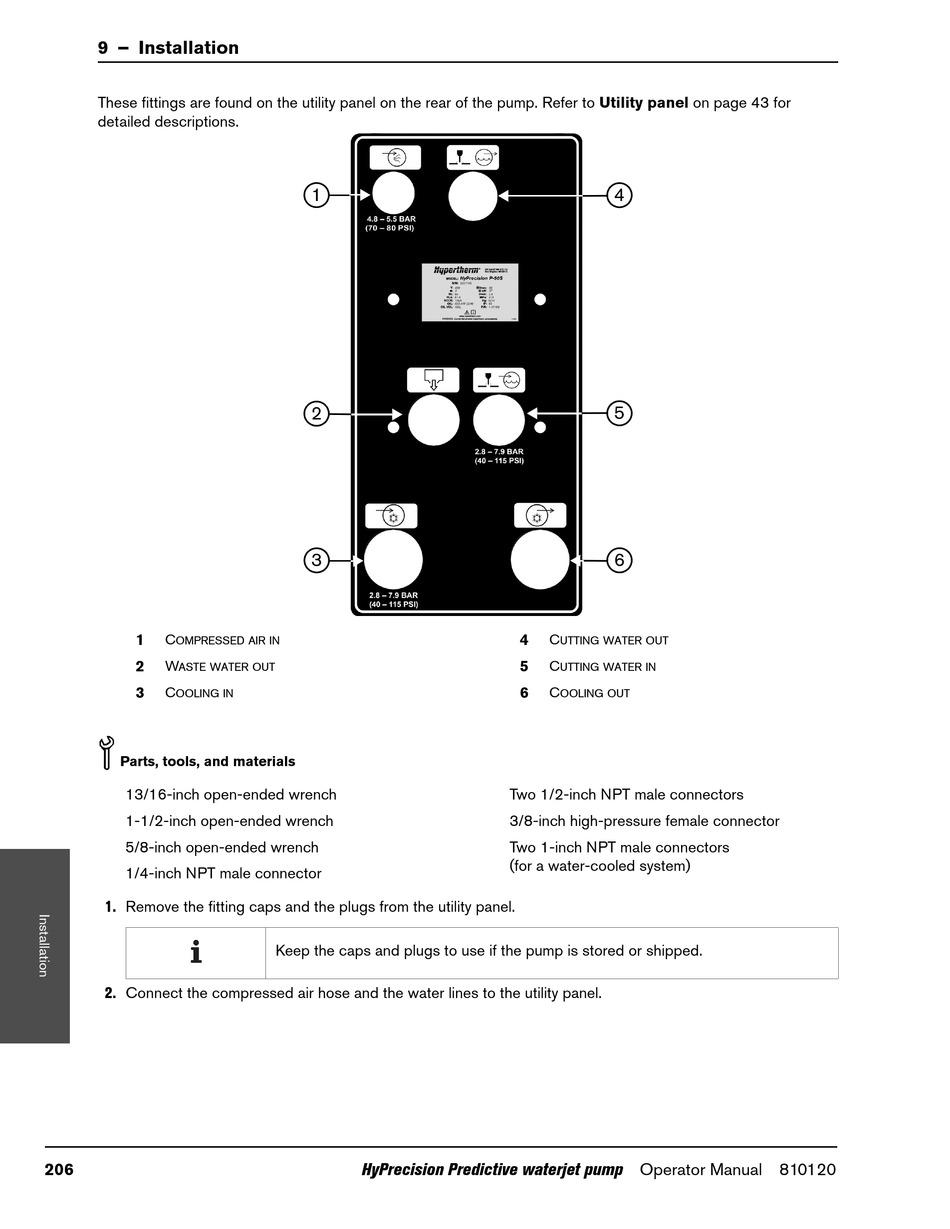

These fittings are found on the utility panel on the rear of the pump. Refer to Utility panel on page 43 for
detailed descriptions.
1
C
OMPRESSED AIR IN
2
W
ASTE WATER OUT
3 C
OOLING IN
Parts, tools, and materials
13/16-inch open-ended wrench
1-1/2-inch open-ended wrench
5/8-inch open-ended wrench
1/4-inch NPT male connector
1. Remove the fitting caps and the plugs from the utility panel.
2. Connect the compressed air hose and the water lines to the utility panel.
206
1
2
3
Keep the caps and plugs to use if the pump is stored or shipped.
HyPrecision Predictive waterjet pump Operator Manual 810120
4
5
6
4
C
UTTING WATER OUT
5
C
UTTING WATER IN
6 C
OOLING OUT
Two 1/2-inch NPT male connectors
3/8-inch high-pressure female connector
Two 1-inch NPT male connectors 
(for a water-cooled system)
