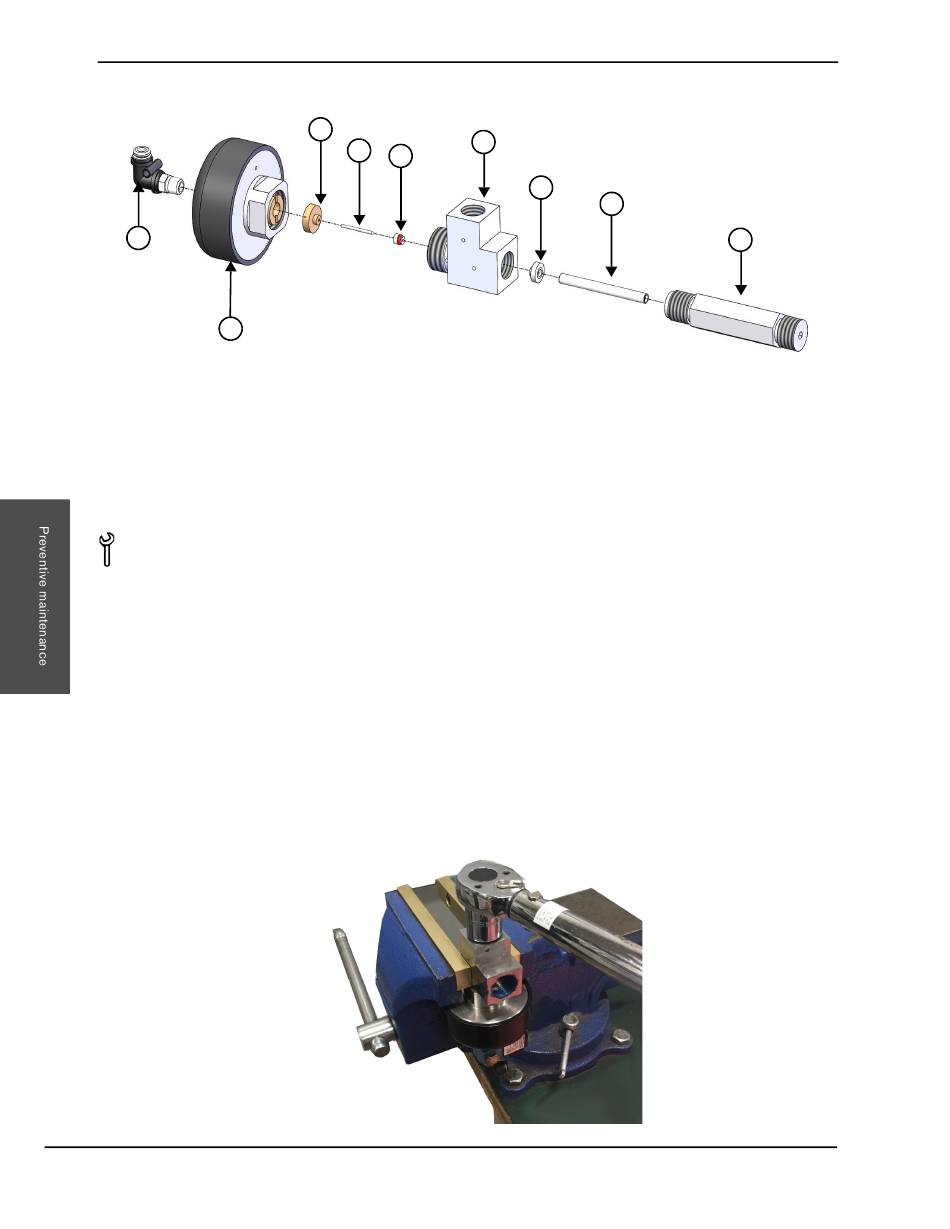

Assemble the bleed-down valve

1
1 Air fitting
2 Actuator
3 Needle bushing
4 1-11562 Needle
5 1-11043 High-pressure valve seal
Parts, tools, and materials
1-17434 Bleed-down valve repair kit
High-pressure antiseize lubricant such as Blue
Goop or PURE Goop
1-inch open-ended wrench
3/4-inch open-ended crowfoot wrench or socket
Torque wrench
1. Put high-pressure antiseize lubricant on the seat.
2. Put the flow reducer into the outlet adapter.
3. Put the seat into the outlet adapter.
4. Install the outlet adapter in the bleed-down valve body. Torque the adapter to 95 N∙m (70 lbf∙ft).
124
3
4
5
2
HyPrecision Predictive waterjet pump Operator Manual 810120
6
7
8
6 1-14141 Bleed-down valve body
7 1-11010 High-pressure poppet seat
8 1-17336 Air-actuated bleed-down valve flow
reducer
9
Outlet adapter
Recommended materials
Vise
9
