Install the external plumbing package (optional)

The plumbing package is designed to make installing high-pressure tubing from the pump to the cutting table
easier. A whip bracket reduces stress on the tubing and the necessity for 90° bends.
Parts, tools, and materials
1-15578 Pump-mounted plumbing kit
Set of standard wrenches

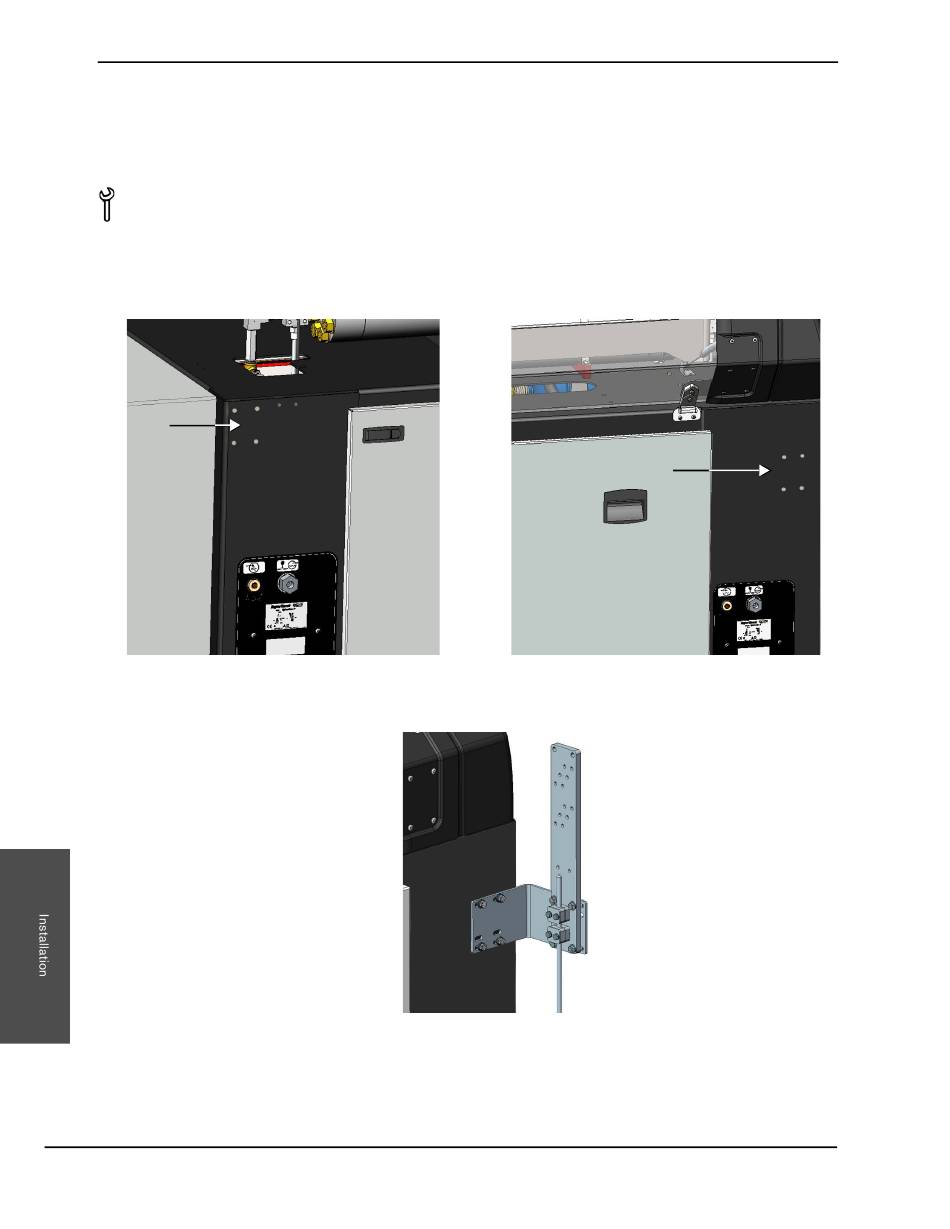

1. Find the mounting holes for the plumbing kit on the rear of the pump above the utility panel.
HyPrecision P-15/P-30/P-50 pump
2. Use the mounting holes to install the angle plate on the pump frame.
3. Use the included hardware to mount the high-pressure tubing whip bracket on the angle plate.
4. After the high-pressure tubing is connected to the utility panel, install the high-pressure tubing clamps on the
whip bracket.
204
HyPrecision P-50S/P-60S/P-75S pump
