5.1.2 Table and backrest unit
When the height of the table and backrest unit is adjusted, it affects the
distance between the seat and the base module.
The center of gravity changes when you change the position of the
table and backrest unit. When you raise the table and backrest unit, you
decrease the wheelchair´s stability.
CAUTION!
Pinch risk
There is a pinch risk when you adjust the height.
5.1.2.1 Adjusting the height of the table and backrest unit
1. Loosen the tightening knob (A).
2. Hold the table in its position (B) to prevent it from sliding down on
the base module.
3. While you hold the table in its current position, pull out the plunger
knob (C).
4. While you continue to pull the plunger knob (C), move the column
up or down to the new setting.
5. Release the plunger knob (C). A click signals that the plunger knob
(C) is locked.
6. Tighten the tightening knob (A) by hand.
WARNING!
Risk of injury
You must hold the table and backrest unit with one hand at all times when you
adjust the height of the table and backrest unit. If you do not, it can slide down
quickly and cause injury.
Make sure that the seat and the table and backrest unit are locked in their
positions before the child sits in the Explorer Mini.
70
Adjustments - Seat
B
C

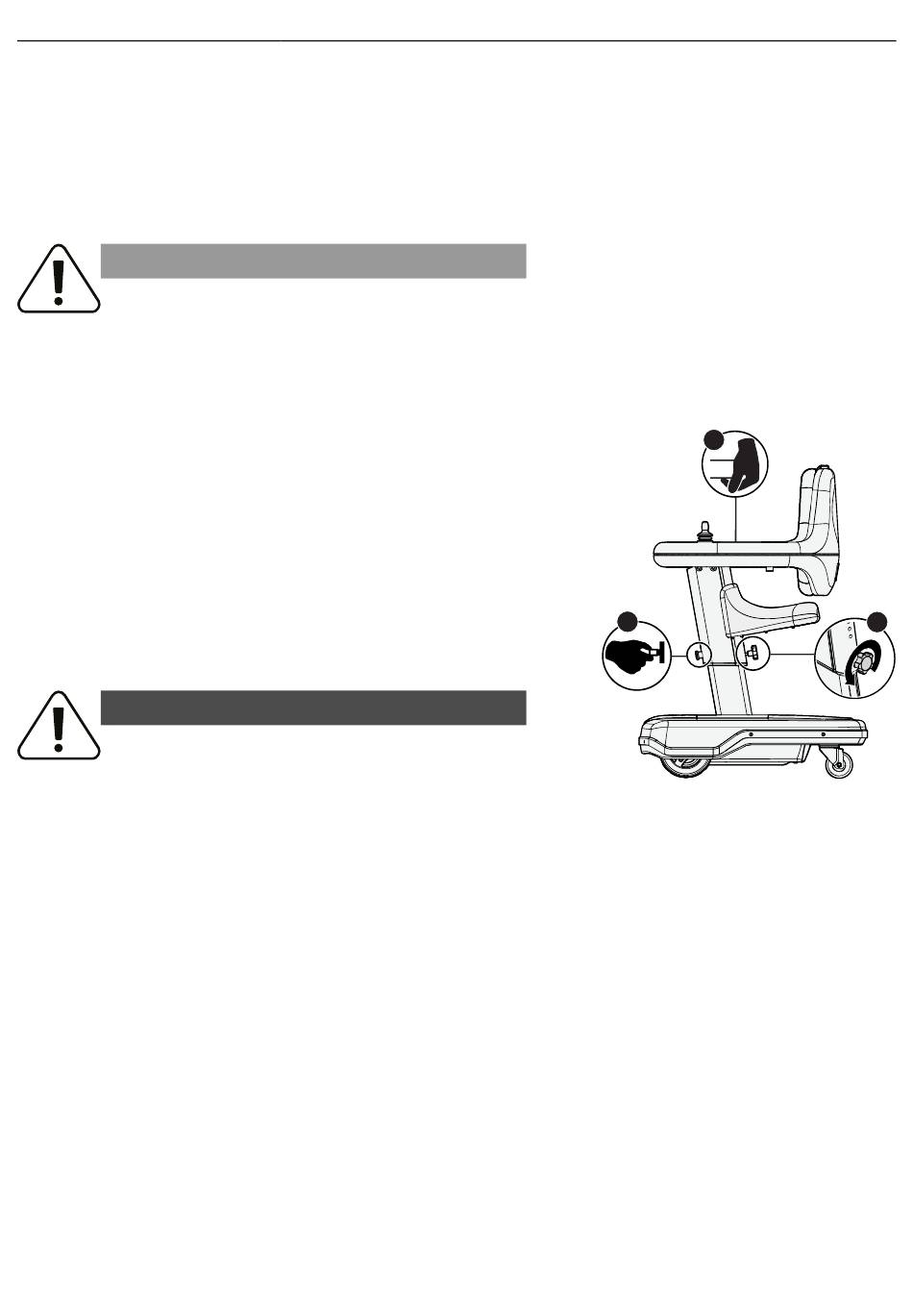

Figure 136. Loosen the tightening knob (A), hold the
table its position (B) and pull out the plunger knob (C).
A
