Explorer Mini
4.6.2

Bottom cover

4.6.2.1 Removing the bottom cover
The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 3 mm.
• Allen socket, 4 mm.
• Allen socket, 5 mm.
1. Remove the top cover. For instructions, see
4.6.1.1 Removing the top cover .
2. Disconnect the cable to the battery saving module from the start
button.
3. Disconnect the cables to the main circuit breaker from the batteries.
4. Put the base module upside down with its metal surface facing the
floor. Make sure that the cable to the nVR2 power module, the
cables to the main circuit breaker and the cable to the start button
aren´t pinched by the metal chassis.
Repairs - Base module

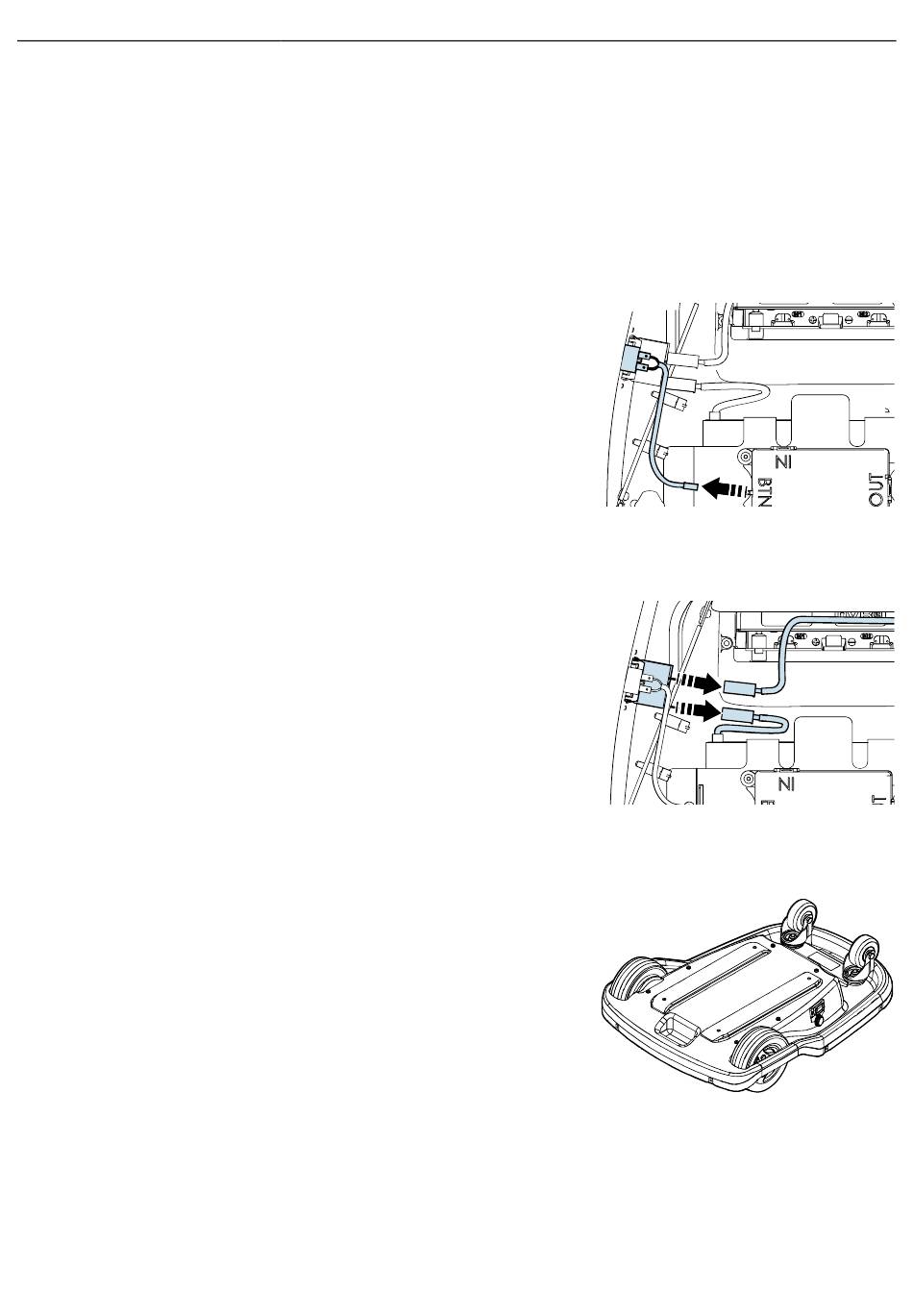

Figure 57. Disconnect the cable to the start button from
the battery saving module.
Figure 58. Disconnect the cables to the main circuit
breaker from the batteries.
Figure 59. Put the base module upside down.
