9. Make sure that the cable to the control panel is kept in the groove
under the column assembly´s bracket and that it isn´t pinched.
10. Connect the cable from the control panel to the contact of the
nVR2 power module.
11. Push the contacts through the hole on the top cover and make sure
that the contacts are hidden under the top cover.
12. Put the cable into the groove of the UniTrack® at the front of the
base module and snap the cover in place.
13. Attach the cover on the UniTrack® at the front of the base module
with the screw. Tightening torque: 2.1 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
CAUTION!
Risk of injury
Make sure that the screw heads don´t protrude when the screws have been
tightened.
32
Repairs - Base module

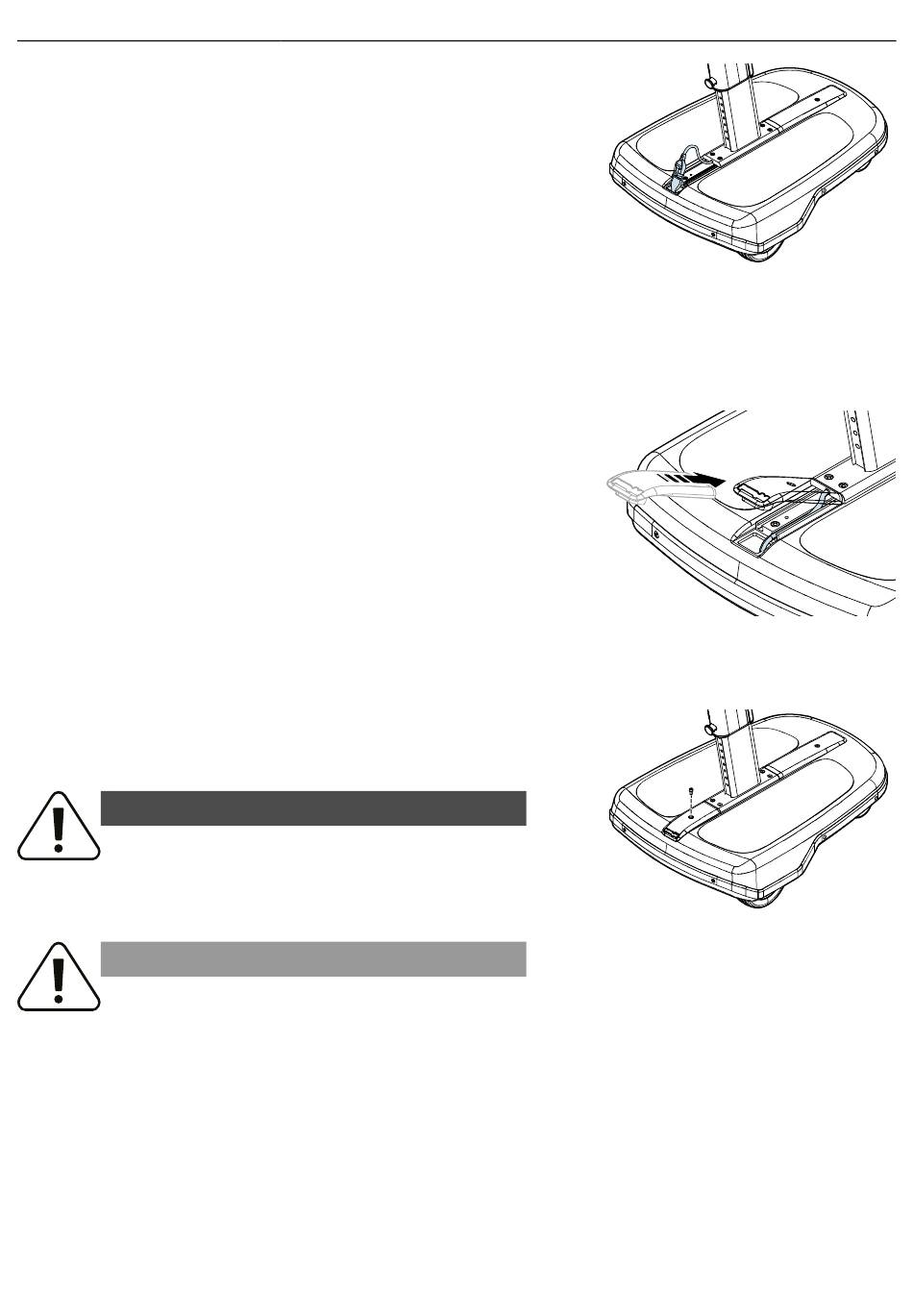

Figure 54. Connect the cable.
Figure 55. Attach the cover on the UniTrack® at the
front of the base module.
Figure 56. Attach the cover on the UniTrack® with the
screw.
