4.6.2.2 Installing the bottom cover
The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 3 mm.
• Allen socket, 4 mm.
• Allen socket, 5 mm.
1. Put the metal chassis upside down on a flat surface. Make sure that
the cable from the nVR2 power module isn´t pinched by the metal
chassis.
2. Put back the bottom cover on the metal chassis by carefully sliding it
over the bracket on the metal chassis. Make sure that the cable to
the start button and the connector to the main circuit breaker aren´t
pinched.
36
Repairs - Base module

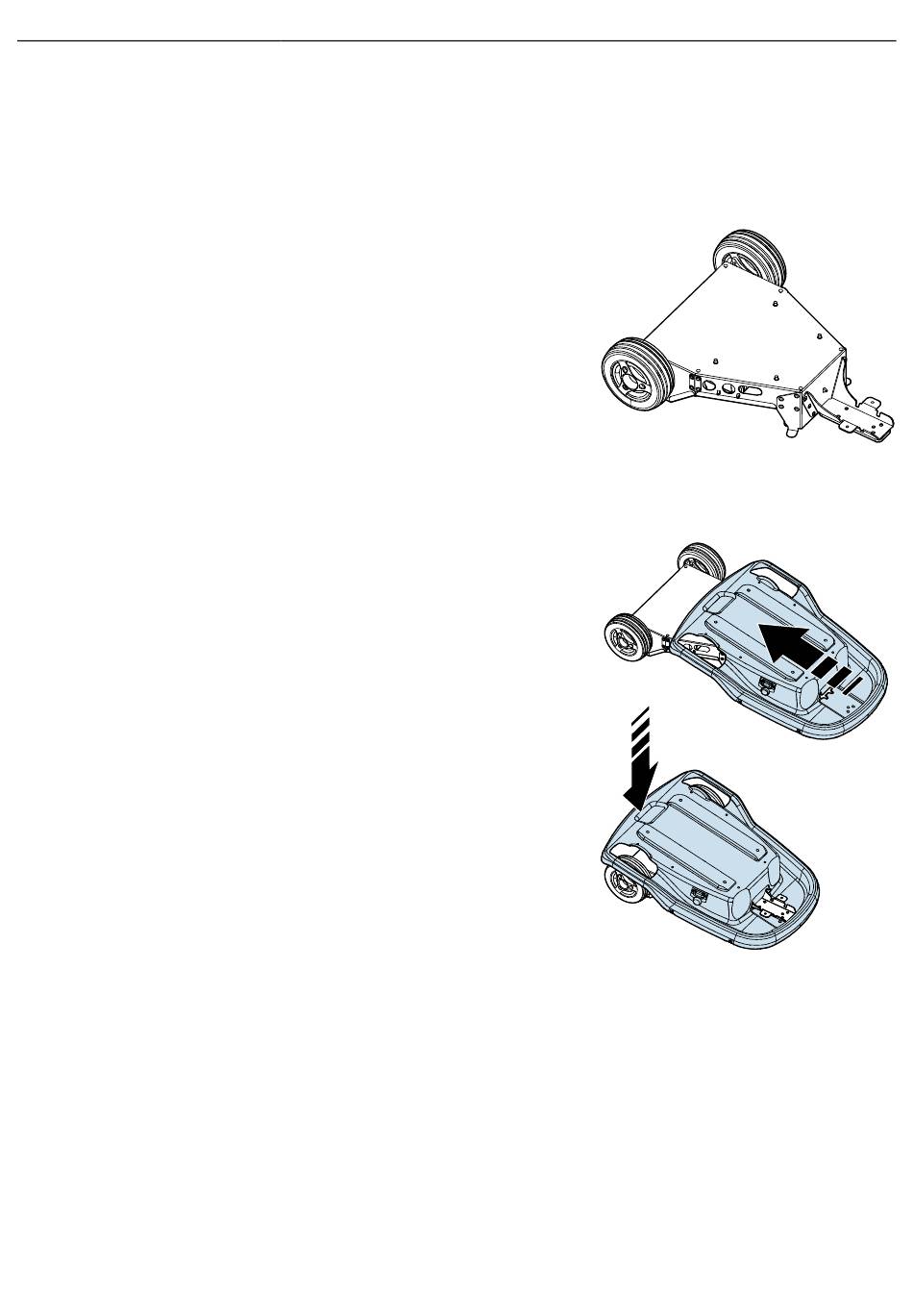

Figure 65. Put the metal chassis upside down.
Figure 66. Put back the bottom cover.
