Explorer Mini
4.8

Caster wheels

4.8.1

Removing the caster wheels

The following tools are necessary for this task:
• Box-end wrench, 17 mm
• Torque wrench.
• Allen socket, 8 mm.
1. Press the on/off button (A) to turn off the power.
2. Turn off the main circuit breaker (B).
3. Adjust the table and backrest unit to its highest position. For
instructions, see
5.1.2.1 Adjusting the height of the table and backrest unit .
4. Tilt the Explorer Mini 90° and put it on the floor with the caster
wheels accessible.
5. Rotate each caster wheel to access the nut and the screw on each
caster wheel.
6. Remove the nut and the screw from each caster wheel.
42
Repairs - Caster wheels

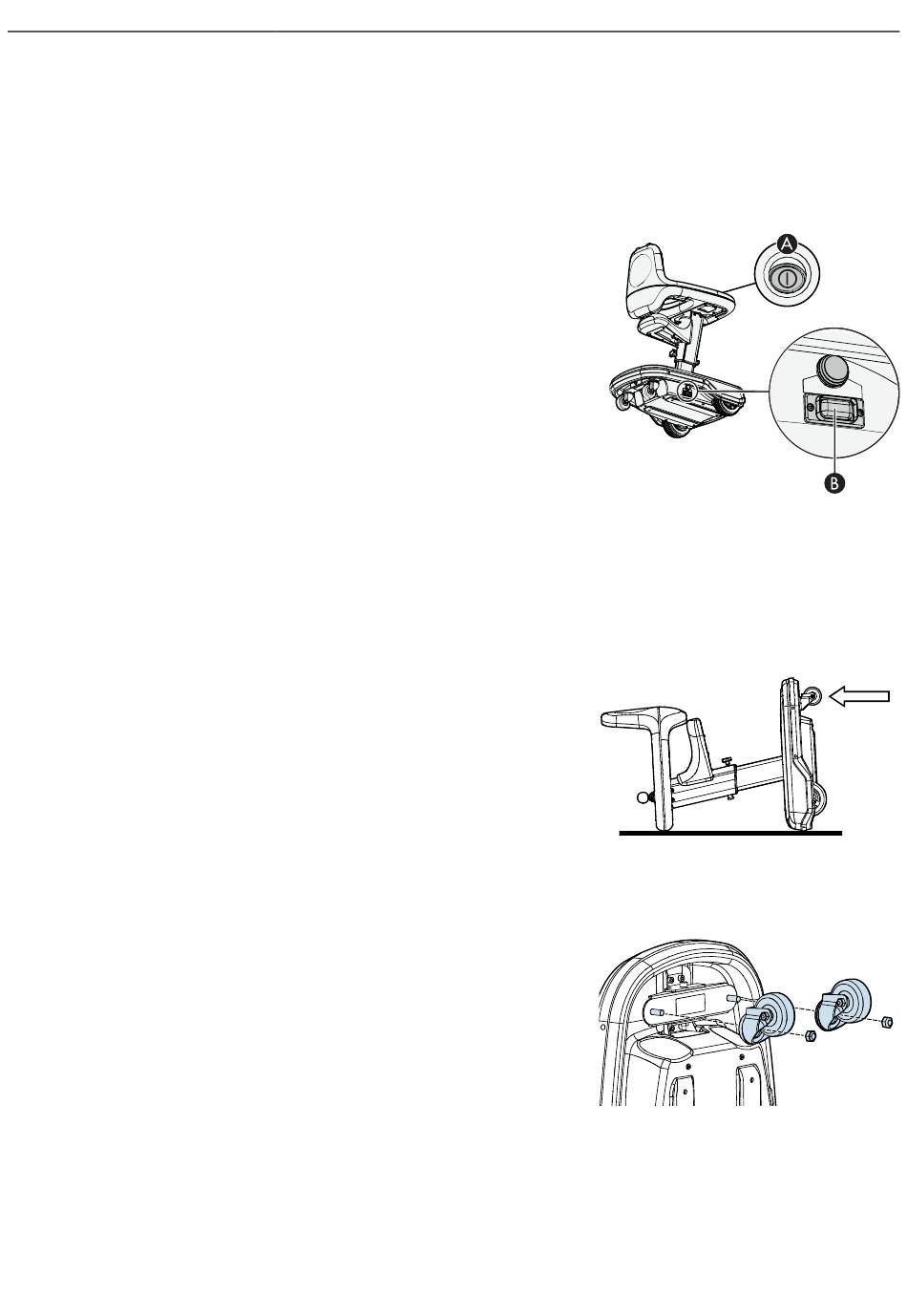

Figure 77. Positions for the on/off button (A) and the
main circuit breaker (B).
Figure 78. Tilt the Explorer Mini to access the caster
wheels.
Figure 79. Remove the caster wheels.
