Permobil Explorer Mini Service Manual page 24

Explorer Mini
7. Attach the table to the bracket with the four screws and washers.
Tightening torque: 3.5 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
8. Tighten the screws in the key slots of the bracket. Tightening
torque: 3.5 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
9. Put the four plastic plugs on the screws.
10. Hold the tray top with its metal inserts facing downward. Put the
tray top on the table.
24
Repairs - Table and backrest unit

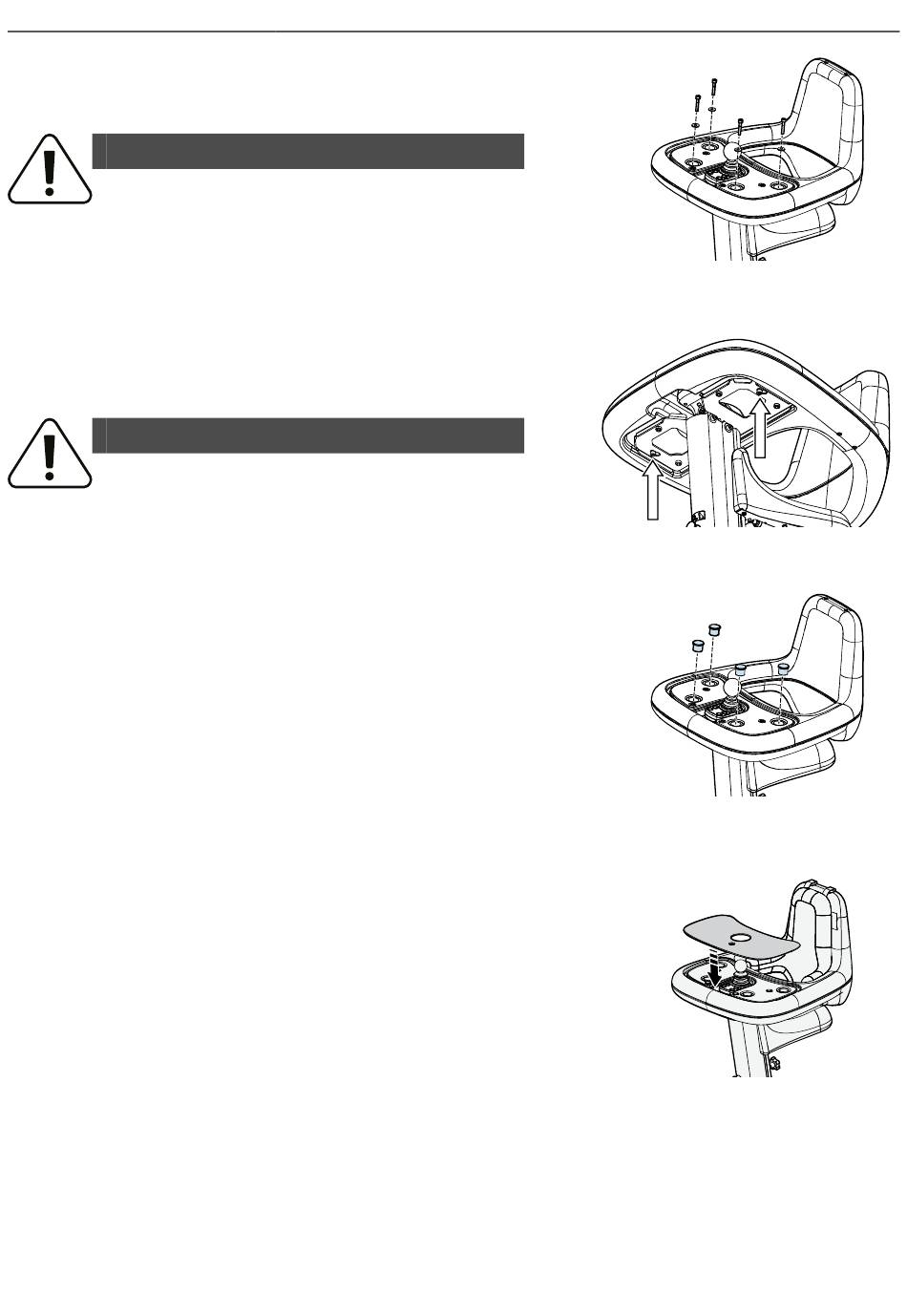

Figure 30. Attach the table to the bracket with the four
screws and washers.
Figure 31. Tighten the two screws.
Figure 32. Put the plastic plugs on the screws.
Figure 33. Attach the tray top.
