Installing the start button
• Torque wrench.
• Torx T8 socket.
• Pliers.
1. Turn the start button with its connectors facing downward.
2. Pull the cable through the hole of the bottom cover and snap the
start button in place.
3. Connect the cable from the start button to the battery saving
module.
1. Install the top cover. For instructions, see
4.6.1.2 Installing the top cover .
62
Repairs - Circuit breakers

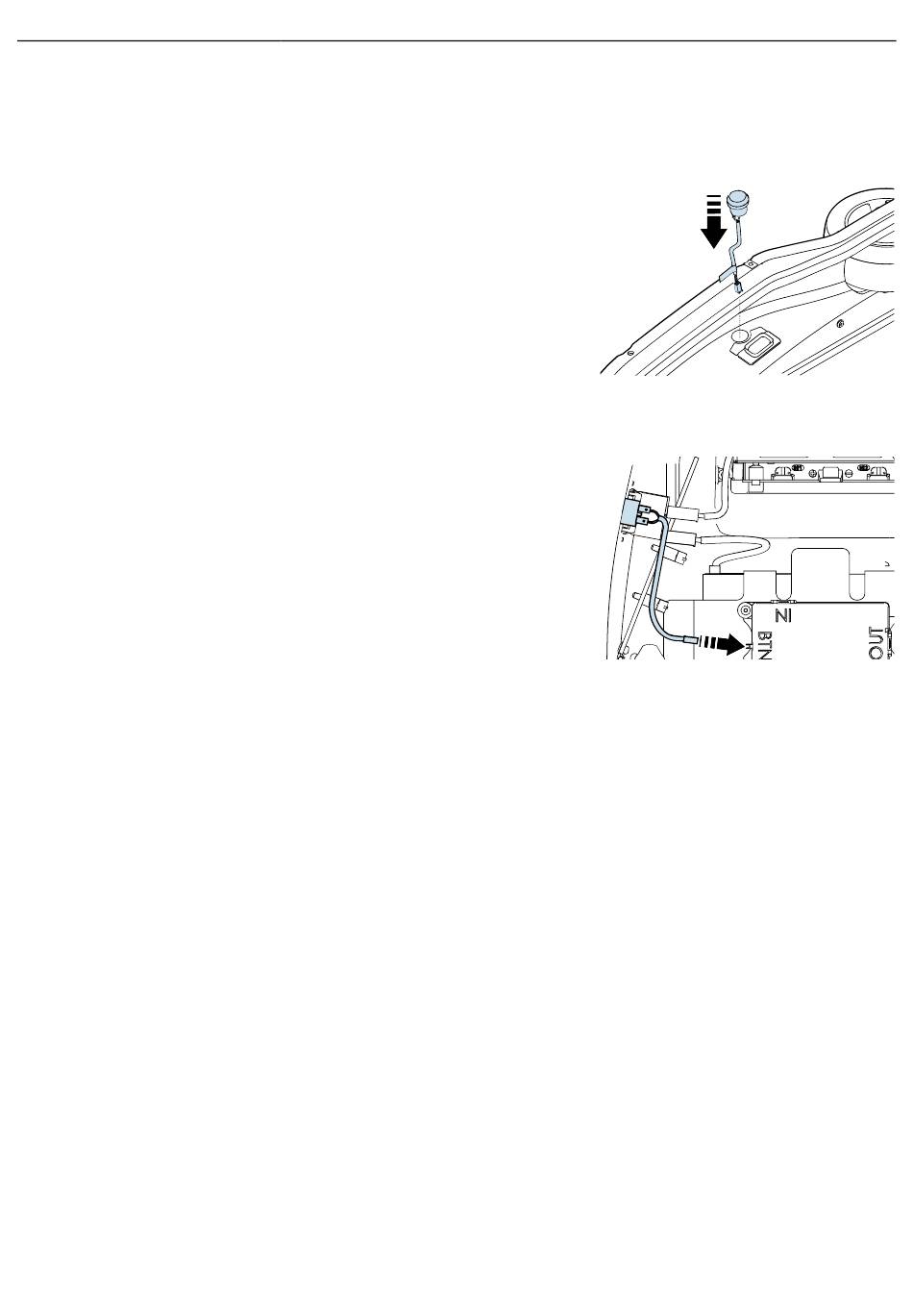

Figure 117. Put the start button in place.
Figure 118. Attach the start button.
