Explorer Mini
4.13.2

Installing the nVR2 power module

The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 4 mm.
1. Attach the nVR2 power module to the metal chassis with the two
screws. Tightening torque: 4.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
2. Connect the cable of each drive unit and the cable of the batteries to
the nVR2 power module.
3. Attach the cable to the control panel to the cable holders.
4. Attach the top cover. For instructions, see
4.6.1.2 Installing the top cover .
68
Repairs - nVR2 power module

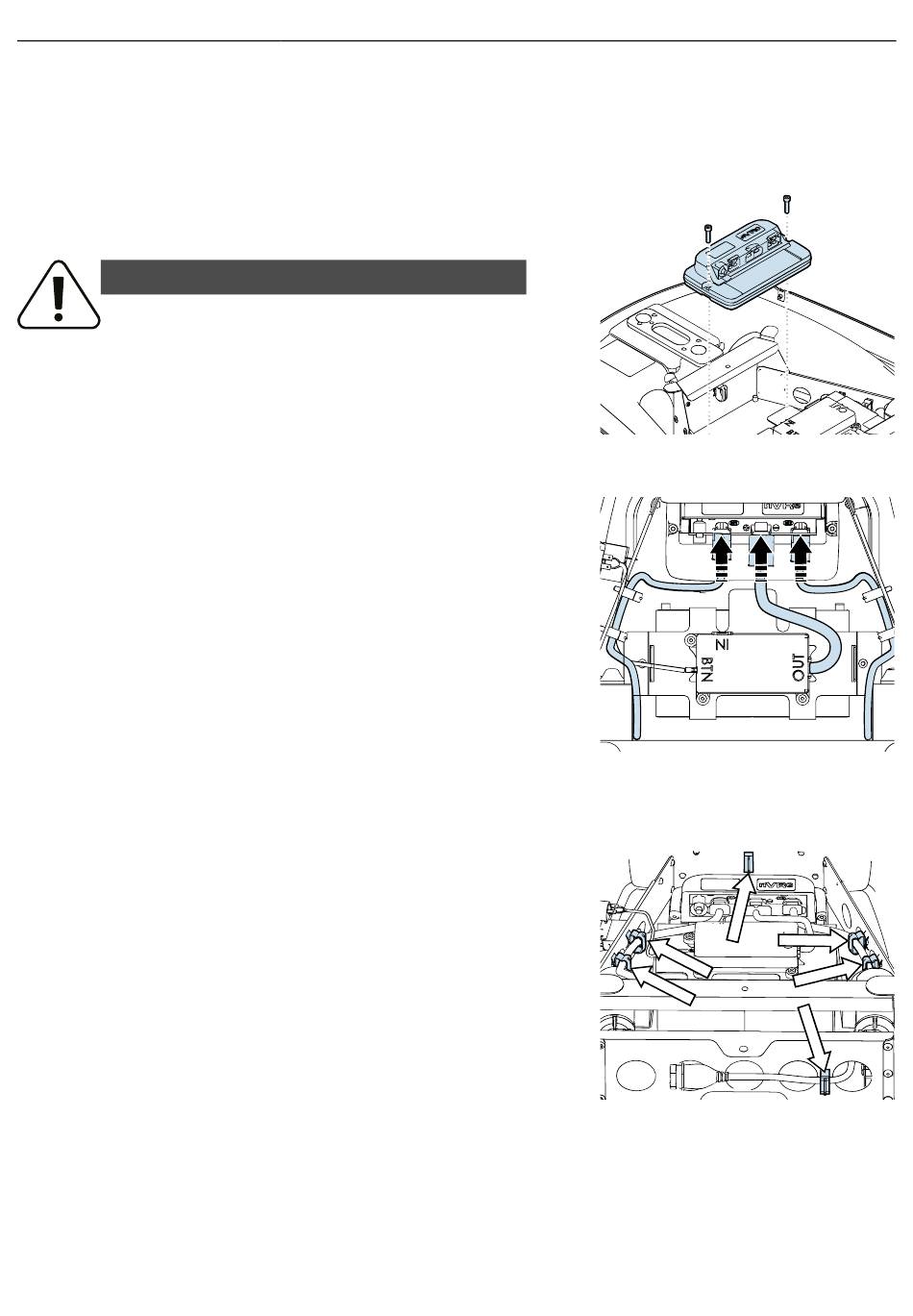

Figure 132. Attach the nVR2 power module.
Figure 133. Connect the three cables to the nVR2
power module.
Figure 134. Attach the cable to the control panel to the
cable holders.
