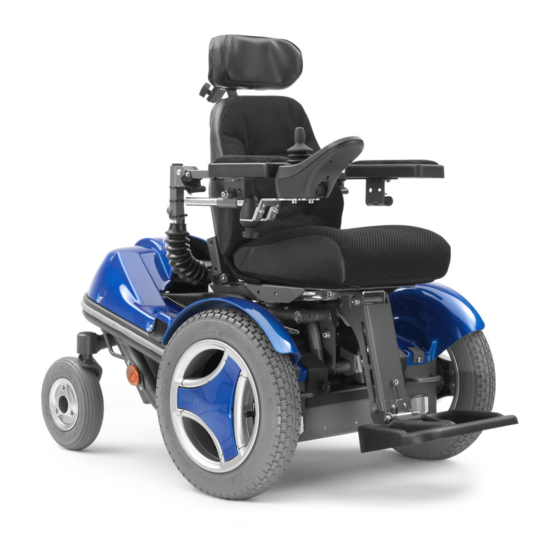

Permobil Koala R-Net Quick Reference Card

ICS –Quick reference card
V4.10 dd 12-11-2015
General Settings
User weight
Entry: Button 2 and 4
(all led's green
– led 7 off / led 8 flashes red)
Setting: Button 1 or 5
Save: Button 8 (2 sec)
LED indication level
Entry: Button 2 and 4
(all led's green –
led 7 off / led 8 flashes red)
Setting: Button 3 or 7
Save: Button 8 (2 sec)
Switch box Layout
Entry: Button 1 and 3
(all led's green 1
– led 7 flashes green
/led 8 cont. red)
2
Setting: Button 1 or 5
3
Save: Button 8 (2 sec)
4
Note:
*1
Only for CorpusVS
5
6
7
12
Other General Setting
Entry: Button 2, 7 and 8
(all led's green –
led 7 and 8 toggle green)
Next page: Button 4
Prev. page: Button 8
Page 1: Led 7 and 8
toggle green
Page 2: Led 7 flashes green
and Led 8 Off
Page 3: Led 7 cont. green
and Led 8 Off
Save: No action required
Corpus II seat
Legrest angle for ¼ speed
(rear-/mid-wheel driven chairs)
Entry: Button 1, 2 and 7
(all led's green – led 7 flashes red
/led 8 flashes green)
Setting: Button 1 or 5
Save: Button 8 (2 sec)
Corpus 3G/HD/APE/VS
Seat depth
Entry: Button 3, 4 and 6
(all led's green – led 7 flashes green
/led 8 flashes red)
Setting: Button 1 or 5
Save: Button 8 (2 sec)
Legrest angle offset for ¼ speed
(rear-/mid-wheel driven chairs)
Entry: Button 1, 2 and 7
(all leds green – led 7 flashes red
/led 8 flashes green)
Setting: Button 1 or 5
Save: Button 8 (2 s
ec)
IRM position (Corpus 3G/HD/APE/VS)
Independent Repositioning Mode is
using/replacing Memory 3
Note: IRM needs to be enable (see above: Other
General Settings)
Entry: Button 5 and 7
(all led's green – led 8 flashes red/green)
Extra step for Corpus APE and Corpus VS only:
- Press button 7. (Led 7 will lit solid green)
For additional information see manual: OM_xx_ICS_OnBoard_Configuration (xx = Language code)
0-50 kg / 0-110 lb
51-75 kg / 111-165 lb
76-100 kg / 166-220 lb
101-120 kg / 121-265 lb
Level 1 All LEDs off.
Level 2 Only displays Green LEDs
Level 3 Only displays Solid LEDs
Level 4 All Indications Displayed
NOTE: Flashing RED LEDs (Actuator Errors) are displayed in every Indication Level.
CorpusAPE/CorpusVS CorpusII / Corpus3G
A
B
C
D
E
F
*1
G
L
Setting:
Page LED Button Green
1 1 1 Actuators blocked while driving
1 2 5 Low backrest installed (C3G)
1 3 2 -5 Tilt adapter installed
1 4 6 Pause tilt at 0º
1 5 3 Leg rest pauses before reducing speed
1 6 7 Enable IRM (Independent Repositioning Mode)
2 1 1 Push leg rest on
2 2 5 Push back on
2 3 2 Invert Elevator: up is rear button
2 4 6 Invert Tilt: forward is rear button
2 5 3 Invert Backrest: forward is rear button
2 6 7 Invert Leg rest: up is rear button
3 1 1 Leg rest linked to backrest
3º
6º
9º
12º
<470mm/18"
495mm/19"
520mm/20"
+12º
+9º
+=6º
Setting backwards position:
Button 1 or 5
Button 2 or 6
Button 3 or 7
Save: Button 4
121-135 kg / 266-300 lb
136-160 kg / 301-350 lb
161-180 kg / 351-400 lb
181-200 kg / 401-450 lb
No indications. (Use with "single page" layouts.)
No indication of Drive Speed or Actuator Limits.
No indication of Actuator Limits (Only Drive Speed.)
(Default Setting)
VS K450
A D
B E
C F
D G
M
L
15º
18º
21º
545mm/21"
570mm/22"
595mm/23"
+3º
0º
-3º
Setting forwards position:
Tilt
Legrest
Backrest
Save:
1 of 2
J
K
Red
Actuators enabled while driving
Standard (High) backrest installed
No -5 Tilt adapter installed
No pause Tilt at 0º
Leg rest does not pauses before reducing speed
Disable IRM (Independent Repositioning Mode)
Push leg rest off
Push back off
Invert Elevator: up is front button
Invert Tilt: forward is front button
Invert Backrest: forward is front button
Invert Leg rest: down is front button
Leg rest NOT linked to backrest
620mm/24"
-6º
-9º
-12º
Button 1 or 5 Tilt
Button 2 or 6 Legrest
Button 3 or 7 Backrest
Button 8
