Explorer Mini
3 Specifications
3.1
Overview

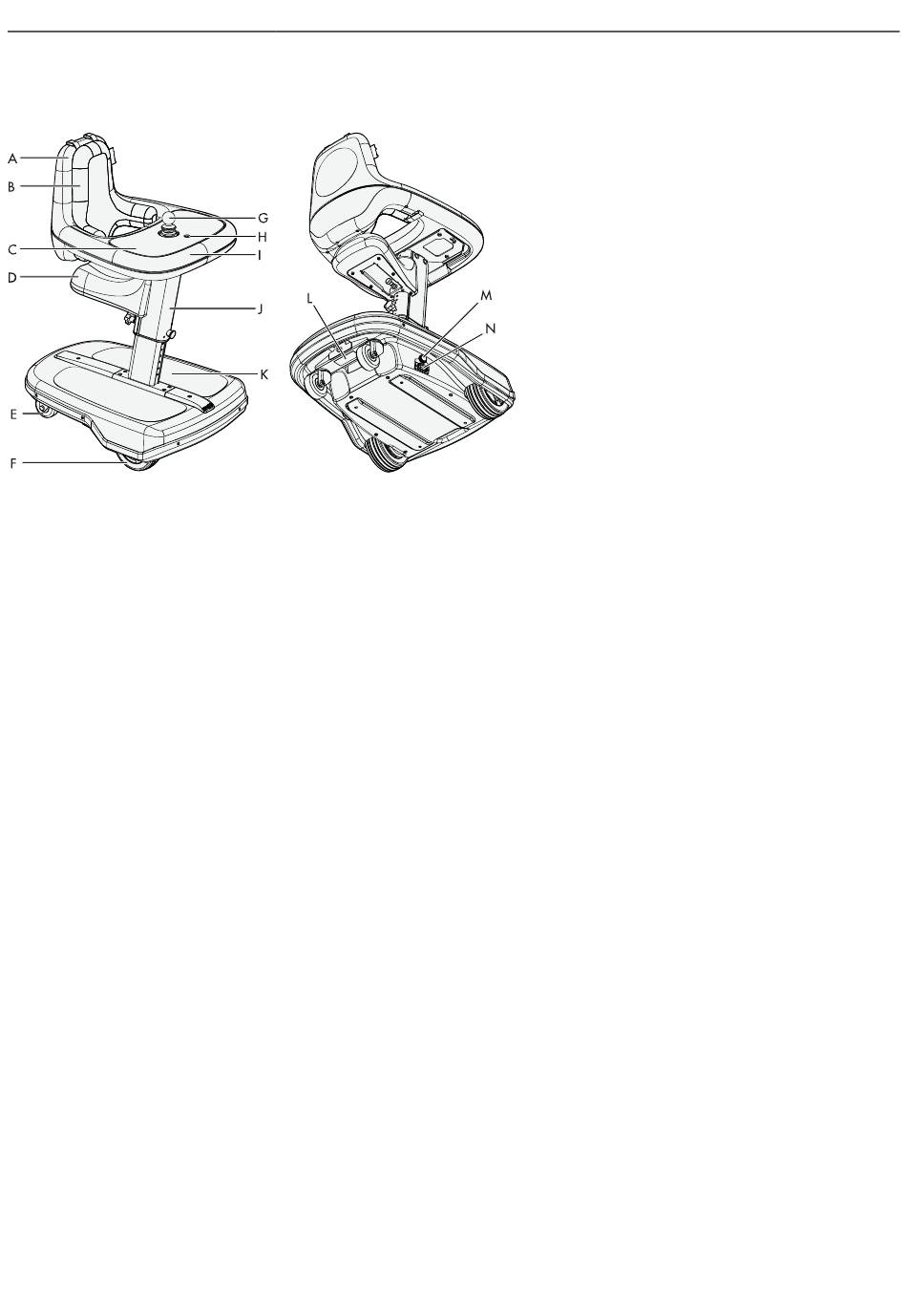

Figure 1. Explorer Mini overview.
12
Specifications - Overview
A. Backrest (part of the table and backrest unit)
B. Cushion
C. Tray top
D. Seat
E. Caster wheel
F. Drive wheel
G. Joystick
H. On/off button
I. Table (part of the table and backrest unit)
J. Column
K. Base module
L. Serial number
M. Start button
N. Main circuit breaker
