Installing the table and backrest unit

The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 4 mm.
• Screwdriver or pliers.
1. Put the Explorer Mini on a flat surface.
2. Press the on/off button (A) to turn off the power.
3. Turn off the main circuit breaker (B).
4. Make sure there is a gap (d) of 0.2" between the screw and the
plastic surface.
22
Repairs - Table and backrest unit

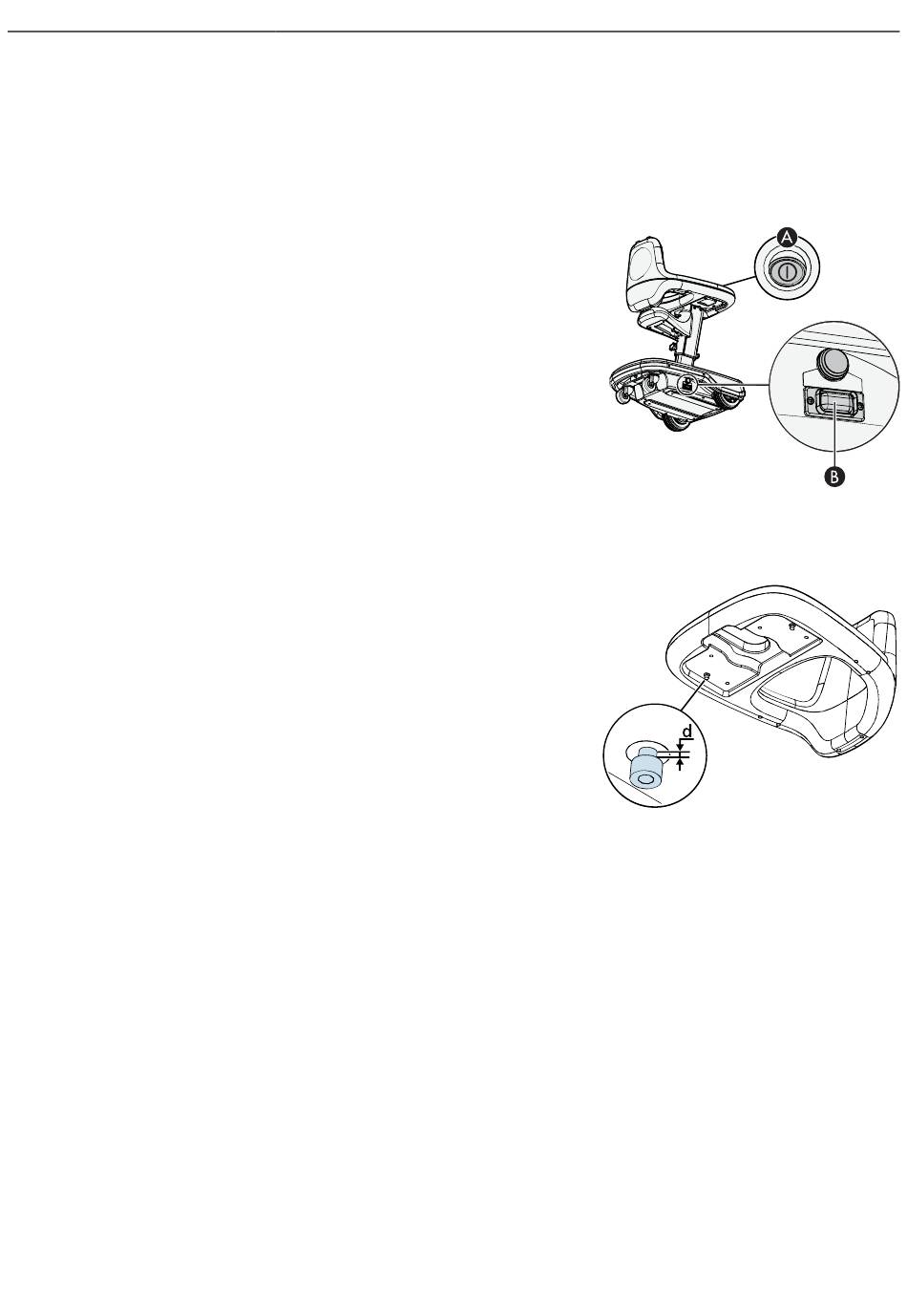

Figure 25. Positions for the on/off button (A) and the
main circuit breaker (B).
Figure 26. The gap (d) between the screw and the
plastic surface.
