3. Attach the bottom cover to the metal chassis with the six screws.
Tightening torque: 2.1 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
CAUTION!
Risk of injury
Make sure that the screw heads don´t protrude when the screws have been
tightened.
4. Attach the two rubber dampers and tighten them by hand.
5. Put the caster wheels assembly and the bracket to the top cover in
place and clamp them with one of the four screws. Make sure that
the holes of the bracket are aligned with the holes of the caster
wheels assembly.
Repairs - Base module

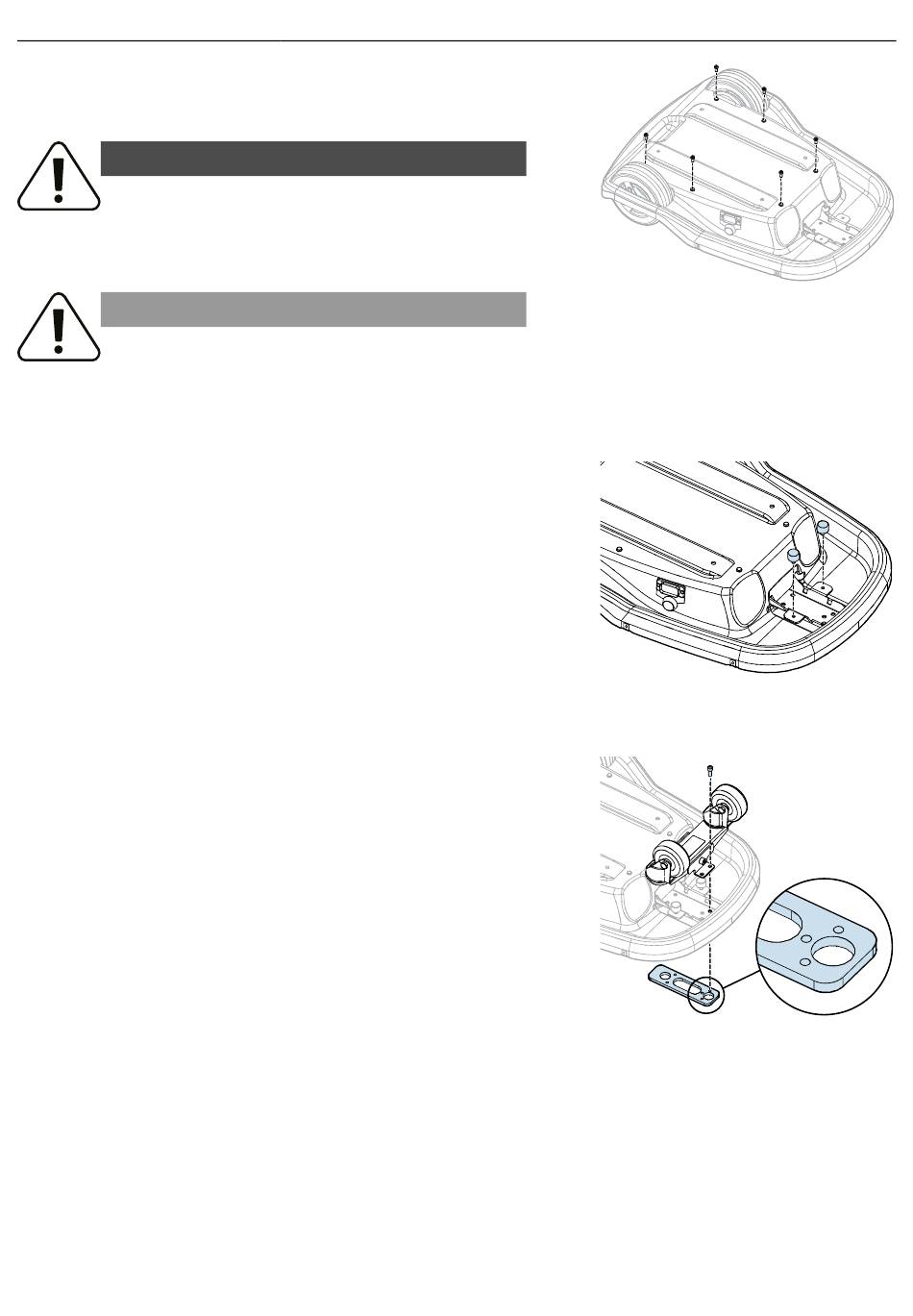

Figure 67. Attach the bottom cover to the metal chassis.
Figure 68. Attach the rubber dampers.
Figure 69. Put the caster wheels assembly and the
bracket for the top cover in place.
