Installing the drive wheels

The following tools are necessary for this task:
• Torque wrench.
• Allen socket, 5 mm.
1. For each drive wheel, put it onto the hub and attach it with the
three screws. Tightening torque: 7.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
2. Install the bottom cover. For instructions, see
4.6.2.2 Installing the bottom cover .
3. Install the top cover. For instructions, see
4.6.1.2 Installing the top cover .
Repairs - Drive wheels

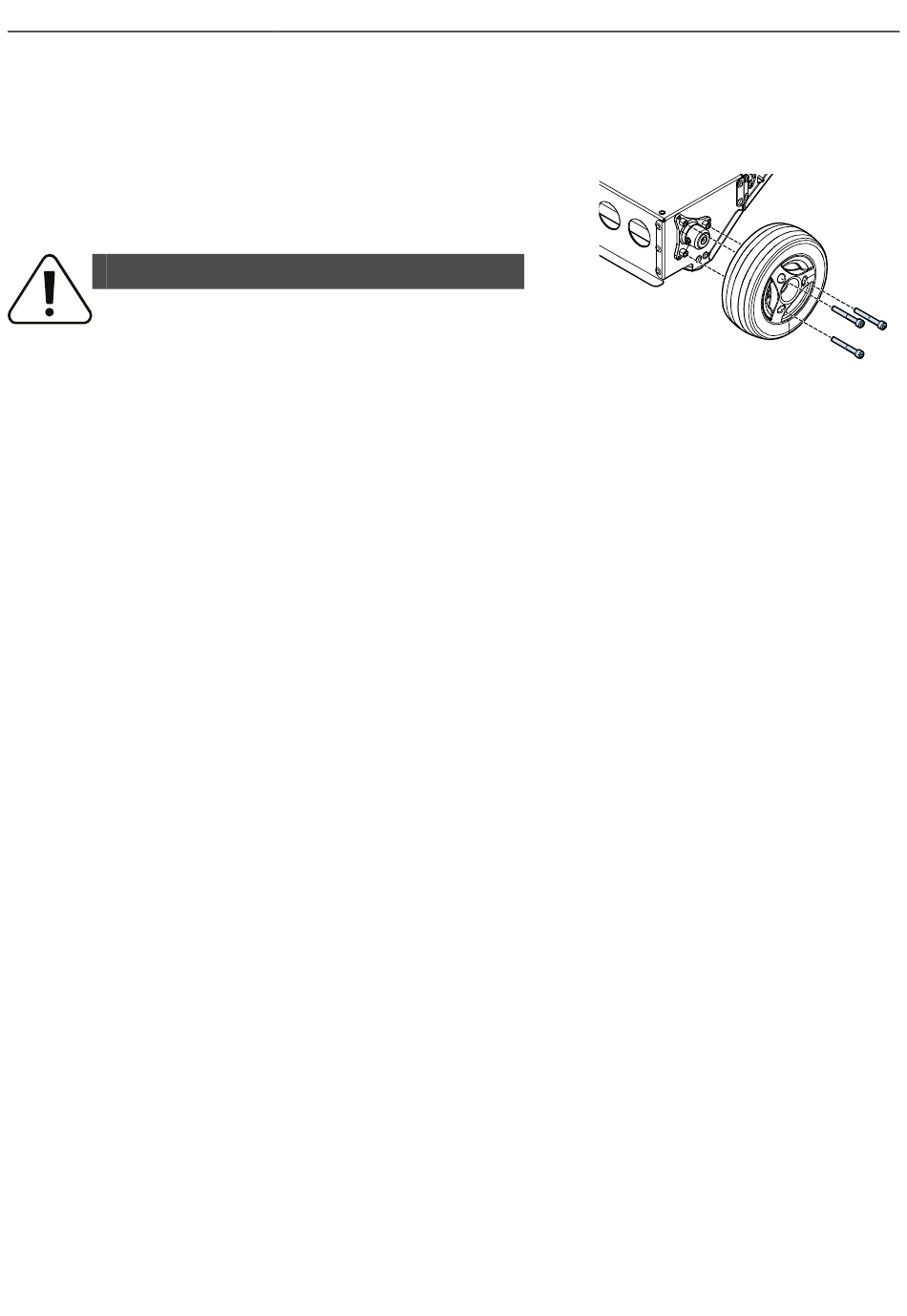

Figure 76. Attach each drive wheel with three screws.
