Seat

4.4.1

Removing the seat

An adult or health-care provider must decide if seat removal is
applicable for the child, taking into consideration his or her age and
capacity.
The center of gravity is affected when the seat is removed.
The table and backrest unit must be in the highest position before you
can remove the seat. Otherwise there will not be enough space to
remove the seat.
1. Put the table and backrest unit in its highest position. For
instructions on how to adjust the height of the table and backrest,
see 5.1.2.1 Adjusting the height of the table and backrest unit .
2. Remove the tightening knob (A) from the column.
3. Pull out the plunger knob (B).
4. Push down the seat and slide it off the column.
5. Put back the tightening knob and tighten it by hand.

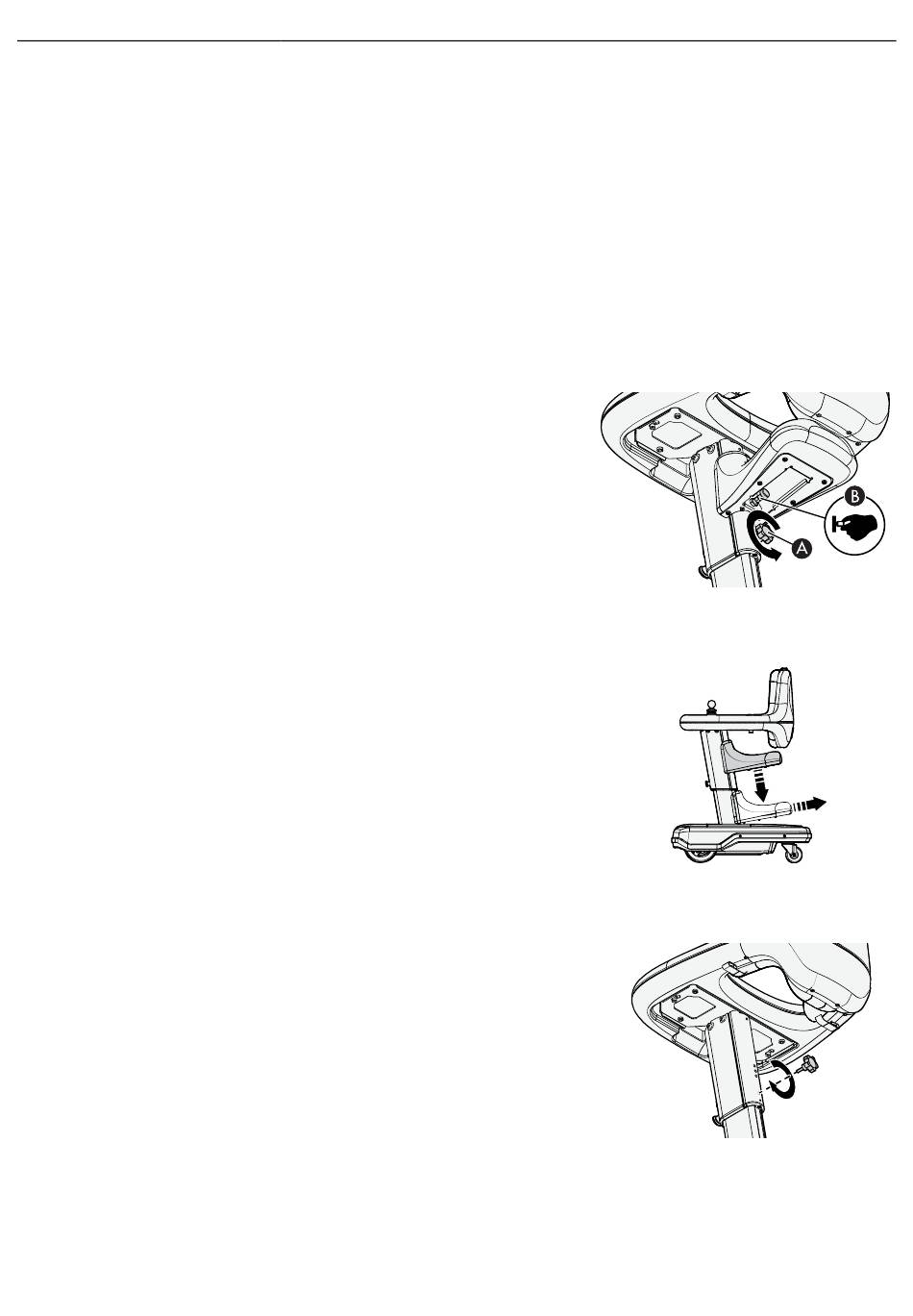

Figure 12. Prepare removal of the seat.
Figure 13. Remove the seat from the column.
Figure 14. Put back the tightening knob.
