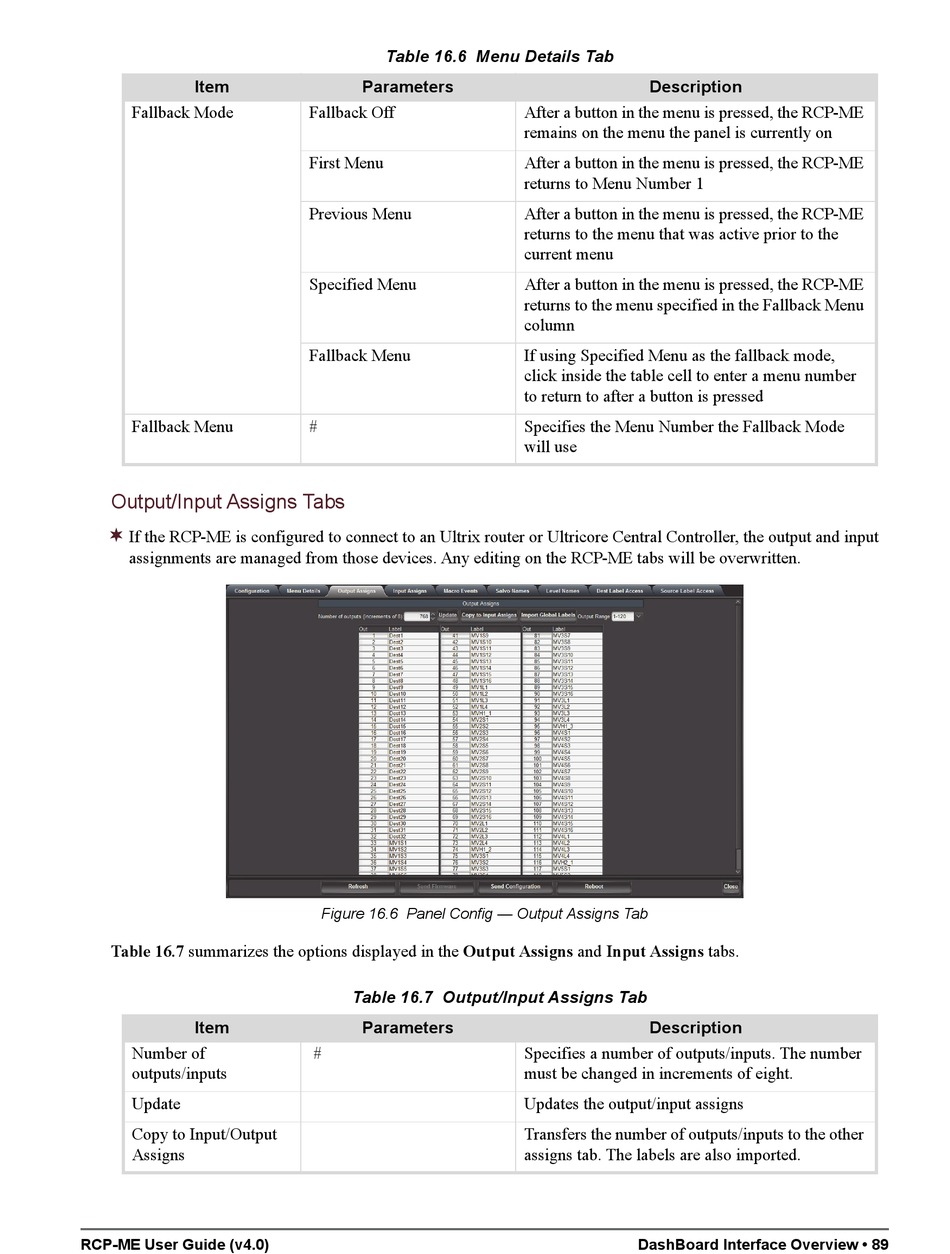

Item
Fallback Mode
Fallback Menu
Output/Input Assigns Tabs

If the RCP-ME is configured to connect to an Ultrix router or Ultricore Central Controller, the output and input
assignments are managed from those devices. Any editing on the RCP-ME tabs will be overwritten.
Table 16.7 summarizes the options displayed in the Output Assigns and Input Assigns tabs.
Item
Number of
outputs/inputs
Update
Copy to Input/Output
Assigns
RCP-ME User Guide (v4.0)
Table 16.6 Menu Details Tab
Parameters
Fallback Off
First Menu
Previous Menu
Specified Menu
Fallback Menu
#
Figure 16.6 Panel Config — Output Assigns Tab
Table 16.7 Output/Input Assigns Tab
Parameters
#
Description
After a button in the menu is pressed, the RCP-ME
remains on the menu the panel is currently on
After a button in the menu is pressed, the RCP-ME
returns to Menu Number 1
After a button in the menu is pressed, the RCP-ME
returns to the menu that was active prior to the
current menu
After a button in the menu is pressed, the RCP-ME
returns to the menu specified in the Fallback Menu
column
If using Specified Menu as the fallback mode,
click inside the table cell to enter a menu number
to return to after a button is pressed
Specifies the Menu Number the Fallback Mode
will use
Description
Specifies a number of outputs/inputs. The number
must be changed in increments of eight.
Updates the output/input assigns
Transfers the number of outputs/inputs to the other
assigns tab. The labels are also imported.
DashBoard Interface Overview • 89
