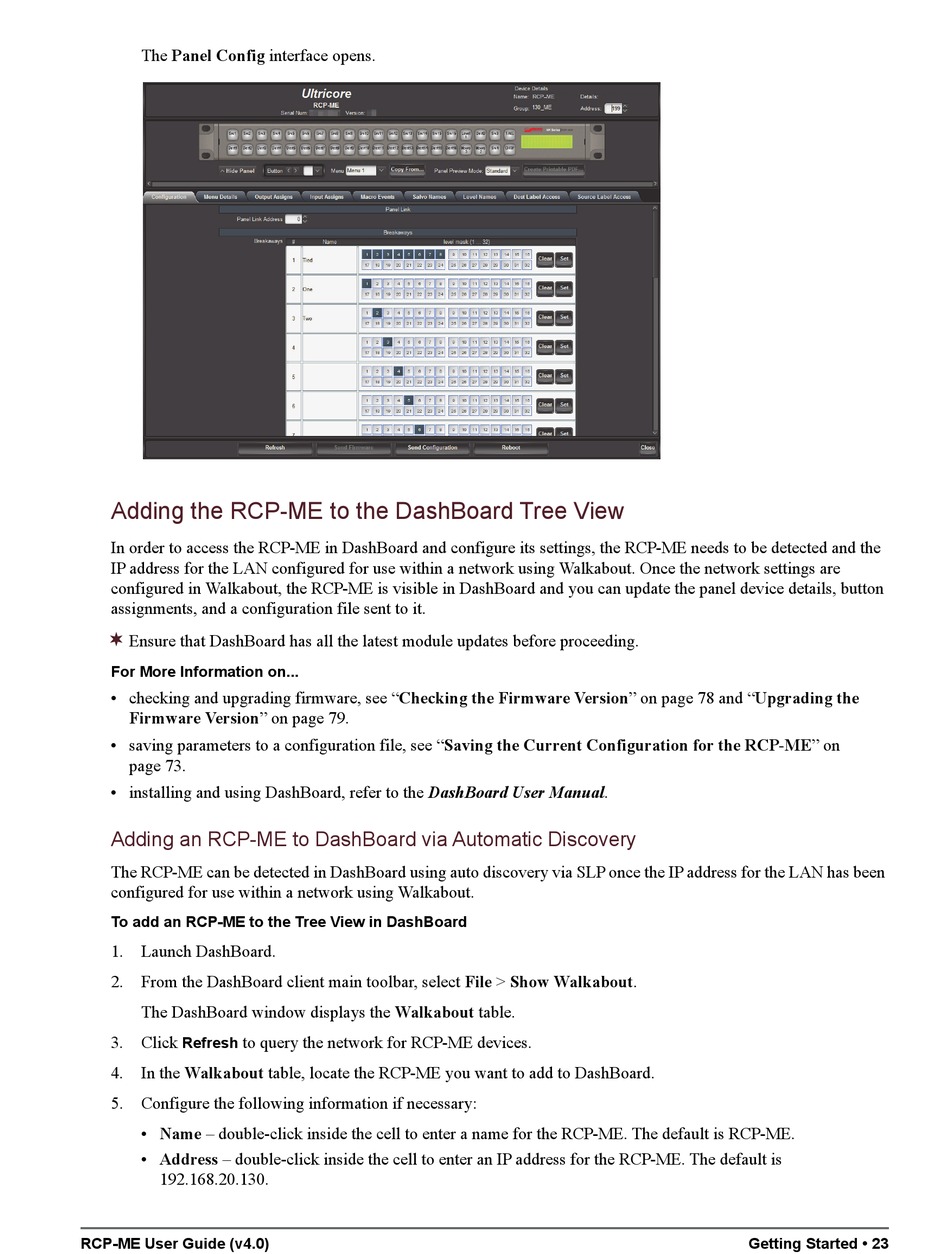

The Panel Config interface opens.

Adding the RCP-ME to the DashBoard Tree View

In order to access the RCP-ME in DashBoard and configure its settings, the RCP-ME needs to be detected and the
IP address for the LAN configured for use within a network using Walkabout. Once the network settings are
configured in Walkabout, the RCP-ME is visible in DashBoard and you can update the panel device details, button
assignments, and a configuration file sent to it.

Ensure that DashBoard has all the latest module updates before proceeding.
For More Information on...
• checking and upgrading firmware, see "Checking the Firmware Version" on page 78 and "Upgrading the
Firmware Version" on page 79.
• saving parameters to a configuration file, see "Saving the Current Configuration for the RCP-ME" on
page 73.
• installing and using DashBoard, refer to the DashBoard User Manual.
Adding an RCP-ME to DashBoard via Automatic Discovery
The RCP-ME can be detected in DashBoard using auto discovery via SLP once the IP address for the LAN has been
configured for use within a network using Walkabout.
To add an RCP-ME to the Tree View in DashBoard
1. Launch DashBoard.
2. From the DashBoard client main toolbar, select File > Show Walkabout.
The DashBoard window displays the Walkabout table.
3. Click to query the network for RCP-ME devices.
Refresh
4. In the Walkabout table, locate the RCP-ME you want to add to DashBoard.
5. Configure the following information if necessary:
• Name – double-click inside the cell to enter a name for the RCP-ME. The default is RCP-ME.
• Address – double-click inside the cell to enter an IP address for the RCP-ME. The default is
192.168.20.130.
RCP-ME User Guide (v4.0) Getting Started • 23
