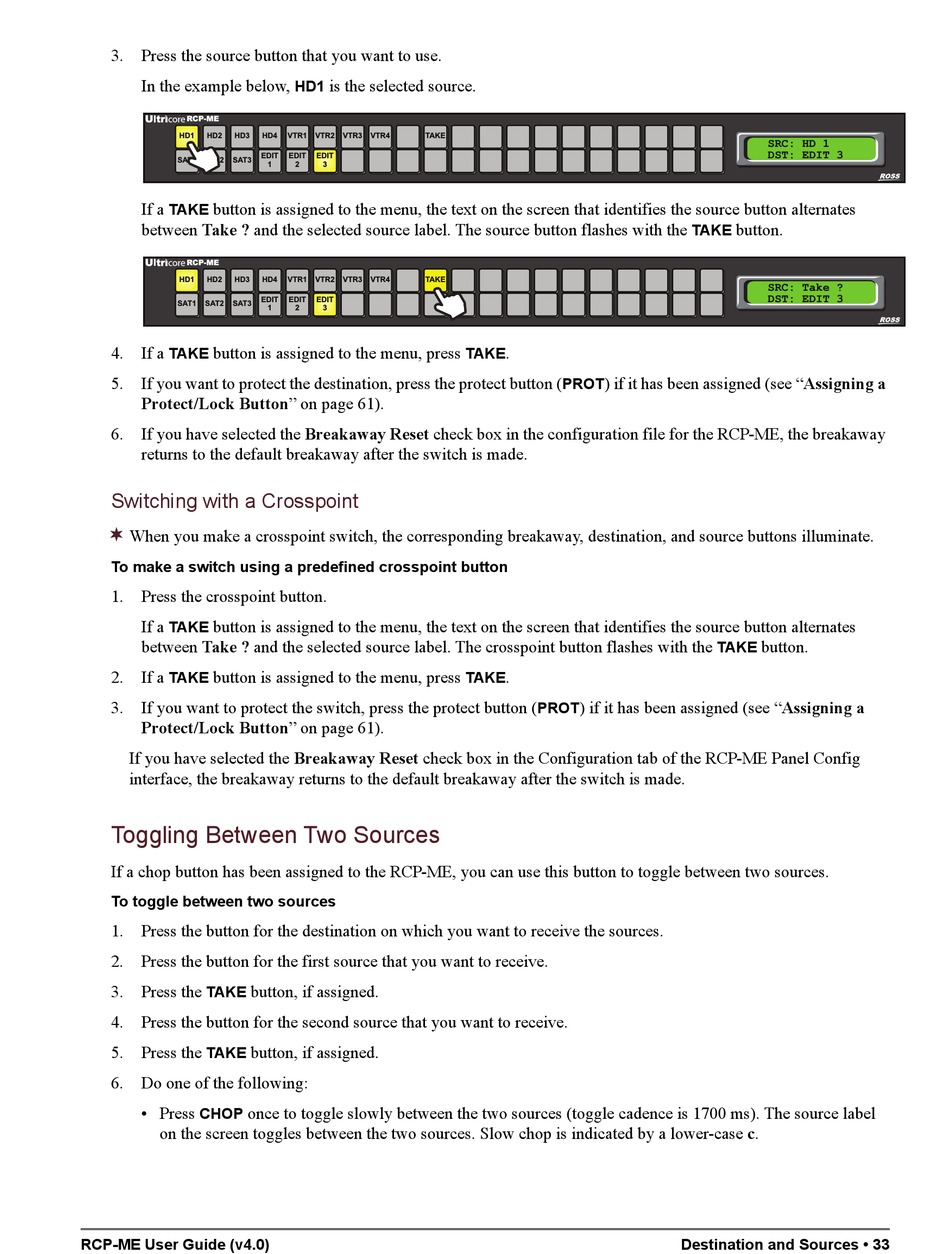

3. Press the source button that you want to use.
In the example below,
RCP-ME
HD1 HD2 HD3
SAT1 SAT2 SAT3
If a button is assigned to the menu, the text on the screen that identifies the source button alternates
TAKE
between Take ? and the selected source label. The source button flashes with the
RCP-ME
HD1 HD2 HD3
SAT1 SAT2 SAT3
4. If a button is assigned to the menu, press
TAKE
5. If you want to protect the destination, press the protect button (
Protect/Lock Button" on page 61).
6. If you have selected the Breakaway Reset check box in the configuration file for the RCP-ME, the breakaway
returns to the default breakaway after the switch is made.
Switching with a Crosspoint

When you make a crosspoint switch, the corresponding breakaway, destination, and source buttons illuminate.
To make a switch using a predefined crosspoint button
1. Press the crosspoint button.
If a button is assigned to the menu, the text on the screen that identifies the source button alternates
TAKE
between Take ? and the selected source label. The crosspoint button flashes with the
2. If a button is assigned to the menu, press
TAKE
3. If you want to protect the switch, press the protect button (
Protect/Lock Button" on page 61).
If you have selected the Breakaway Reset check box in the Configuration tab of the RCP-ME Panel Config
interface, the breakaway returns to the default breakaway after the switch is made.

Toggling Between Two Sources

If a chop button has been assigned to the RCP-ME, you can use this button to toggle between two sources.
To toggle between two sources
1. Press the button for the destination on which you want to receive the sources.
2. Press the button for the first source that you want to receive.
3. Press the button, if assigned.
TAKE
4. Press the button for the second source that you want to receive.
5. Press the button, if assigned.
TAKE
6. Do one of the following:
• Press once to toggle slowly between the two sources (toggle cadence is 1700 ms). The source label
CHOP
on the screen toggles between the two sources. Slow chop is indicated by a lower-case c.
RCP-ME User Guide (v4.0)
is the selected source.
HD1
HD4 VTR1 VTR2 VTR3 VTR4 TAKE
EDIT EDIT EDIT
1 2 3
HD4 VTR1 VTR2 VTR3 VTR4 TAKE
EDIT EDIT EDIT
1 2 3
.
TAKE
) if it has been assigned (see "Assigning a
PROT
.
TAKE
) if it has been assigned (see "Assigning a
PROT
SRC: HD 1 1 2 3 4
DST: EDIT 3
button.
TAKE
SRC: Take ?
1 2 3 4
DST: EDIT 3
button.
TAKE
Destination and Sources • 33
