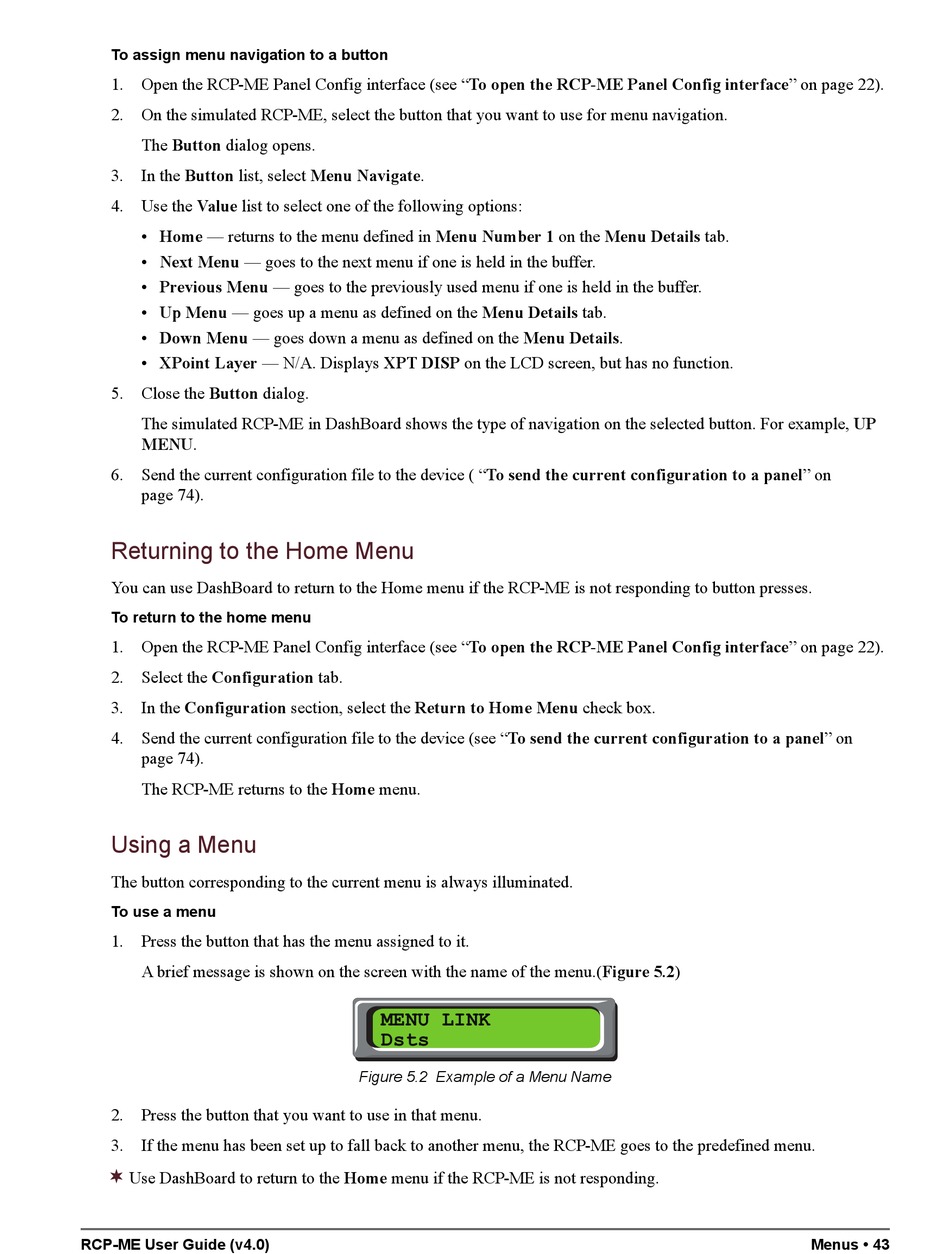

To assign menu navigation to a button
1. Open the RCP-ME Panel Config interface (see "To open the RCP-ME Panel Config interface" on page 22).
2. On the simulated RCP-ME, select the button that you want to use for menu navigation.
The Button dialog opens.
3. In the Button list, select Menu Navigate.
4. Use the Value list to select one of the following options:
• Home — returns to the menu defined in Menu Number 1 on the Menu Details tab.
• Next Menu — goes to the next menu if one is held in the buffer.
• Previous Menu — goes to the previously used menu if one is held in the buffer.
• Up Menu — goes up a menu as defined on the Menu Details tab.
• Down Menu — goes down a menu as defined on the Menu Details.
• XPoint Layer — N/A. Displays XPT DISP on the LCD screen, but has no function.
5. Close the Button dialog.
The simulated RCP-ME in DashBoard shows the type of navigation on the selected button. For example, UP
MENU.
6. Send the current configuration file to the device ( "To send the current configuration to a panel" on
page 74).

Returning to the Home Menu

You can use DashBoard to return to the Home menu if the RCP-ME is not responding to button presses.
To return to the home menu
1. Open the RCP-ME Panel Config interface (see "To open the RCP-ME Panel Config interface" on page 22).
2. Select the Configuration tab.
3. In the Configuration section, select the Return to Home Menu check box.
4. Send the current configuration file to the device (see "To send the current configuration to a panel" on
page 74).
The RCP-ME returns to the Home menu.

Using a Menu

The button corresponding to the current menu is always illuminated.
To use a menu
1. Press the button that has the menu assigned to it.
A brief message is shown on the screen with the name of the menu.(Figure 5.2)
2. Press the button that you want to use in that menu.
3. If the menu has been set up to fall back to another menu, the RCP-ME goes to the predefined menu.

Use DashBoard to return to the Home menu if the RCP-ME is not responding.
RCP-ME User Guide (v4.0)
MENU LINK
1 2 3 4
Dsts
Figure 5.2 Example of a Menu Name
Menus • 43
