In the event that the RCP-ME is unable to connect to a server or loses connectivity, it will attempt to connect to
the next server after 10 seconds. For each server that the RCP-ME fails to connect to, it will attempt to connect to
the next available server until it arrives back at the original server to which it attempted to connect.
Item
Servers
IP Address
Connected (read-only)
Connections Area
Displays the number of clients connected to the RCP-ME.
Bottom Toolbar
The bottom toolbar of the RCP-ME Connection Editor displays the following buttons:
• — Reverts to the configuration previously sent to the RCP-ME. The RCP-ME Connection Editor will
Refresh
display the last settings that were sent to the RCP-ME via the
• — Opens a file browser to select a software/firmware file to send to the RCP-ME.
Send Firmware
•
Send Configuration

All configuration items become active only after uploading by sending the configuration to the device.
• — Reboots the RCP-ME. This function does not clear the RCP-ME settings.
Reboot
• — Closes the RCP-ME Connection Editor in DashBoard.
Close

Panel Config Interface

The Panel Config interface enables you to setup device details, assign panel button, menus, I/O, and macros.
RCP-ME User Guide (v4.0)
Table 16.3 Servers to Connect to Area
Parameters
#
#.#.#.#
Selected
Cleared
— Uploads the settings to the RCP-ME.

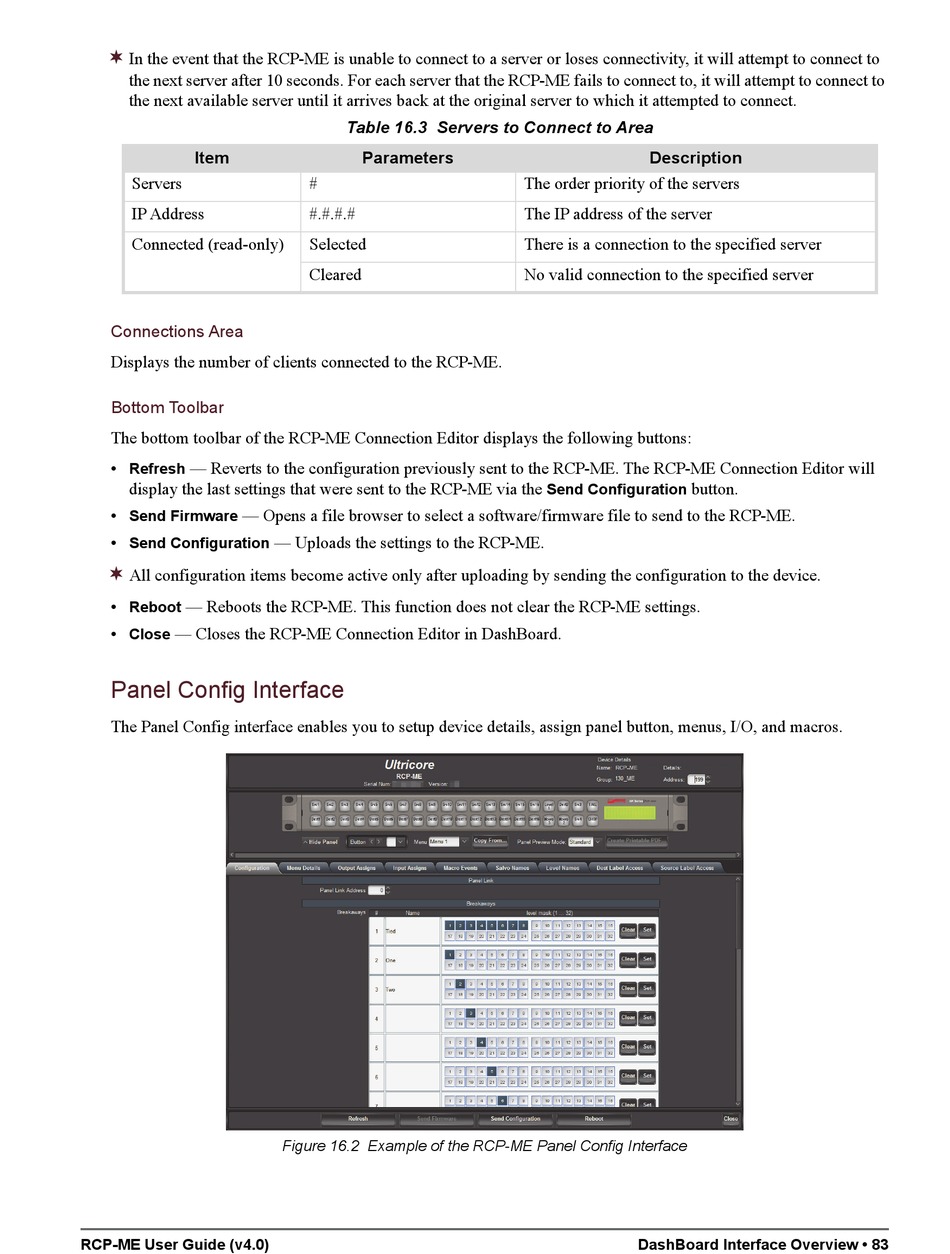

Figure 16.2 Example of the RCP-ME Panel Config Interface
Description
The order priority of the servers
The IP address of the server
There is a connection to the specified server
No valid connection to the specified server
button.
Send Configuration
