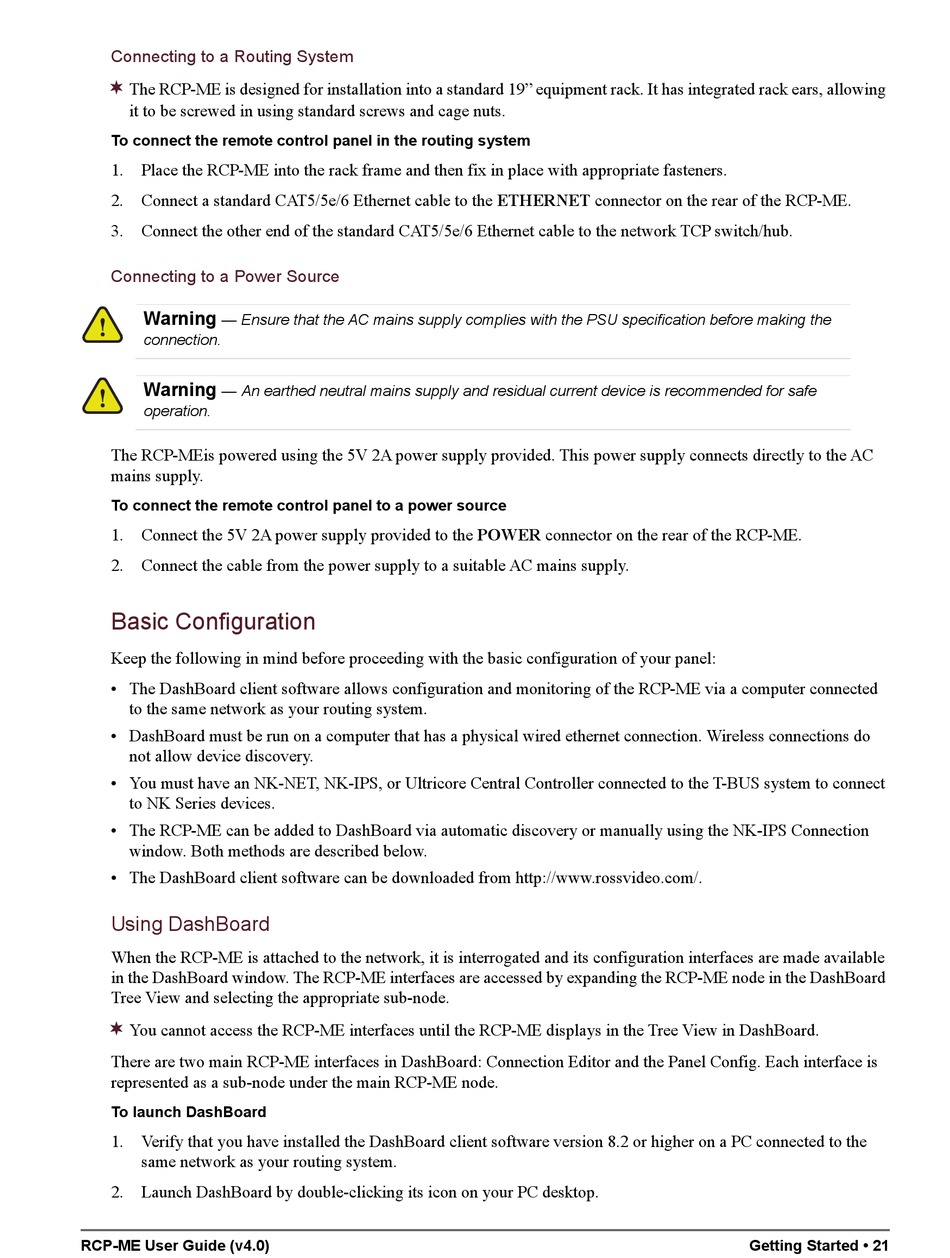

Connecting to a Routing System
The RCP-ME is designed for installation into a standard 19" equipment rack. It has integrated rack ears, allowing
it to be screwed in using standard screws and cage nuts.
To connect the remote control panel in the routing system
1.
Place the RCP-ME into the rack frame and then fix in place with appropriate fasteners.
2.
Connect a standard CAT5/5e/6 Ethernet cable to the ETHERNET connector on the rear of the RCP-ME.
3.
Connect the other end of the standard CAT5/5e/6 Ethernet cable to the network TCP switch/hub.
Connecting to a Power Source
Warning
— Ensure that the AC mains supply complies with the PSU specification before making the
connection.
Warning
— An earthed neutral mains supply and residual current device is recommended for safe
operation.
The RCP-MEis powered using the 5V 2A power supply provided. This power supply connects directly to the AC
mains supply.
To connect the remote control panel to a power source
1.
Connect the 5V 2A power supply provided to the POWER connector on the rear of the RCP-ME.
2.
Connect the cable from the power supply to a suitable AC mains supply.

Basic Configuration

Keep the following in mind before proceeding with the basic configuration of your panel:
• The DashBoard client software allows configuration and monitoring of the RCP-ME via a computer connected
to the same network as your routing system.
• DashBoard must be run on a computer that has a physical wired ethernet connection. Wireless connections do
not allow device discovery.
• You must have an NK-NET, NK-IPS, or Ultricore Central Controller connected to the T-BUS system to connect
to NK Series devices.
• The RCP-ME can be added to DashBoard via automatic discovery or manually using the NK-IPS Connection
window. Both methods are described below.
• The DashBoard client software can be downloaded from http://www.rossvideo.com/.
Using DashBoard
When the RCP-ME is attached to the network, it is interrogated and its configuration interfaces are made available
in the DashBoard window. The RCP-ME interfaces are accessed by expanding the RCP-ME node in the DashBoard
Tree View and selecting the appropriate sub-node.
You cannot access the RCP-ME interfaces until the RCP-ME displays in the Tree View in DashBoard.
There are two main RCP-ME interfaces in DashBoard: Connection Editor and the Panel Config. Each interface is
represented as a sub-node under the main RCP-ME node.
To launch DashBoard
1.
Verify that you have installed the DashBoard client software version 8.2 or higher on a PC connected to the
same network as your routing system.
2.
Launch DashBoard by double-clicking its icon on your PC desktop.
RCP-ME User Guide (v4.0)
Getting Started • 21
