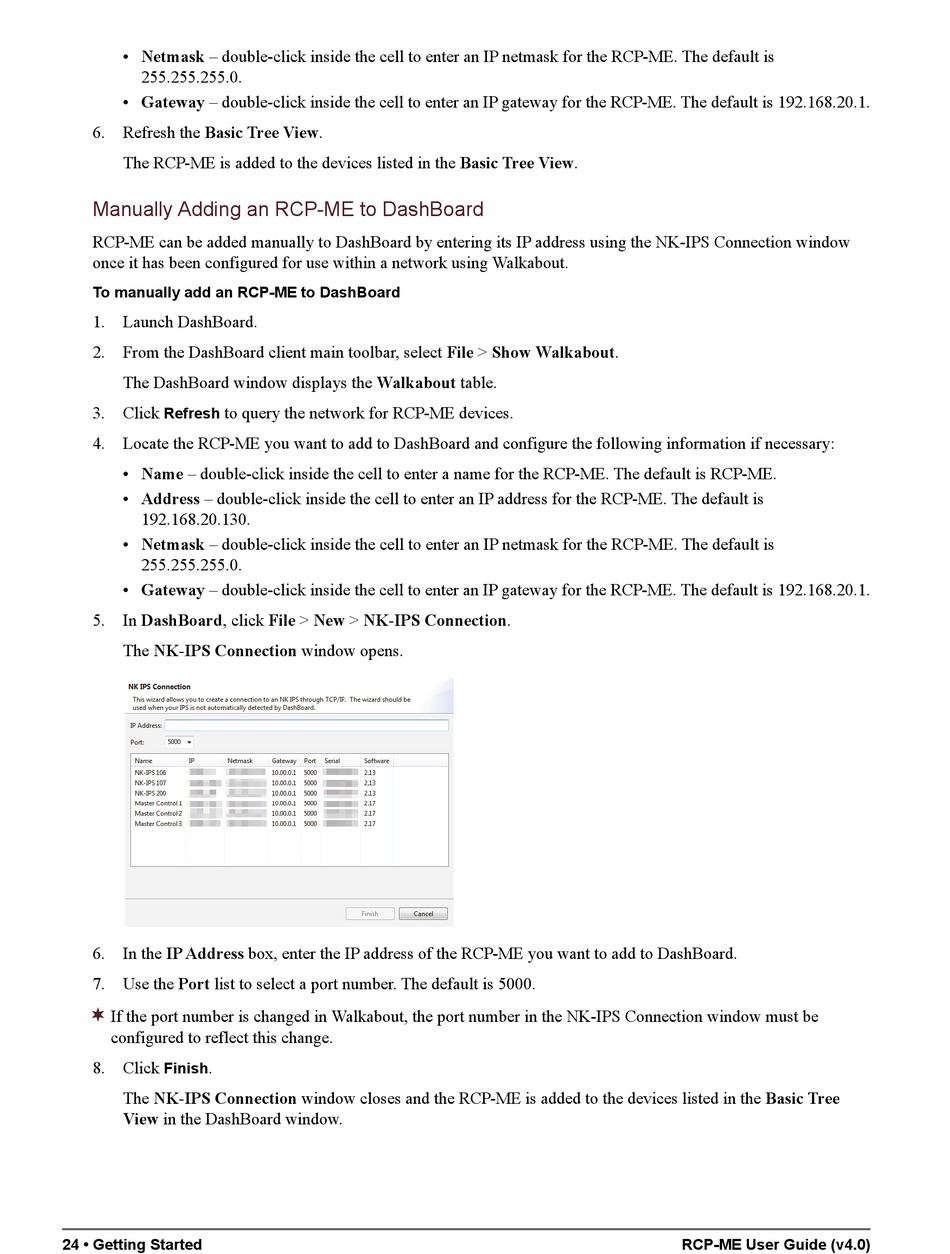

• Netmask – double-click inside the cell to enter an IP netmask for the RCP-ME. The default is
255.255.255.0.
• Gateway – double-click inside the cell to enter an IP gateway for the RCP-ME. The default is 192.168.20.1.
6. Refresh the Basic Tree View.
The RCP-ME is added to the devices listed in the Basic Tree View.
Manually Adding an RCP-ME to DashBoard
RCP-ME can be added manually to DashBoard by entering its IP address using the NK-IPS Connection window
once it has been configured for use within a network using Walkabout.
To manually add an RCP-ME to DashBoard
1. Launch DashBoard.
2. From the DashBoard client main toolbar, select File > Show Walkabout.
The DashBoard window displays the Walkabout table.
3. Click to query the network for RCP-ME devices.
Refresh
4. Locate the RCP-ME you want to add to DashBoard and configure the following information if necessary:
• Name – double-click inside the cell to enter a name for the RCP-ME. The default is RCP-ME.
• Address – double-click inside the cell to enter an IP address for the RCP-ME. The default is
192.168.20.130.
• Netmask – double-click inside the cell to enter an IP netmask for the RCP-ME. The default is
255.255.255.0.
• Gateway – double-click inside the cell to enter an IP gateway for the RCP-ME. The default is 192.168.20.1.
5. In DashBoard, click File > New > NK-IPS Connection.
The NK-IPS Connection window opens.
6. In the IP Address box, enter the IP address of the RCP-ME you want to add to DashBoard.
7. Use the Port list to select a port number. The default is 5000.

If the port number is changed in Walkabout, the port number in the NK-IPS Connection window must be
configured to reflect this change.
8. Click .
Finish
The NK-IPS Connection window closes and the RCP-ME is added to the devices listed in the Basic Tree
View in the DashBoard window.
