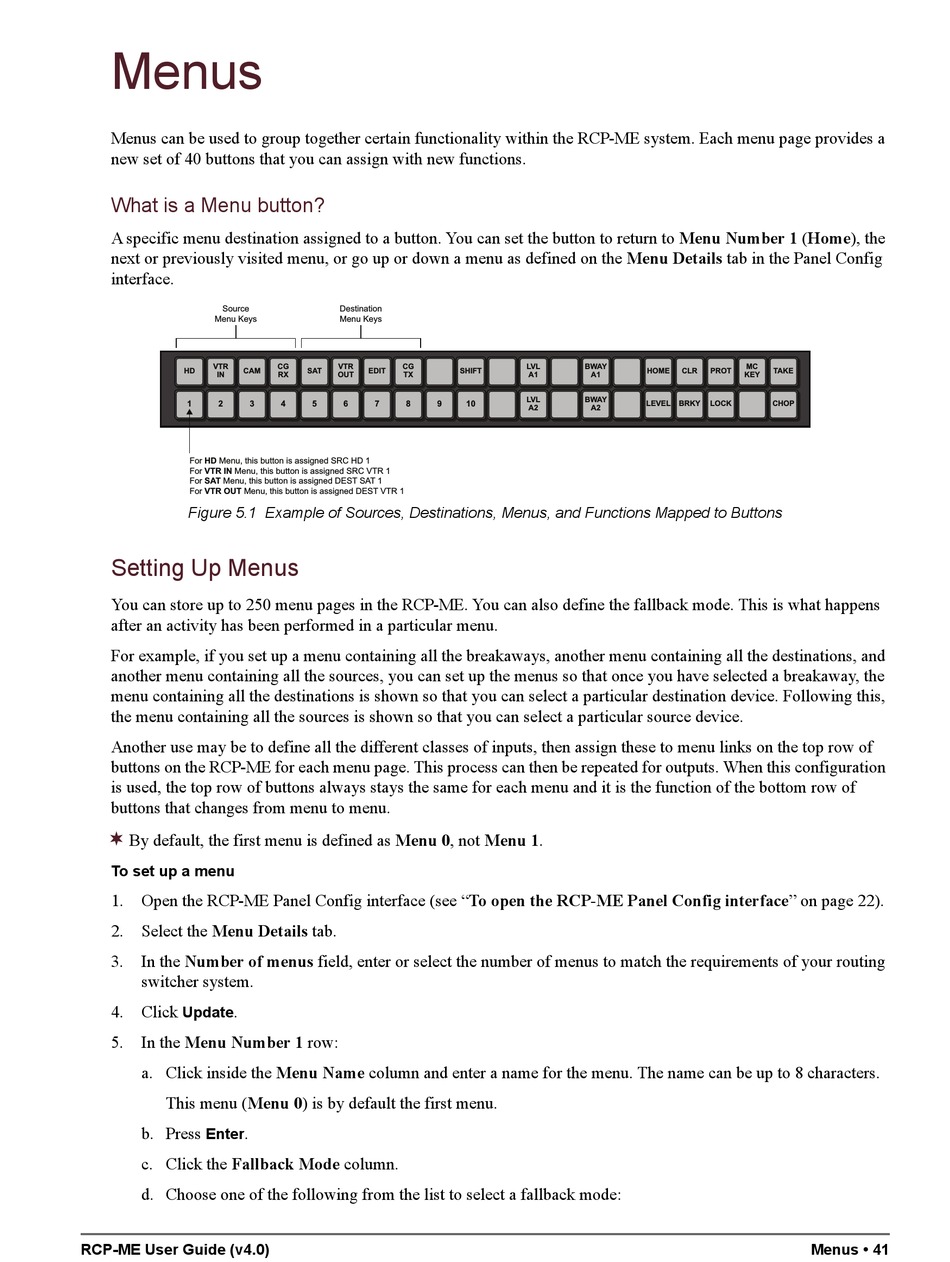

Menus

Menus can be used to group together certain functionality within the RCP-ME system. Each menu page provides a
new set of 40 buttons that you can assign with new functions.
What is a Menu button?
A specific menu destination assigned to a button. You can set the button to return to Menu Number 1 (Home), the
next or previously visited menu, or go up or down a menu as defined on the Menu Details tab in the Panel Config
interface.
Source
Menu Keys
VTR
HD CAM
IN
1 2 3
For HD Menu, this button is assigned SRC HD 1
For VTR IN Menu, this button is assigned SRC VTR 1
For SAT Menu, this button is assigned DEST SAT 1
For VTR OUT Menu, this button is assigned DEST VTR 1
Figure 5.1 Example of Sources, Destinations, Menus, and Functions Mapped to Buttons

Setting Up Menus

You can store up to 250 menu pages in the RCP-ME. You can also define the fallback mode. This is what happens
after an activity has been performed in a particular menu.
For example, if you set up a menu containing all the breakaways, another menu containing all the destinations, and
another menu containing all the sources, you can set up the menus so that once you have selected a breakaway, the
menu containing all the destinations is shown so that you can select a particular destination device. Following this,
the menu containing all the sources is shown so that you can select a particular source device.
Another use may be to define all the different classes of inputs, then assign these to menu links on the top row of
buttons on the RCP-ME for each menu page. This process can then be repeated for outputs. When this configuration
is used, the top row of buttons always stays the same for each menu and it is the function of the bottom row of
buttons that changes from menu to menu.

By default, the first menu is defined as Menu 0, not Menu 1.
To set up a menu
1. Open the RCP-ME Panel Config interface (see "To open the RCP-ME Panel Config interface" on page 22).
2. Select the Menu Details tab.
3. In the Number of menus field, enter or select the number of menus to match the requirements of your routing
switcher system.
4. Click .
Update
5. In the Menu Number 1 row:
a. Click inside the Menu Name column and enter a name for the menu. The name can be up to 8 characters.
This menu (Menu 0) is by default the first menu.
b. Press .
Enter
c. Click the Fallback Mode column.
d. Choose one of the following from the list to select a fallback mode:
RCP-ME User Guide (v4.0)
Destination
Menu Keys
CG VTR CG
SAT EDIT
RX OUT TX
4 5 6 7 8 9
LVL BWAY
SHIFT
A1 A1
LVL BWAY
10
A2 A2
MC
HOME CLR PROT TAKE
KEY
LEVEL BRKY LOCK CHOP
Menus • 41
