3. Button < > Field
Click the arrow buttons to select a button from the panel or use the list to select a specific button. The available
button functions are listed in the Button configuration box. Click a button on the simulated panel to open the
Button configuration box. Selecting a function from the button list will display the configurable aspects of that
particular function to the right of the list. The following universal fields are also available in the Button
configuration box:
› Auto-Advance — select this check box to automatically select the next button on the panel. This function
advances across the panel from left to right, top to bottom.
› Maintain Selection — select the this check box if the Auto-Advance check box is selected and you wish to
remain on the selected button.
› Quick Find — type a function into the box to rapidly access that function from the button list.
4. Menu Field
Use the list to select a specific menu configuration for the panel.
5. Copy From... Button
Click this button to open the Copy Menu From dialog box to select a menu configuration to copy.
6. Panel Preview Mode
Select between multi-page menu or Ultricore category assignment views.
Configuration Tab
The RCP-ME Panel Config interface displays a series of tabs below the simulated panel area. This section outlines
the options displayed when the Configuration tab is selected.
Table 16.5 summarizes the options displayed in the Configuration tab.
Area
Panel Link Panel Link Address
RCP-ME User Guide (v4.0)

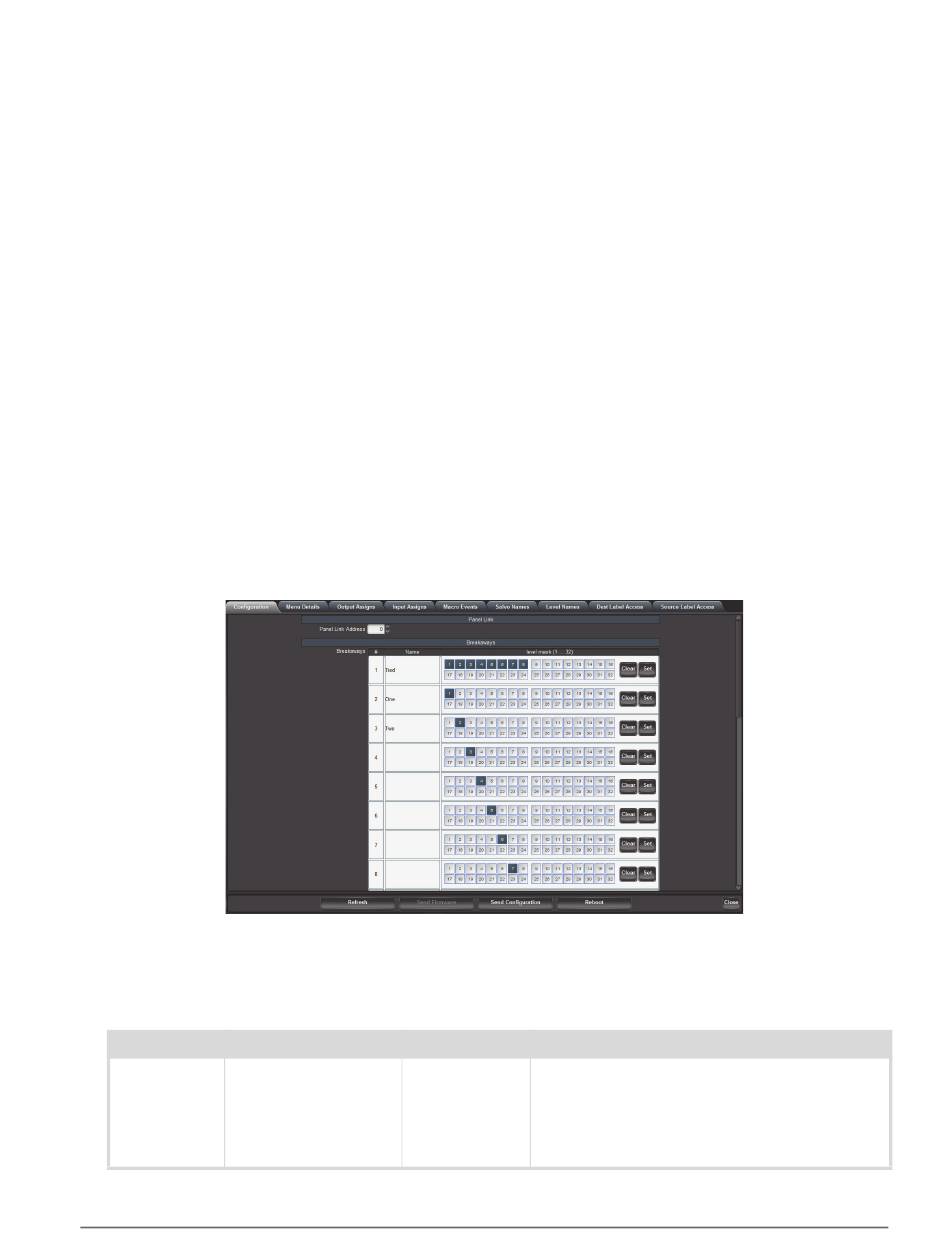

Figure 16.4 Panel Config — Configuration Tab
Table 16.5 Configuration Tab
Item Parameters
#
Description
Two or more remote control panels may be linked
to form a larger physical panel. This is known as
panel linking. Panels are linked when they have
the same master address and different panel link
addresses.
