System Architecture
System Architecture
This section describes the processor's configuration on the EZ-KIT Lite
board.

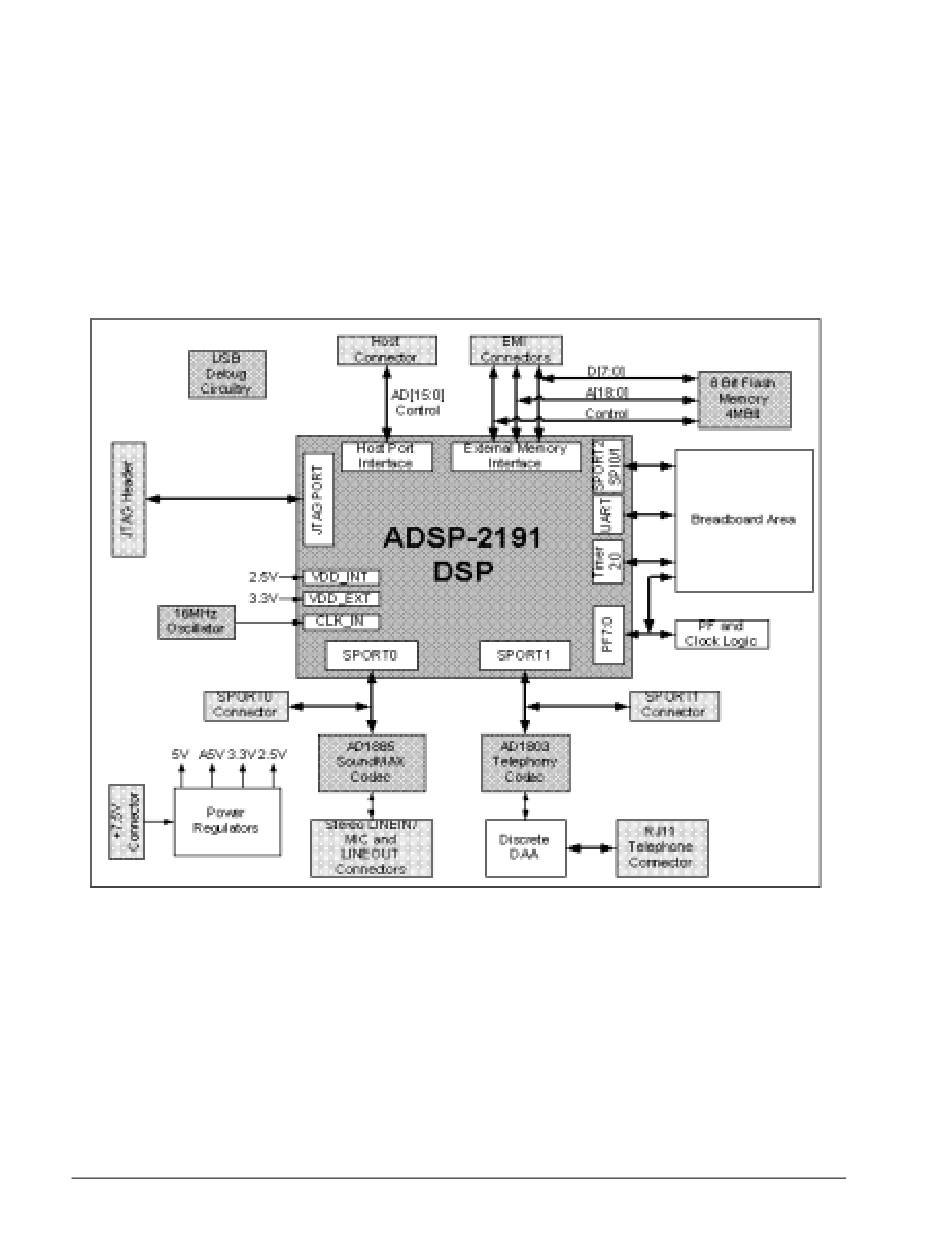

Figure 3-1. System Architecture
The EZ-KIT Lite has been designed to provide access to all the capabili-
ties of the ADSP-2191 processor. The EZ-KIT Lite board can be configured
to boot in all of the possible ADSP-2191 boot modes. For information about
configuring the boot mode, see
page
3-9.
3-2
"Boot Mode Select Switch (JP6)" on
ADSP-2191 EZ-KIT Lite Evaluation System Manual
