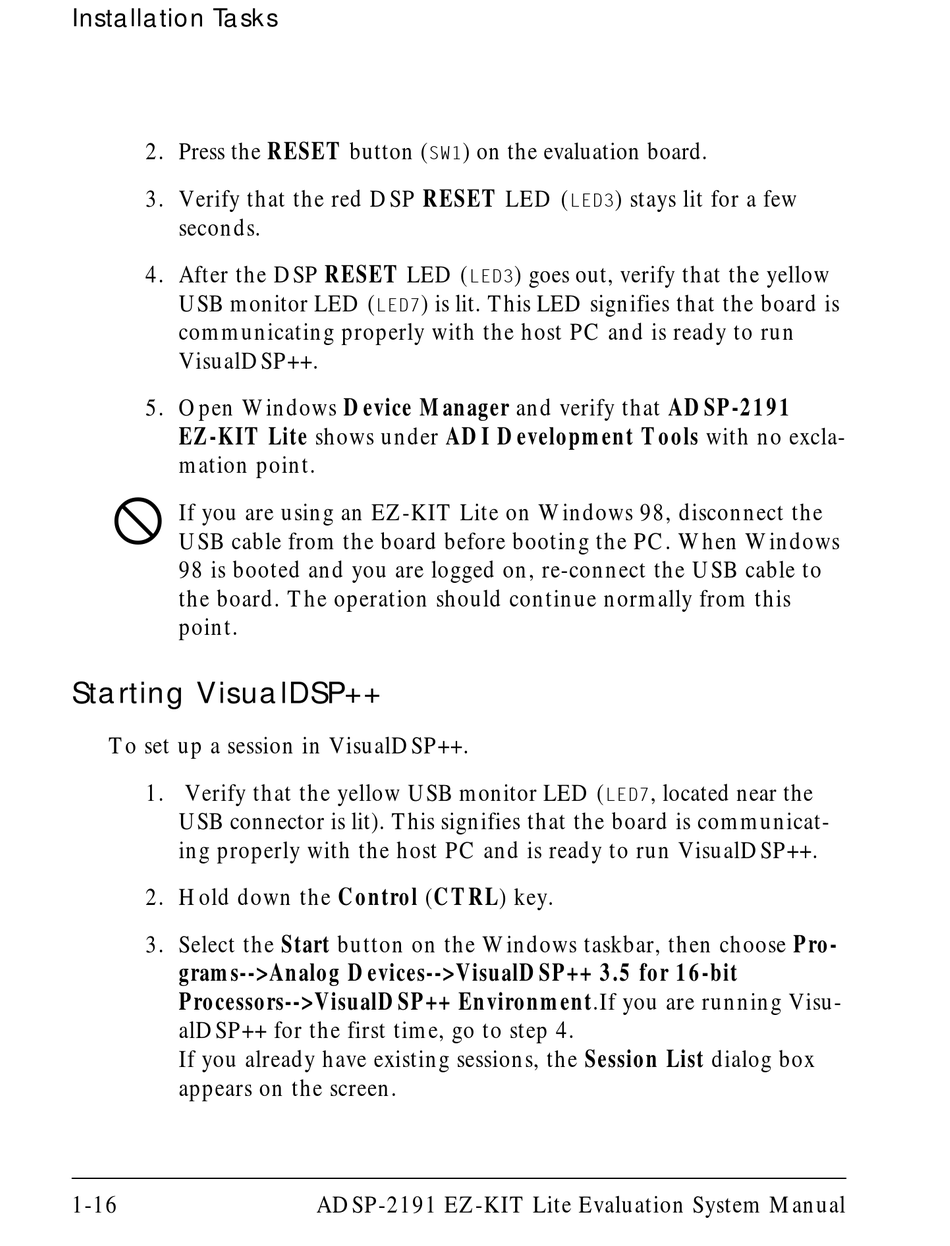

Installation Tasks
2. Press the RESET button (
3. Verify that the red DSP RESET LED (
seconds.
4. After the DSP RESET LED (
USB monitor LED (
communicating properly with the host PC and is ready to run
VisualDSP++.
5. Open Windows Device Manager and verify that ADSP-2191
EZ-KIT Lite shows under ADI Development Tools with no excla-
mation point.
#
If you are using an EZ-KIT Lite on Windows 98, disconnect the
USB cable from the board before booting the PC. When Windows
98 is booted and you are logged on, re-connect the USB cable to
the board. The operation should continue normally from this
point.

Starting VisualDSP++

To set up a session in VisualDSP++.
1. Verify that the yellow USB monitor LED (
USB connector is lit). This signifies that the board is communicat-
ing properly with the host PC and is ready to run VisualDSP++.
2. Hold down the Control (CTRL) key.
3. Select the Start button on the Windows taskbar, then choose Pro-
grams-->Analog Devices-->VisualDSP++ 3.5 for 16-bit
Processors-->VisualDSP++ Environment.If you are running Visu-
alDSP++ for the first time, go to step 4.
If you already have existing sessions, the Session List dialog box
appears on the screen.
1-16
) on the evaluation board.
SW1
LED3
) is lit. This LED signifies that the board is
LED7
ADSP-2191 EZ-KIT Lite Evaluation System Manual
) stays lit for a few
LED3
) goes out, verify that the yellow
, located near the
LED7
