is also routed to an off-board connector (

SPORT1

off-board connector, the codec must be disabled to avoid bus contention.

disables the codec by putting it into reset and disabling the codec outputs

from driving the processor's SPORT inputs. For more information about dis-

abling the codec, see

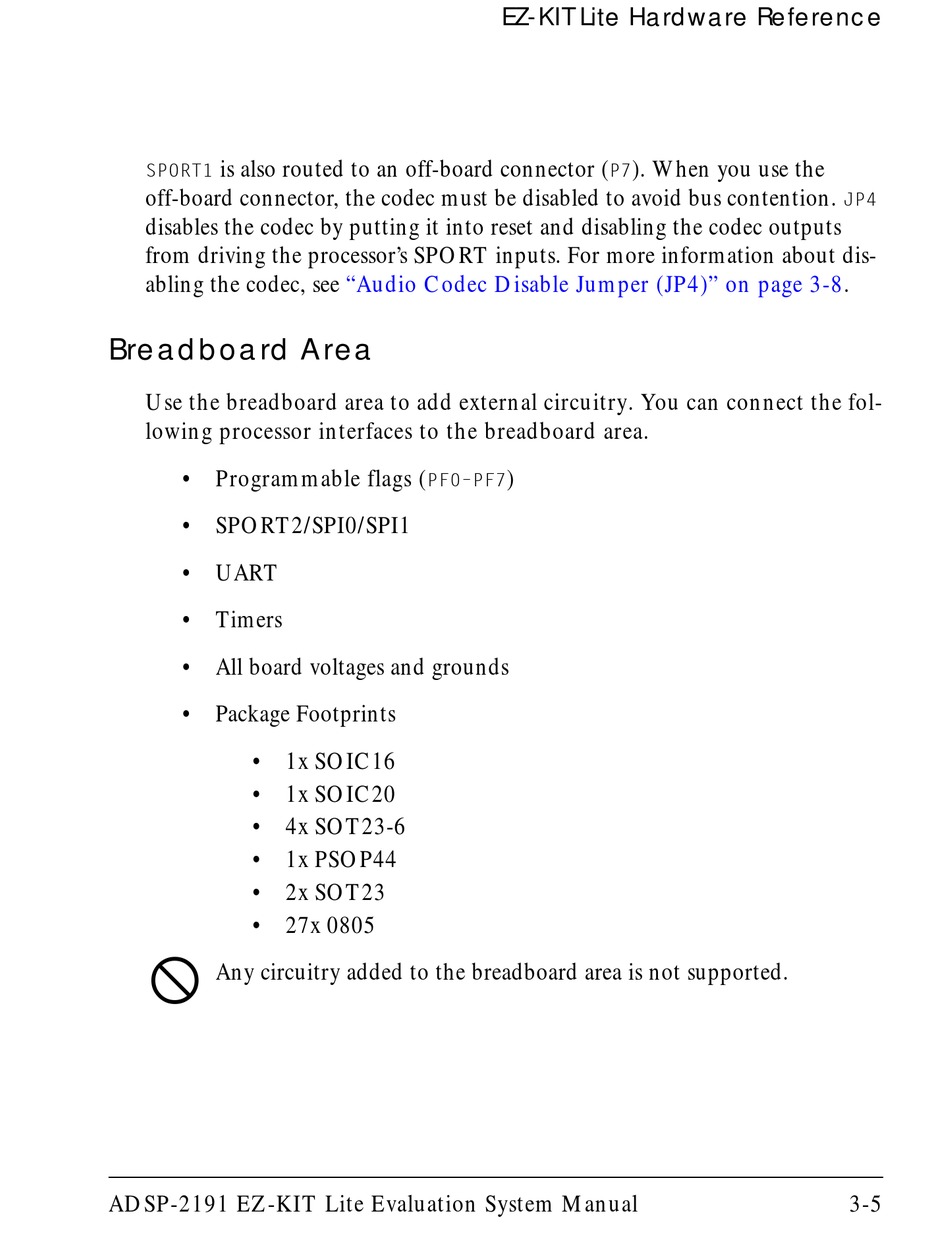

Breadboard Area

Use the breadboard area to add external circuitry. You can connect the fol-

lowing processor interfaces to the breadboard area.

• Programmable flags (

• SPORT2/SPI0/SPI1

• UART

• Timers

• All board voltages and grounds

• Package Footprints

• 1x SOIC16

• 1x SOIC20

• 4x SOT23-6

• 1x PSOP44

• 2x SOT23

• 27x 0805

Any circuitry added to the breadboard area is not supported.

ADSP-2191 EZ-KIT Lite Evaluation System Manual

EZ-KIT Lite Hardware Reference

"Audio Codec Disable Jumper (JP4)" on page

)

PF0–PF7

). When you use the

JP4

3-8.

3-5
