Mechanical Dimensions

Figure 3-6

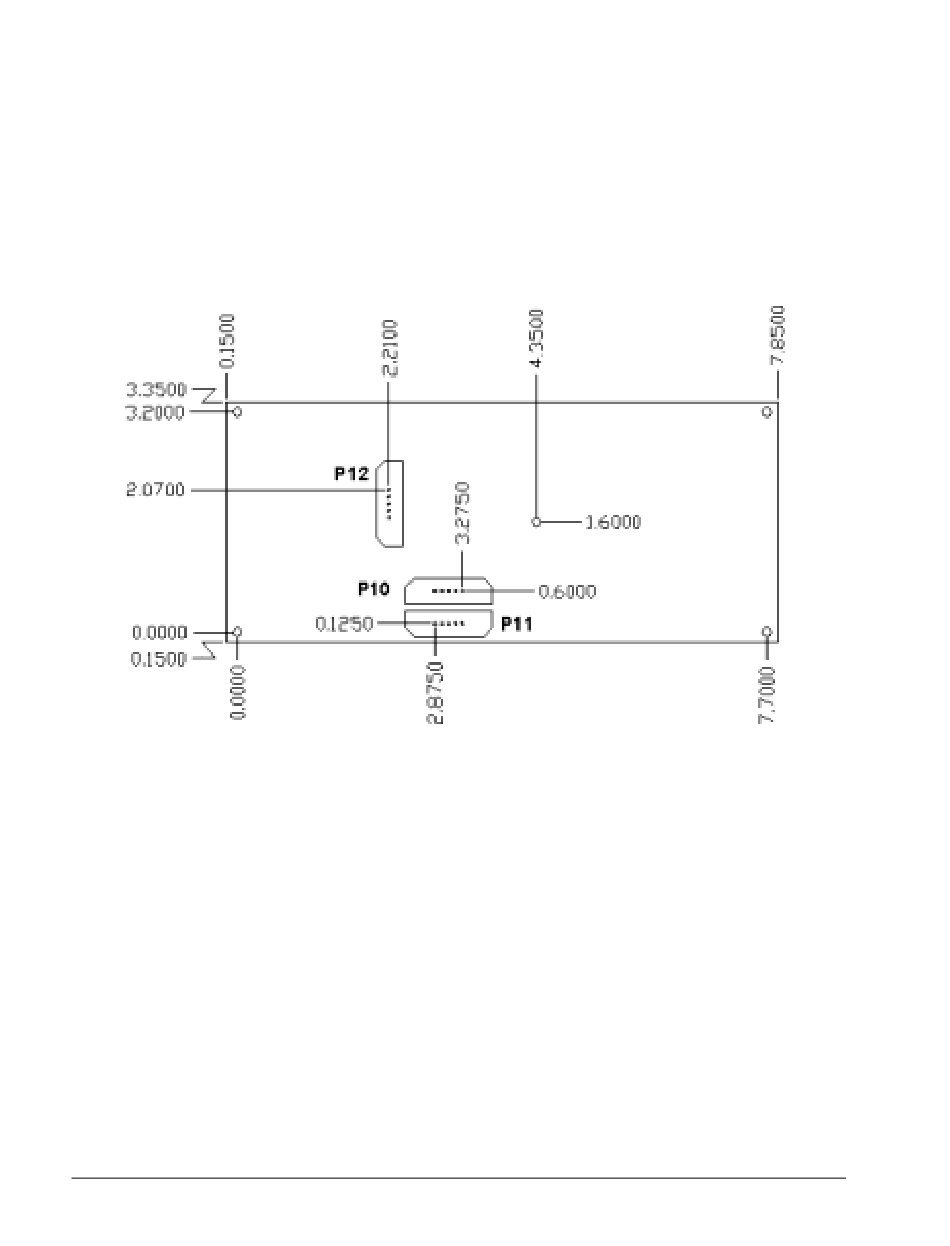

shows the dimensions of the board and the location MICTOR
connectors (
P10
Figure 3-6. Mechanical Dimensions
3-20
,
,
).
P11
P12
ADSP-2191 EZ-KIT Lite Evaluation System Manual
