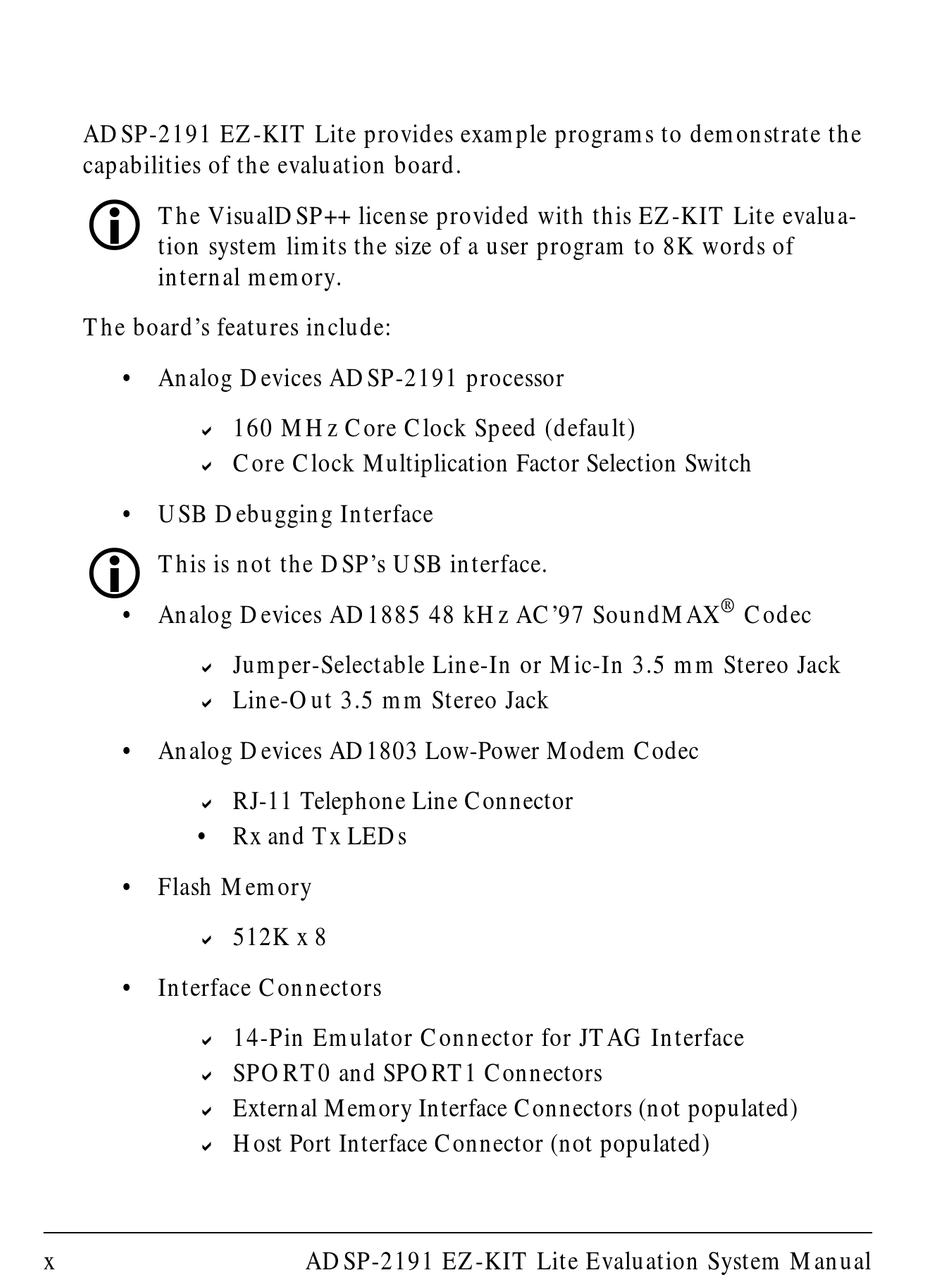

ADSP-2191 EZ-KIT Lite provides example programs to demonstrate the
capabilities of the evaluation board.
!
The VisualDSP++ license provided with this EZ-KIT Lite evalua-
tion system limits the size of a user program to 8K words of
internal memory.
The board's features include:
• Analog Devices ADSP-2191 processor
"
"
• USB Debugging Interface
!
This is not the DSP's USB interface.
• Analog Devices AD1885 48 kHz AC'97 SoundMAX
"
"
• Analog Devices AD1803 Low-Power Modem Codec
"
• Rx and Tx LEDs
• Flash Memory
"
• Interface Connectors
"
"
"
"
x
160 MHz Core Clock Speed (default)
Core Clock Multiplication Factor Selection Switch
Jumper-Selectable Line-In or Mic-In 3.5 mm Stereo Jack
Line-Out 3.5 mm Stereo Jack
RJ-11 Telephone Line Connector
512K x 8
14-Pin Emulator Connector for JTAG Interface
SPORT0 and SPORT1 Connectors
External Memory Interface Connectors (not populated)
Host Port Interface Connector (not populated)
