LEDs and Push Buttons
This section describes the functionality of the LEDs and push buttons.
Figure 3-4
shows the locations of the LEDs and push buttons.

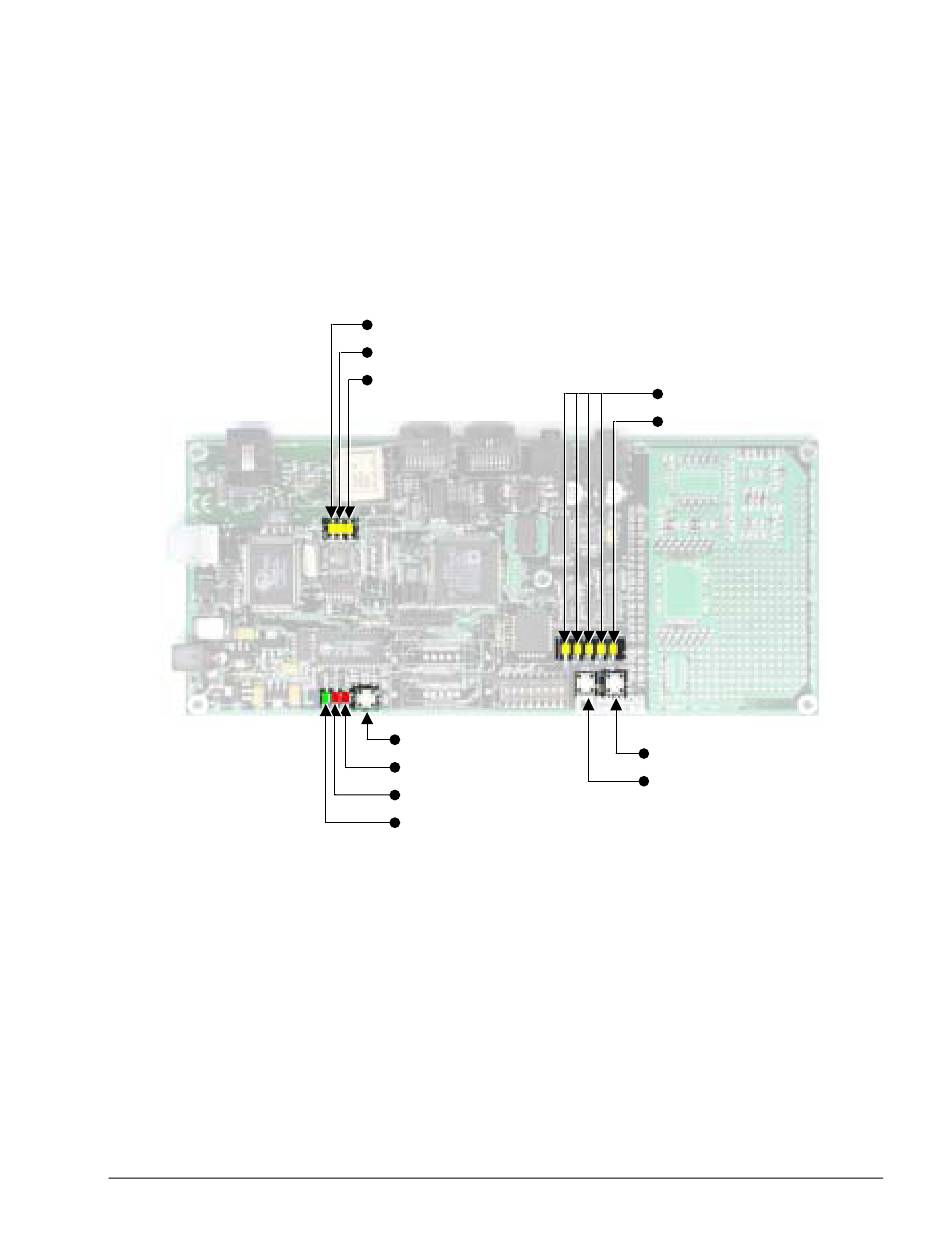

Figure 3-4. LED and Push Button Locations
Power LED (LED1)
When
is lit (green), power is being properly supplied to the board.
LED1
ADSP-2191 EZ-KIT Lite Evaluation System Manual
EZ-KIT Lite Hardware Reference
TX (LED4)
RX (LED5)
Phone (LED6)
Reset PB (SW1)
Reset LED (LED2)
DSP Reset LED (LED3)
Power LED (LED1)
PF3-0 (LED11-8)
USB Monitor (LED7)
PF5 (SW2)
PF4 (SW3)
