ALERTS

The iDash 1.8 allows users to configure
alerts notifying the operator that a
parameter has exceeded its set limit.
All alerts can be disabled/enabled and
can be set to go off for a maximum or
a minimum value. See Figure 9-1, C.
After an alert limit is tripped, a banner
will appear, displaying a large banner
with the parameter alert name for 3
seconds. See Figure 9-1, D.
If the alert limit continues to be
exceeded for displayed parameters,
the gauge will blink red (see Figure
9-1, E). If the alert limit continues to
be exceeded for background alerts,
a small banner in the top left corner
will appear and it will cycle through
each alert for ~1 second (if there is
more than one background alert limit
exceeded).
All alerts must be configured
for each individual iDash 1.8.
9.1 Displayed Gauge
Alerts
In the Displayed "Alerts" menu, the
parameter list will be the same as the
Gauge Selection menu. To change the
parameters of the Displayed "Alerts,"
the parameters must be changed from
the Gauge Selection menu. See
"Parameter Selection" on page
30 for directions.
If a parameter is already
enabled and set up as a background
alert, its settings will transfer to a
displayed gauge alert.
To enable and configure gauge
alerts:
1.
Select "Alerts" from the main
"MENU." See Figure 9-1, A.
2.
Select a "Field #" with the
parameter of interest.
40
97654 v.7
See Figure 9-1, A.
3.
Select "Alert High Enable" and/or
"Alert Low Enable" to turn "On" or
"Off" the alert. See Figure 9-1, B & C.
4.
Select "Alert High" and/or "Alert
Low" to adjust the alert activation
point value. See Figure 9-1, C.
5.
Scroll UP or DOWN to adjust the
activation point.
6.
Hold SELECT to save the value and
return to the Gauge Screen or return
to the Displayed "Alerts" menu to
configure other alerts.

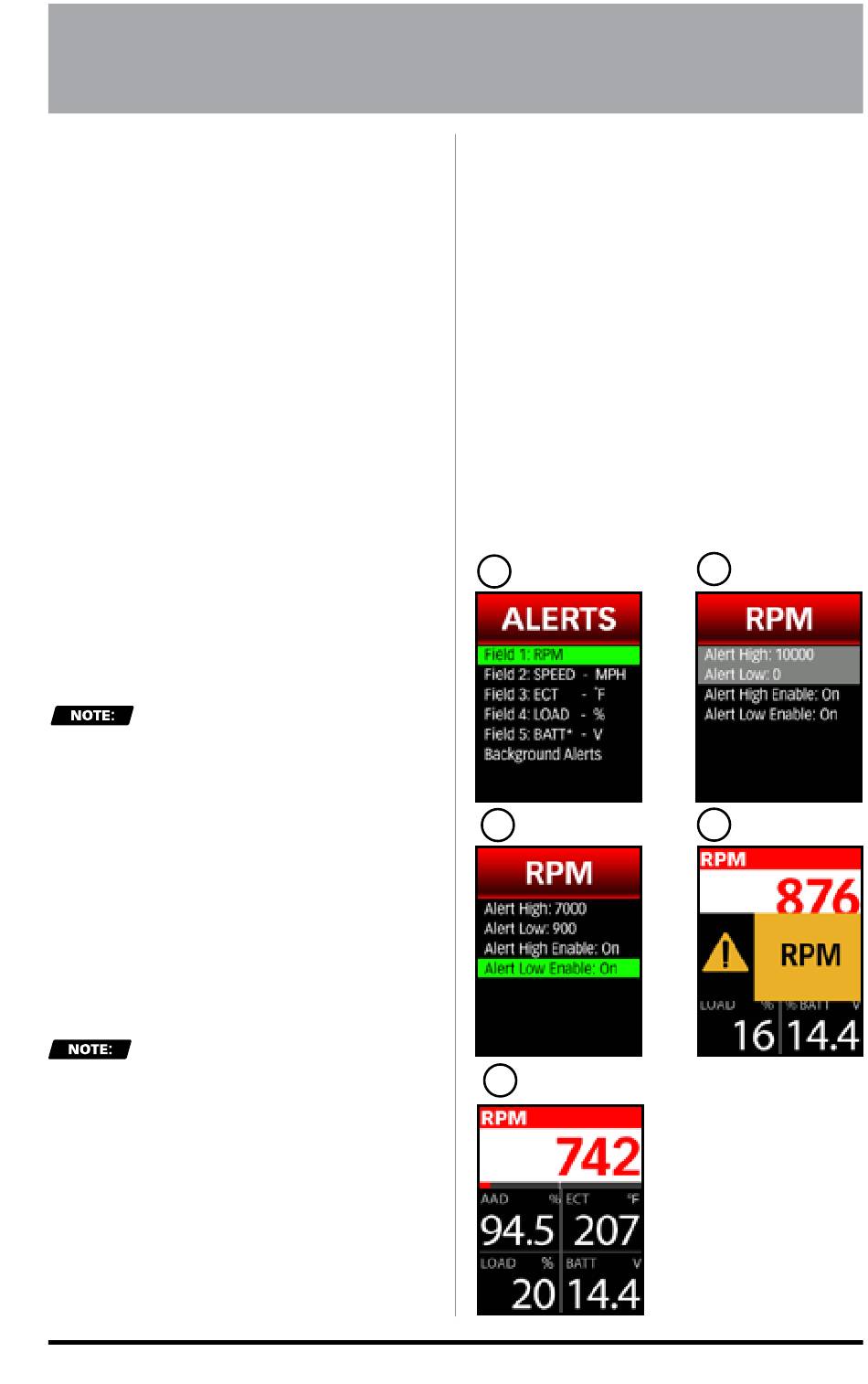

Figure 9-1
