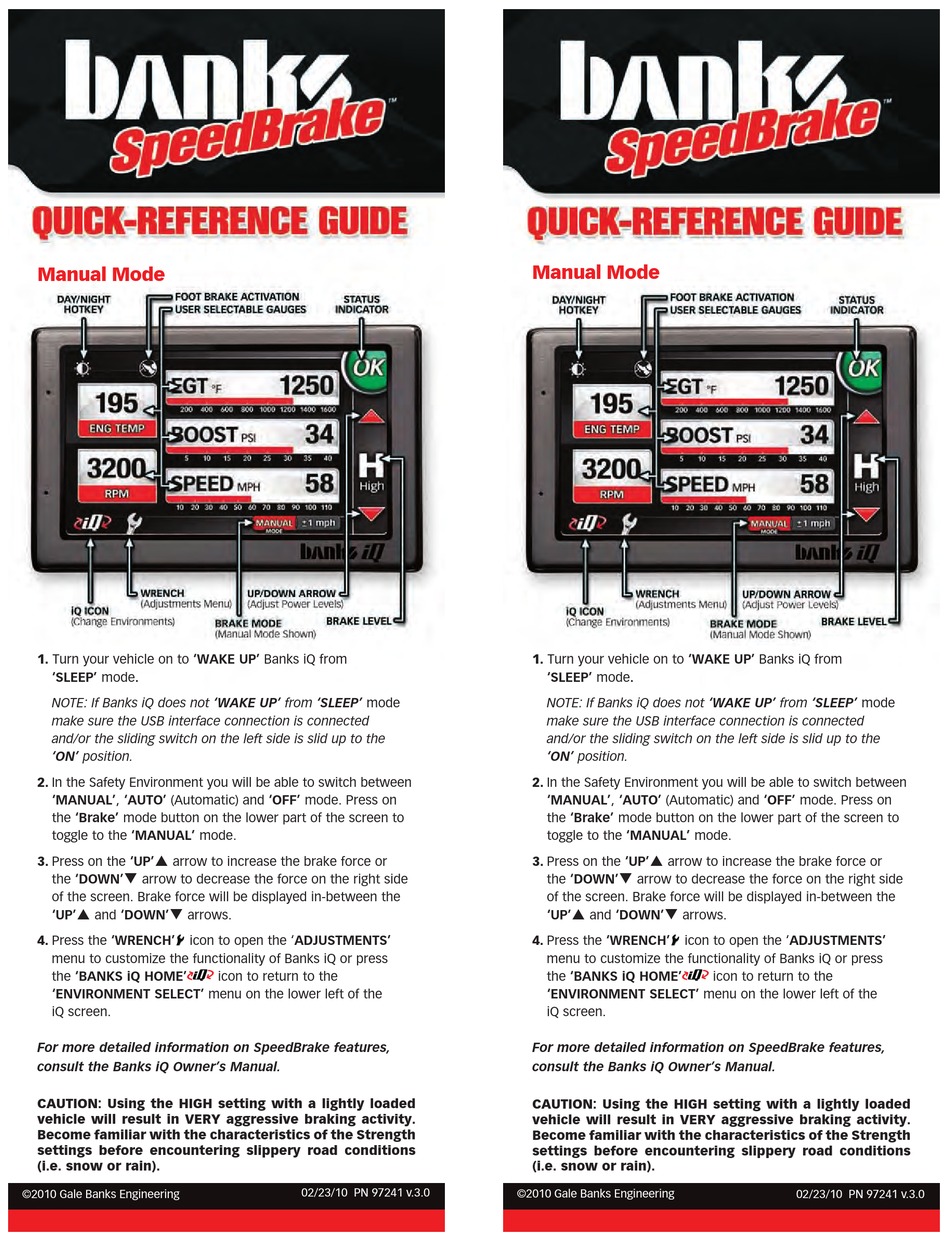

Manual Mode
1. Turn your vehicle on to 'WAKE UP' Banks iQ from
'SLEEP' mode.
Note: If Banks iQ does not 'WAKE UP' from 'SLEEP' mode
make sure the USB interface connection is connected
and/or the sliding switch on the left side is slid up to the
'ON' position.
2. In the Safety Environment you will be able to switch between
'MANUAL', 'AUTO' (Automatic) and 'OFF' mode. Press on
the 'Brake' mode button on the lower part of the screen to
toggle to the 'MANUAL' mode.
p
3. Press on the 'UP'
arrow to increase the brake force or
q
the 'DOWN'
arrow to decrease the force on the right side
of the screen. Brake force will be displayed in-between the
p
q
'UP'
and 'DOWN'
arrows.
4. Press the 'WRENCH'
icon to open the 'ADjUSTMENTS'
menu to customize the functionality of Banks iQ or press
the 'BANKS iQ HOME'
'ENviRONMENT SELECT' menu on the lower left of the
iQ screen.
For more detailed information on SpeedBrake features,
consult the Banks iQ Owner's Manual.
Caution: using the HiGH setting with a lightly loaded
vehicle will result in VERY aggressive braking activity.
Become familiar with the characteristics of the Strength
settings before encountering slippery road conditions
(i.e. snow or rain).
