Advanced B-Bus Network - Multiple Idash 1.8 - banks iDash 1.8 DataMonster Owner's Manual

MOUNTING AND CONNECTING THE
IDASH,
CONTINUED

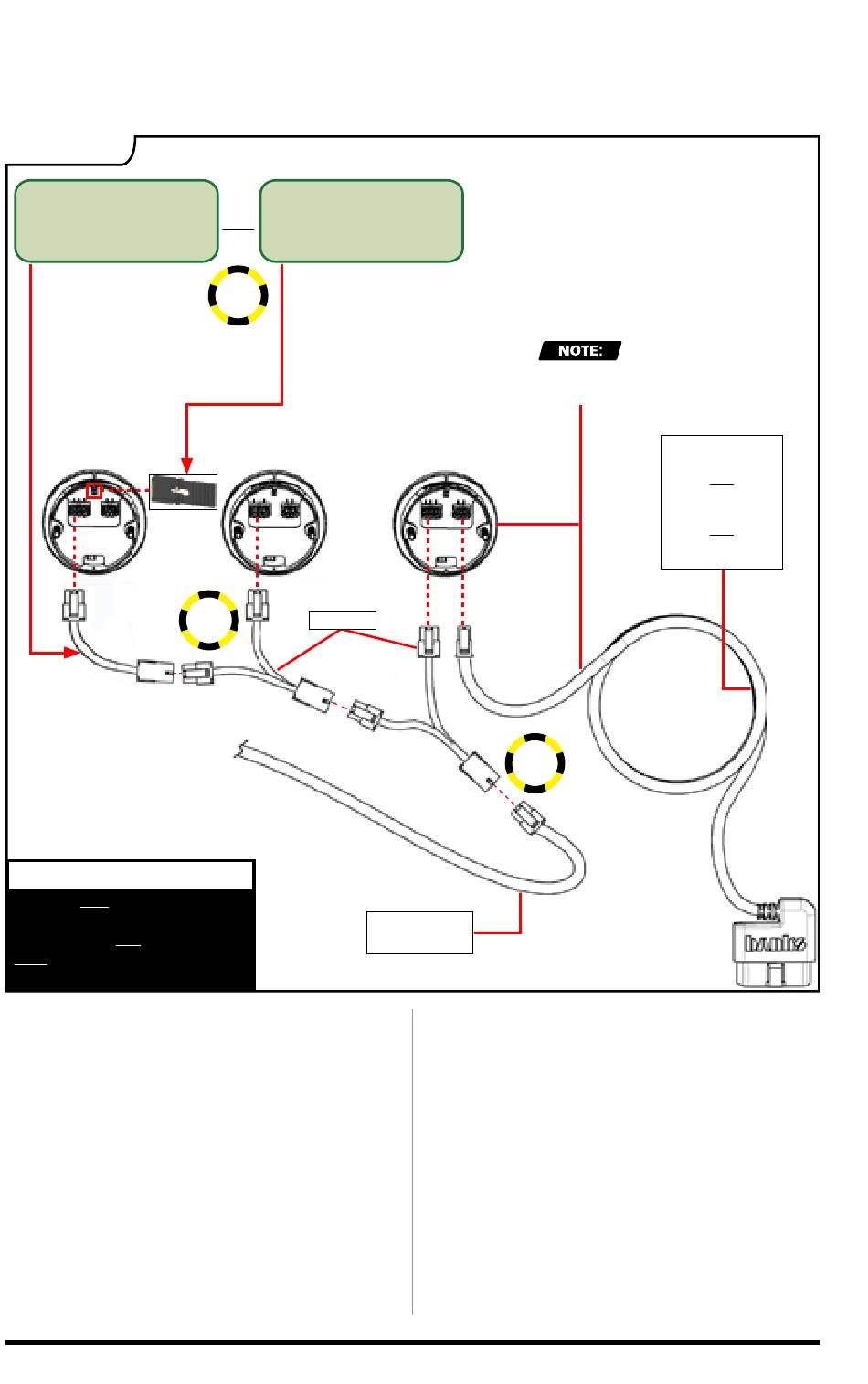

Figure 2-10
In-Cab
Terminator
(HW Rev 1 only)
Secondary
FIREWALL
NOTICE:
Only use one In-Cab Term. for
iDash 1.8 Hardware Rev 1
OR
one Jumper Block for iDash
1.8 Hardware Rev 2
2.7 Advanced B-Bus
Network - Multiple iDash
1.8
Up to three (3) additional iDash
1.8's can be added to the network;
maximum of four iDash 1.8 units.
Each additional iDash 1.8 requires a
Y-Cable. See Figure 2-11.
The iDash 1.8 that has the OBD-II cable
or aftermarket ECU harness plugged into
it is referred to as the primary iDash 1.8.
Terminator Jumper
OR
(HW Rev 2 only)
Step
A
Secondary
Step
Y-Cable
B
Primary
Step
C
B-Bus Starter
Cable
Only the primary iDash 1.8 is capable of
some features, such as:
• Vehicle Diagnostics (Reading/Clearing
Codes and Emissions Readiness)
• Setting wake-up sensitivity
• Data logging
• Speed correction settings
• More
OBD-II CONNECTION DETERMINES
PRIMARY iDASH.
OBDII Cable
(Standard)
OBDII Cable
(Banks Bus 1)
Aftermarket
ECU Harness
97654 v.7
OR
OR
17
