MOUNTING & CONNECTING THE IDASH
(CONTINUED)
Ford 6.0L Power Stroke
Applications
For any OBDII Cable for the Ford 6.0L, a
connection has to be made to the fuse
box (Fuse #22) using a fuse tap.
1.
Remove the panel to reveal the fuse
panel below the steering wheel and
remove Fuse #22. See Figure 2-8.

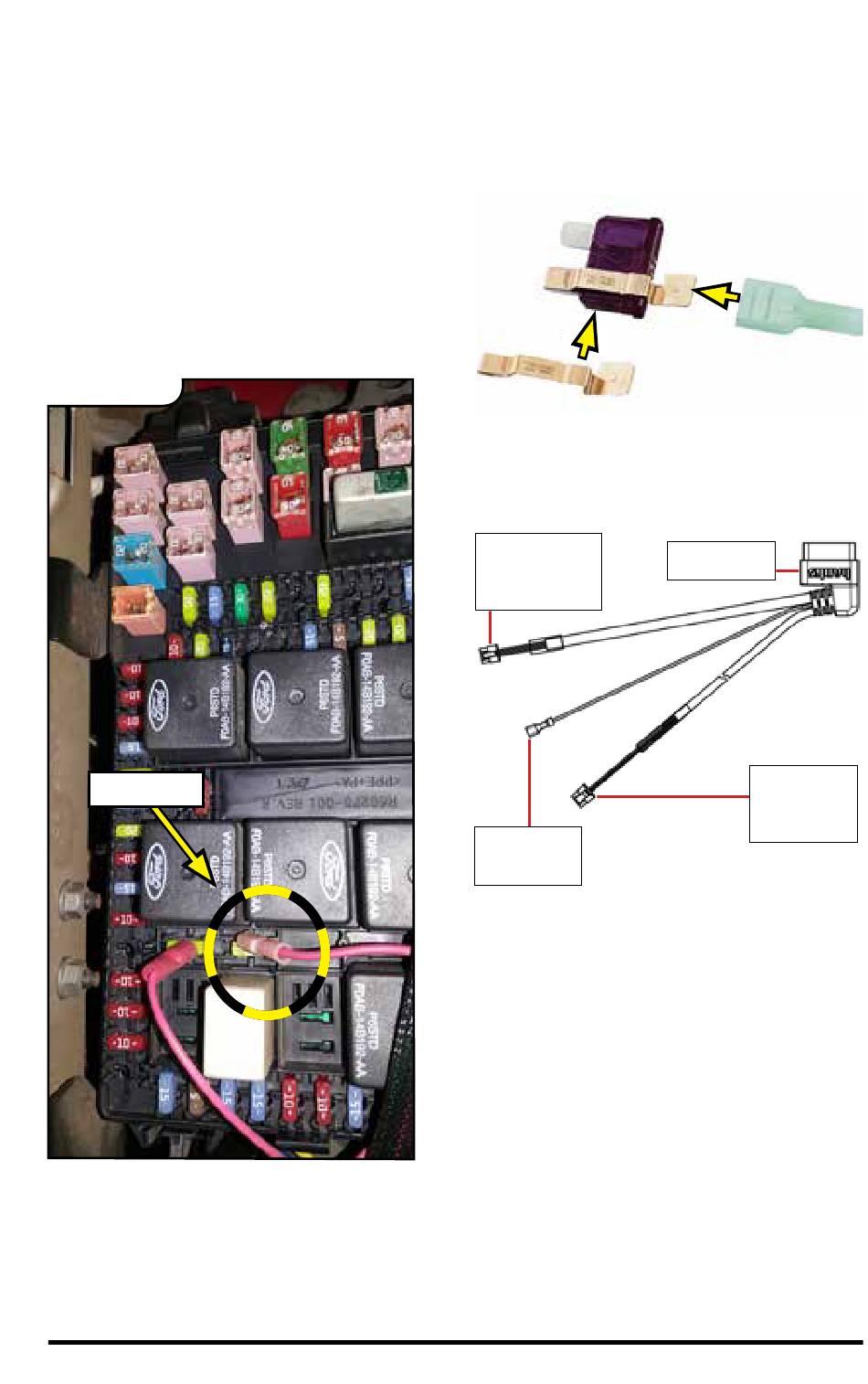

FIGURE 2-8
FUSE #22
14
97654 v.7
2.
Apply the provided fuse tap before
reinstalling. See Figure 2-7.
3.
Route the female red terminal
connector to the fuse tap. Figure 2-6
8-Pin
Connector to
Banks Bus 1
Products
Fuse Tap
Connection
to Fuse #22
For the operation of the Six Gun,
Economind, and Speed Brake refer
to "11.3 Six-Gun & EconoMind
Tuner" on page 47, "11.4
Banks SpeedBrake" on page
48, "11.5 SpeedBrake & Tuner
Auto Switching (iDash 1.8
Banks Bus 1 ONLY)" on page
52.
